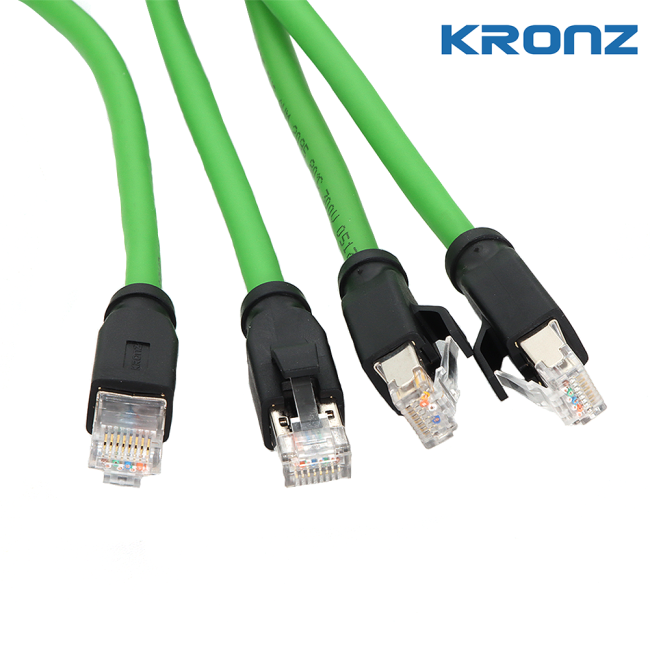

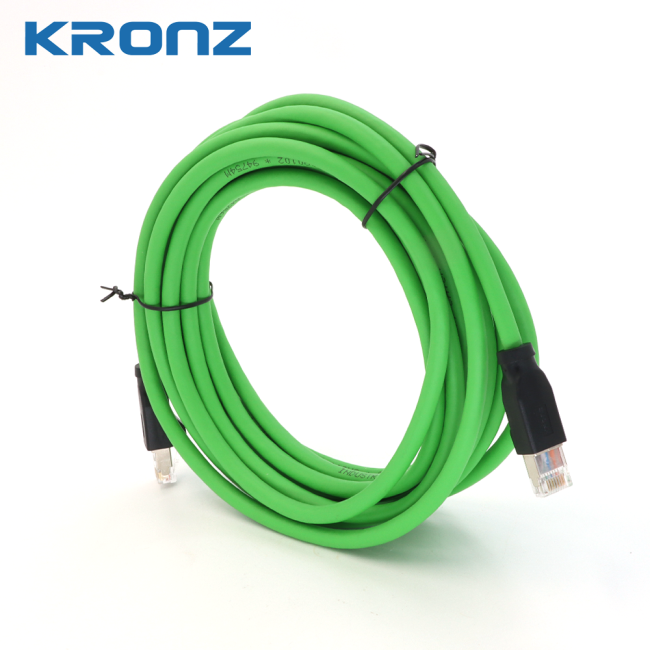

RJ45 Connector Dual Shielded 24AWG Waterproof IP20 RJ45 Ethernet Connector
Price:
Negotiable
MOQ:
80
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
RJ45 Connector Dual Shielded 24AWG Waterproof IP20 RJ45 Ethernet Connector
Product Specifications
| Seal material | FPM/FKM |
| Material of grip body | TPU, black |
| Rated current | 1.5A |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Voltage | 48V |
| Thread type | RJ45 |
| Pollution degree | 3 |
Product Description
This high-performance RJ45 connector features dual shielding and waterproof IP20 rating, making it ideal for demanding industrial applications. With a mating cycle rating exceeding 100 connections, it maintains reliable performance in high-traffic environments like data centers.
Technical Specifications
| Thread type | RJ45 |
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature range | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP20 |
Pin Configuration
| Pin assignment | Wire color | PIN | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1 = YE 2 = OR 3 = WH 6 = BU |
4PIN | 1.5A | 48V | 2×2×0.25, shielded (2×2×24AWG) Blueish green, PVC, OD=6.5 |
Straight | 2M | RJ45S-2/E30K |
Packaging & Shipping
Product Packaging:
- 80 pcs RJ45 connectors per carton
- Each connector is individually packaged
- Packaging material is eco-friendly and recyclable
Shipping Information:
- Ships within 5-8 business days
- Shipping options include standard and expedited
- Shipping rates calculated at checkout based on location and weight
