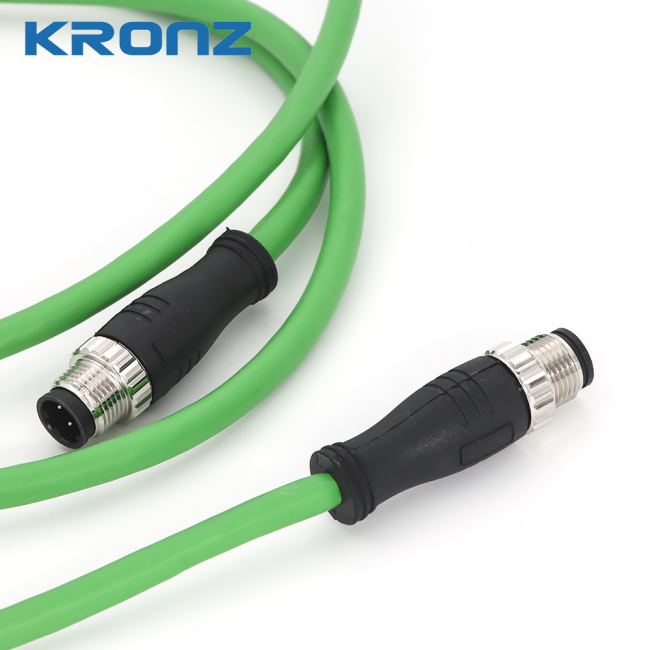

M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2
Price:
Negotiable
MOQ:
50
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description
M12 LAN Cable Connector 2×2×0.14, Shielded 2×2×26AWG Blueish Green, PUR, Drag Chain, OD=6.2
Product Attributes
| Attribute | Value |
|---|---|
| Contact surface material | Brass, Gold-plated |
| Insulation resistance | ≥100MΩ |
| Wire | 2 x 2 x 24 AWG |
| Code | D |
| Shield | Yes |
| Cable | 2 m |
| Cable outlet | Straight |
Product Description
Reliable M12 Ethernet Connector - Shielded 4/8 pin cable, pre-assembled for quick installation, providing D/A/X coding for efficient and secure networking.
Technical Specifications
| Standard | IEC 61076-2-101 |
|---|---|
| Contact nut material | Brass, nickel-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Pin Assignment & Cable Details
| Pin assignment | Wire color | Coding | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
|---|---|---|---|---|---|---|---|---|
 |
1 = WH/OR(+tx) 2 = WH/GH(+rx) 3 = OR(-tx) 4 = GN(-rx) |
D | 1.5A | 60V | 2×2×0.14,shielded (2×2×26AWG) Blueish green, PUR, drag chain OD=6.2 | Straight | 5M | M1204DM-5-M1204DM/E331 |
