RJ45 Connetcor Field Termination Plug Shielded Tolless Cat.6/6a/7 RJ45 Plug
Price:
Negotiable
MOQ:
50
Delivery Time:
5-8 working days
Brand:
KRONZ
Product Description

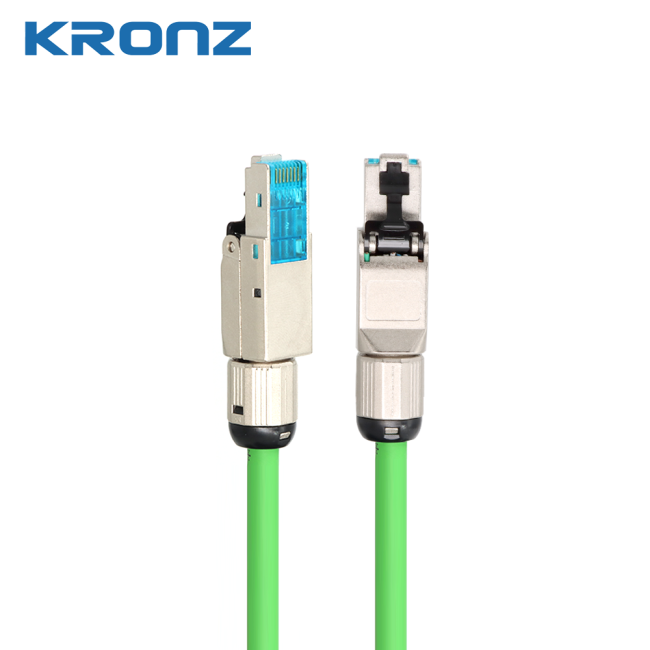

RJ45 Connector Field Termination Plug Shielded Toolless Cat.6/6a/7 RJ45 Plug
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | RJ45 Plug |
| Description | Cat.6A field plug STP toolless type |
| Body | Zinc-alloy die-casting with nickel-plated |
| Contact Bracket | PC,94V-2 |
| PCB Material | UL 94V-0 |
| Cap | PC UL 94V-2 |
| Mating Cycles | 750 min. |
| Insertion Force | 30N Max. |
Product Overview
This series of connector is specially designed for field assembly with solid installation cables. Its innovative design features built-in PCB layout and toolless operation, enabling quick on-site installation in approximately 2 minutes without special tools. Suitable for transmission up to 10 Gigabit Ethernet, this cost-effective solution is popular among installers for installation, repairs, and maintenance applications.
Key Features
- Available in Cat.6/6A/7 with full shielding
- Compliant with ANSI/TIA/EIA 568C.2-1, ISO/IEC 11801, EN 50173 standards
- Supports PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3b) up to 100 watts
- Built-in PCB for excellent performance and low attenuation
- Color-coded IDC strips according to EIA/TIA 568 A & B standards
- 360° shield coverage with screwable metal boot for secure cable fixation
- Compatible with 23-24 AWG stranded and solid network cables (copper wires, round type)
- Toolless design eliminates need for crimping tools
- Reusable design ideal for DIY LAN cable connections
- Functionality verified by TIA standard reliability testing
- FLUKE Channel Link tested and verified
Technical Specifications
| Body | Zinc-alloy die-casting with Nickel-plated |
| Contact Bracket | PC,UL94V-2 |
| PCB Material | FR-4, UL 94V-0 |
| Contact Material | Phosphor bronze with Nickel-plated |
| Contact Finishing | 15u gold-plated on contact surface |
| IDC Terminal | Phosphor bronze with Tin-plated |
| Cap | PC,UL94V-2, with 568A&B labeling sticker |
| Operating Temperature | -10°C to +60°C (ISO/IEC 11801, ANSI/TIA 568C.2) |
| Storage Temperature | -40°C to +60°C |
| Mating Cycles (with RJ45 jack) | 750 min. (ISO/IEC 11801, IEC 60603-7-5) |
| Insertion Force | 30N Max. (IEC 60603-7-5) |
| Retention strength | 7.7 kg between jack and plug |
| Clamp | >200 acc. to ISO/IEC 11801, IEC 60603-7-5 |
