BN Wire Color M12 Connector For Harsh Environments Ambient Temperature -25- 85C Brass Contact Nut Material
The M12 Male Connector is a high-quality A code connector designed for reliable connections in various industrial applications. With a straight cable outlet, this M12 Connector ensures easy installation and secure connections. It is suitable for use in environments with an ambient temperature range of -25 to +85°C, making it ideal for a wide range of industrial settings.
| Attribute | Value |
|---|---|
| Ambient temperature | -25~+85°C |
| Standard | IEC 61076-2-101 |
| Contact surface material | Brass, Gold-plated |
| Rated current | 2A/1.5A/0.5A |
| Degree of protection | IP67 |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Coding | D/A/X |
- Product Name: Connector M12
- Rated current: 2A/1.5A/0.5A
- Pin: 4/8
- Standard: IEC 61076-2-101
- Cable length: 2M/5M/10M
- Housing material: TPU, Black

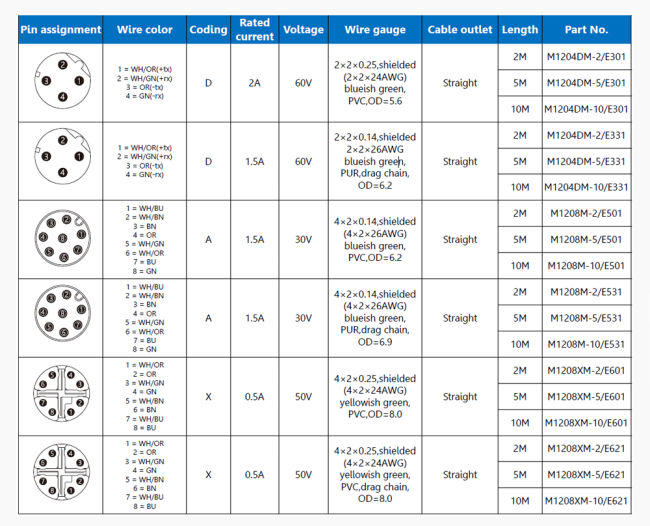

| Parameter | Value |
|---|---|
| Cable length | 2M/5M/10M |
| Wire color | 1=BN 2=WH/GN 3=OR 4=GN |
| Insulation resistance | ≥100MΩ |
| Coding | D/A/X |
| Pollution degree | 3 |
| Mating cycles | >100 |
| Rated current | 2A/1.5A/0.5A |
| Ambient temperature | -25~+85°C |
| Cable outlet | Straight |
| Voltage | 60V/30V/50V |
The M12 Angled Cable Connector is a versatile and reliable product suitable for various industrial scenarios. With CE certification and made in Guangdong, China, it meets international standards for quality and performance.
Available with minimum order quantity of 50 pieces and negotiable pricing, the connector is suitable for both small and large-scale projects. The contact carrier material is PA in black color, ensuring durability and reliability in pollution degree 3 environments.
Our product comes with comprehensive technical support for installation, troubleshooting, and maintenance. Our expert team is available to provide guidance on compatibility, wiring configurations, and device setup to ensure optimal performance.
Each M12 Connector is carefully packaged in protective plastic casing within sturdy cardboard boxes for secure transportation. We partner with reliable courier services for timely delivery, with tracking numbers provided for shipment monitoring.
