CMOS Laser Photoelectric Sensors Cable Type RedLED Light Diode Waverlength 655mm
| Attribute | Value |
|---|---|
| Output Signal | Switching Output PNP/NPN |
| Connection Type | Cable |
| Detection Range | 30±4mm |
| Full Scale | 8mm |
| Operating Temperature | -10°C - 45°C |
| Response Time | High-speed Mode: max.5ms |
| Application | Industrial Automation |
| IP Rating | IP67 |
The housing material of these Photoelectric Sensors is constructed with high-quality Stainless Steel, ensuring durability and protection against harsh environments. This robust design makes them suitable for use in various industrial settings, providing long-lasting reliability.
A CMOS laser displacement photoelectric sensor functions like a mini laser camera that can measure object distance without physical contact. It emits a thin laser beam onto a surface and captures the reflection using a CMOS image sensor (similar to digital cameras). By analyzing the laser spot position on the sensor, it precisely calculates the object's distance or height.
The term "photoelectric" refers to its operation principle: using light (photo) to trigger an electronic (electric) response.
| Cable Type | 2CH | KD50-30N |
| Output Signal | Switching output: NPN (-N) |
| Detection Range | 30±4mm |
| Full Scale(F.S.) | 8mm |
| Light Source | Red Laser diode (wavelength 655nm) |
| IEC/JIS Rating(FDA Rating) | Class 2(Class Ⅱ) |
| Sampling Period | 500(250mm:750)/1000/1500/2000μs |

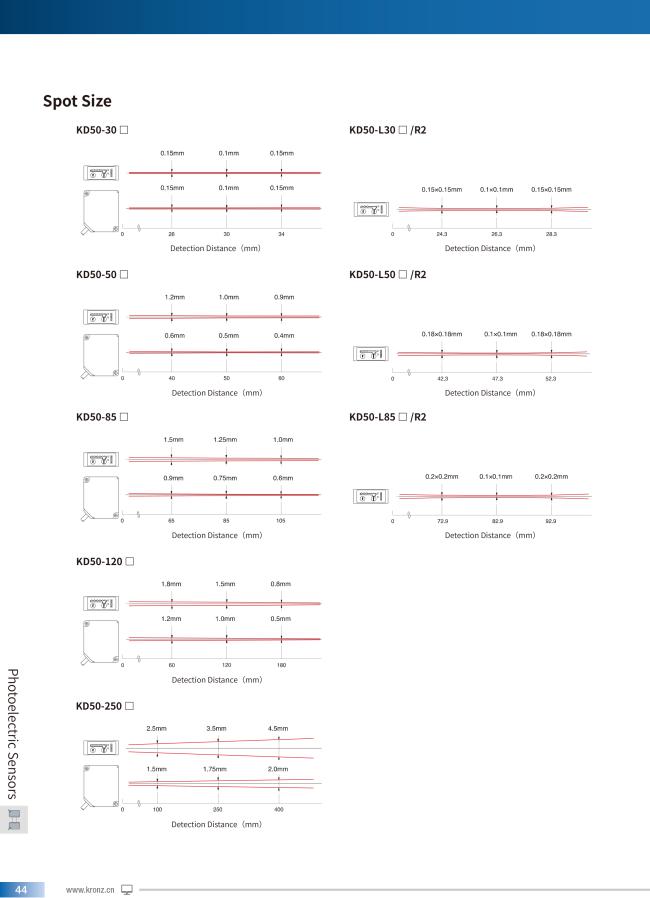

| Spot Size (max.) | Near Range: 0.15x0.15mm Center Range: 0.1x0.1mm Far Range: 0.15x0.15mm |
| Linearity Accuracy | ±0.1%F.S. |
| Repeatability | High-speed Mode: 4μm Other Mode: 2μm |
| Temperature Drift | ±0.08%F.S./°C |
| Indicator | Distance indicator: 7 bar LED display; output indicator: ON state:orange Q1/Q2 indicator (orange) light |
| IP Rating | IP67 |
KRONZ LED Photoelectric Sensors are versatile devices suitable for various industrial applications. With a sensing distance ranging from 20mm to 300mm and rapid response time of 1ms, these sensors are ideal for warehouse automation systems, industrial machinery, and robotic applications.
- Robotic Z-Axis Feedback: Provides accurate height data to robotic arms for gripping, assembling, or machining tasks.
- Inline Thickness Monitoring: Monitors sheet metal, plastic film, or foil thickness during production to reduce defects and waste.
- Step/Flatness Measurement: Inspects surface steps or flatness on machined parts, such as metal housings or mold cavities.
- Weld Seam Height and Shape Inspection: Evaluates the consistency and integrity of weld beads.
