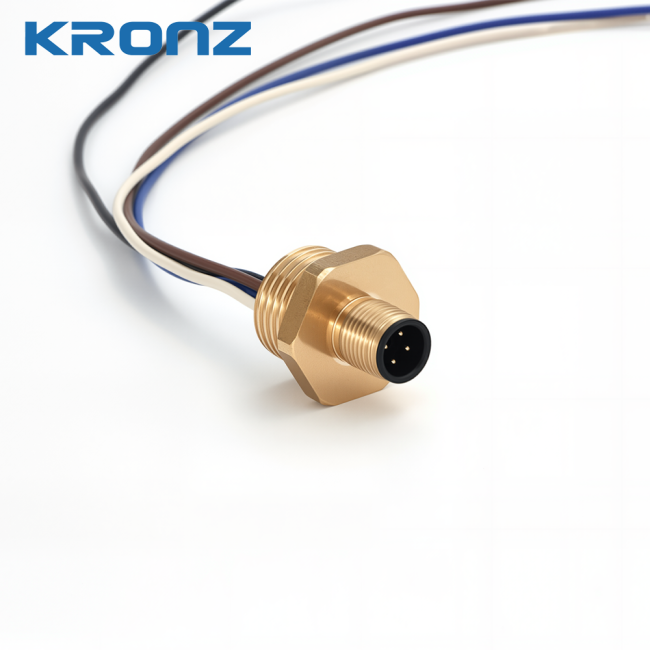

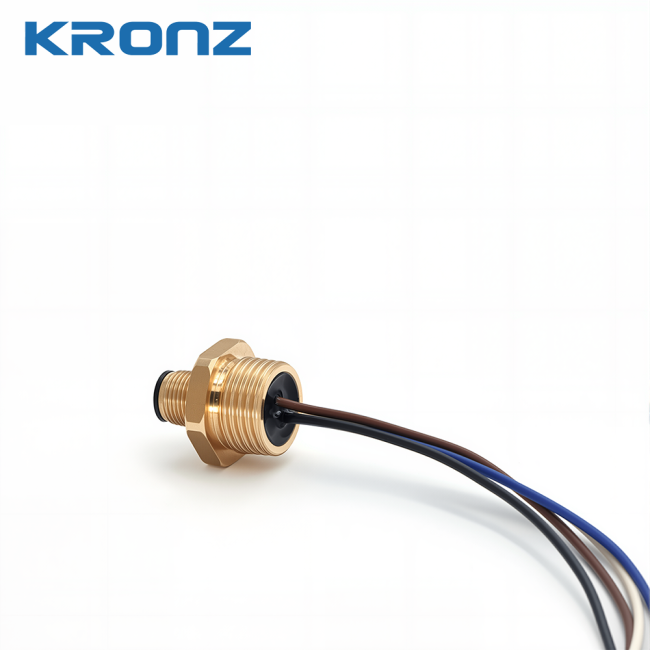

4-Pin M12 Male Connector 1/2" NPT Panel Mount 300V AC/DC Metal Receptacle Flange IP67
M12 to 1/2" NPT Male Receptacle Flange, 4-Pin, 300V AC/DC, Metal Panel Mount Circular Connector - IP67
Key Features:
-
Reliable Electrical Performance: Rated for 300V AC/DC with 4 pins. Gold-plated contacts ensure stable signal transmission, low resistance, and long-term connectivity.
-
M12 x 1 Male Threaded Coupling: Standard M12 interface provides a secure, screw-type connection with compatible female-coded cable connectors, preventing accidental disconnection.
-
Wide Temperature Range: Engineered to perform reliably in a broad range of industrial temperatures.
-
Time-Saving Design: The receptacle design allows for easy wiring and secure mounting before the mating connector is attached.

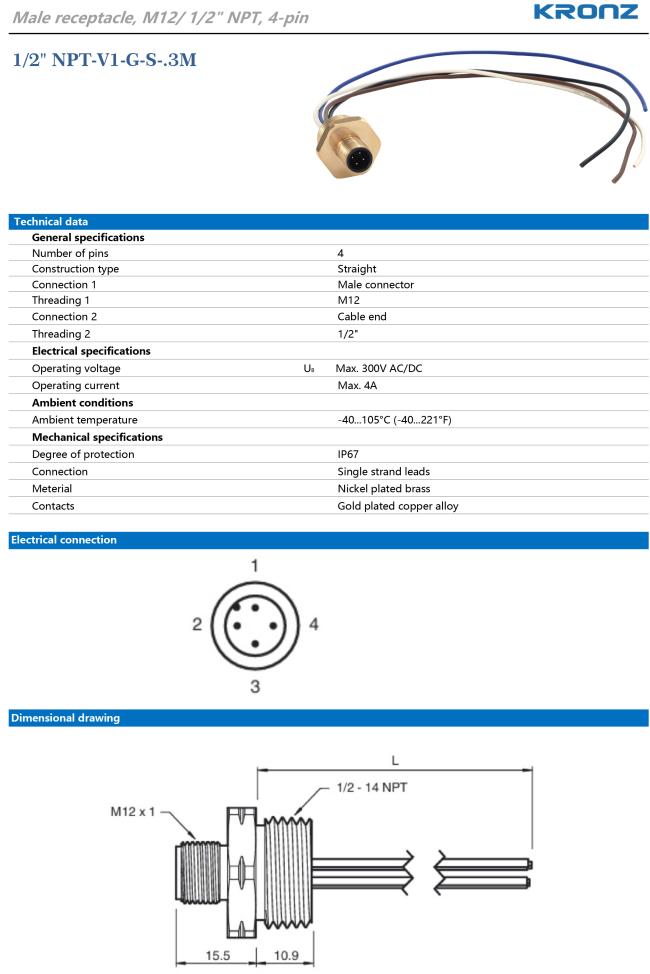

| Mechanical Specifications | |
| Sleeve connector | Polyamide (PA) |
| Cable cores | 4 x 0.34 mm2, 22 AWG |
| Length | 0.3 m |
| Note | 1/2" - 14 NPT installation thread |
