• ✓ 5-core high voltage coding, 630VAC ultra-high working voltage
• ✓ 12A high current carrying capacity
• ✓ IP67 waterproof and dustproof, suitable for extreme environments
• ✓ Gold plated contacts ensure reliable connection under high voltage

1. High voltage power supply expert
   630VAC ultra-high working voltage
   12A high current carrying capacity
   5-core design meets complex power supply requirements
   Excellent insulation performance
2. Top material configuration
   Contact: Alloy, copper zinc, gold plating (ensuring conductivity)
   Connector nut: alloy, copper zinc, nickel plating (corrosion-resistant)
   Contact carrier: PA black plastic (high temperature resistant)
   Clamping substrate: TPU black (high elasticity)
   Sealing material: FPM/FKM (chemical resistance)
3. Excellent protective performance
   IP67 waterproof and dustproof rating
   Completely dust-proof, can be immersed in water for a short period of time
   Working temperature: -25 ° C to+85 ° C
   Pollution level 3 (industrial environment)
4. Reliable mechanical performance
   Insulation resistance ≥ 100M Ω
   Contact resistance ≤ 5m Ω
   Mechanical lifespan>100 insertions and removals
   Stretch resistant and wear-resistant design

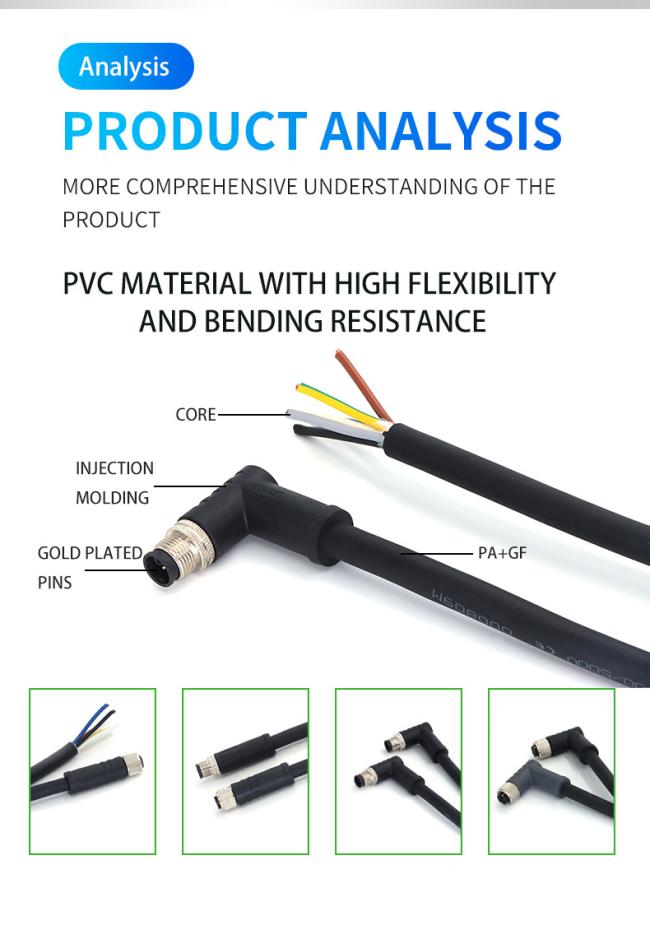

   High flexibility PVC cable
5. Quality Assurance System
   Compliant with IEC 61076-2-101 standard
   Factory direct sales, controllable quality
   Professional technical support
   Fast delivery service
   Improve after-sales service

The KRONZ M12 K-CODE 5-core straight pre cast connector is designed specifically for high-voltage power applications, supporting working voltages up to 630VAC and currents up to 12A. This product adopts a 5-core design and is suitable for applications such as high-voltage equipment, power systems, and high-power sensors. Compliant with the IEC 61076-2-101 international standard, providing safe and reliable high-voltage connection solutions.

Code type: K-CODE (High Voltage Power Code)
Pin quantity: 5 cores
Rated current: 12A
Working voltage: 630VAC
Cable specification: 5 × 1.5mm ² (5 × 16AWG) black PVC
Connector Type: Straight Male/Female
Protection level: IP67
Optional length: 2M/5M/10M or customized

• High voltage power supply system
• High power sensor connection
• High voltage testing equipment
• Power monitoring equipment
• Inverter power connection
• Servo drive power supply
• Industrial heating equipment
• High voltage lighting system
• New energy power system

• Support customization of any length: 2M/5M/10M or any length
• Cable material options: P00K (PVC black)/P01K (PUR black)

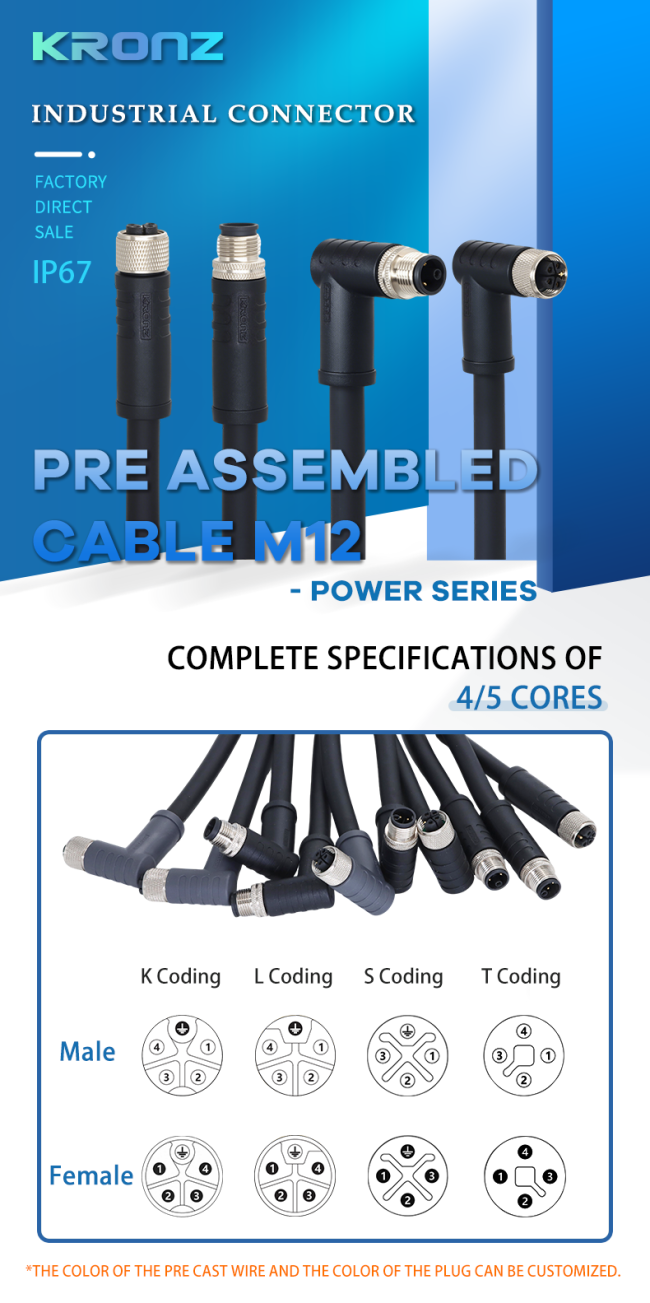

• Code system: T-CODE/K-CODE/S-CODE/L-CODE/L-CODE
• Model: Straight or Curved
• Interface: Male/Female
• Wire gauge: PVC.PUR
• Pre cast wire color can be customized
• Customized production based on customer drawings or samples
• Provide professional technical consultation
