KRONZ M12 Male Angled Pre-assembled Cable Connector - Power Series | IP67 Waterproof  |  T-coded |  4-CORE |  Precast 4x16AWG |  Black PVC |  63VDC|  2M/5M/10M

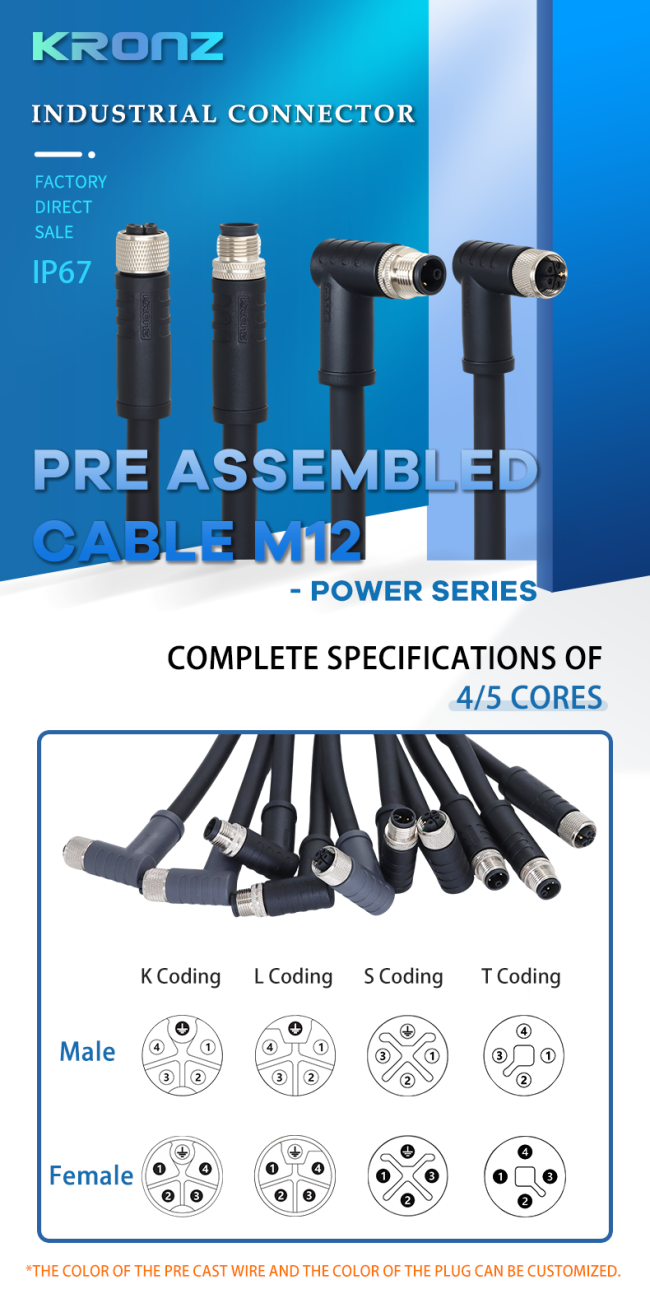

Product Specifications by Coding

Application Scenarios: DC sensor and actuator power connection (63VDC)
Number of Pins: 4 Pins
Rated Current/Voltage:12A / 63VDC
Wire Gauge: 4 x 1.5 mm² (Black PVC)
Wire Sequence Definition:
1 = Brown (BN)
2 = White (WH)
3 = Blue (BU)
4 = Black (BK)
Optional Lengths and Models:
2 meters: M1204TMA-2/P00K
5 meters: M1204TMA-5/P00K
10 meters: M1204TMA-10/P00K

Hero Section & Key Features

【Factory Direct Sales · Strength Guarantee】 KRONZ industrial-grade M12 connectors are designed for harsh industrial environments. Utilizing a pre-assembled process, they are plug-and-play, significantly reducing installation time.

IP67 Protection Rating: Excellent waterproof and dustproof performance, fearless of outdoor and humid environments.

Highly Flexible PVC Cable: Resistant to bending, cold and heat (-25°C ~ +85°C), adaptable to complex wiring needs.

Gold Plated Pins: Ensures stable signal transmission, resists oxidation, and has low contact resistance (≤ 5mΩ).

Rugged Housing: Injection molded from PA+GF material, combined with nickel-plated metal nuts, shock-resistant and tensile-resistant.

General Technical Data

Why Choose KRONZ?

Stable Performance: Precision manufacturing ensures industrial-grade connection stability.

Tensile and Wear-resistant: High-quality PVC outer sheath, suitable for cable chains and mobile equipment.

Technical Support: Professional team provides selection and installation guidance.

Quality Assurance: Rigorous factory testing, gold-plated contacts for oxidation resistance.

Fast Delivery: Factory direct sales, ample inventory, and fast shipping.

Intimate Service: Customization services available (wire length and color can be customized).

This connector is specifically designed for demanding industrial applications where reliability, durability, and environmental protection are critical. The pre-molded construction ensures consistent performance in harsh conditions while simplifying installation and maintenance.

FAQ & Customization

Q: Can the cable color be customized?

A: Yes, the color of the precast cable and the plug can be customized according to your requirements (please contact customer service).

Q: What are the standard lengths?

A: The standard lengths are 2 meters / 5 meters / 10 meters. If you need other lengths, we can customize any length for you.

Q: Do you have both angled and straight connectors?

A: This page mainly displays angled male connectors. If you need straight or other specifications (such as female connectors), please contact customer service for the complete product catalog.
