M12 connector 2M cable T-code IP67 protection used for industrial automation
Product models: M1204TM-2/P00K/M1204TM-5/P00K/M1204TM-10/P00K
Core selling points:
✓ 4-core power code, 12A high current carrying capacity
✓ IP67 waterproof and dustproof rating, suitable for harsh environments
✓ Gold plated contacts ensure stable signal transmission
✓ High flexibility PVC cable with long bending resistance and lifespan
| Standard | IEC 61076-2-101 |
| Contact Nut Material | Alloy, Brass, nickel-plated |
| Contact Surface Material | Alloy, Brass, gold-plated |
| Contact Carrier Material | Plastic, PA, black |
| Housing Material | Plastic, TPU, black |
| Seal Material | FPM/FKM |
| Insulation Resistance | ≥100MΩ |
| Contact Resistance | ≤5mΩ |
| Pollution Degree | 3 |
| Ambient Temperature | -25~+85℃ |
| Mating Cycles | >100 |
| Degree of Protection | IP67 |
Why choose KRONZ M12 T-CODE connector?
Stable performance

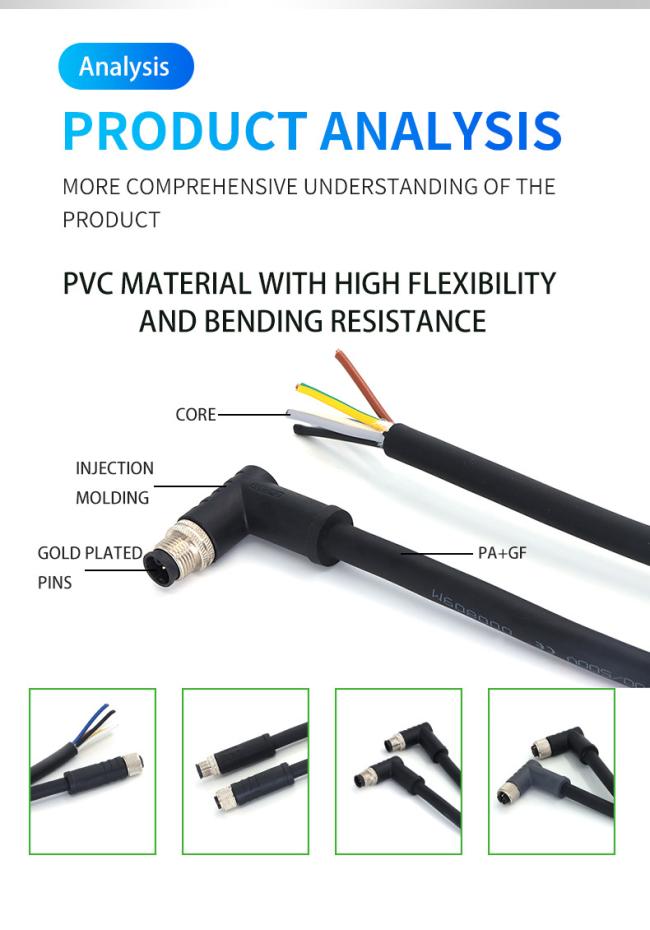

Gold plated contacts ensure low contact resistance and excellent conductivity
Copper core nickel plated connectors provide excellent oxidation resistance
Insulation resistance ≥ 100M Ω to ensure signal transmission quality
Excellent mechanical performance
High flexibility PVC cable material with small bending radius
Stretch resistant and wear-resistant design, suitable for frequent mobile applications
Injection molding process ensures connection reliability
IP67 protection level
Completely dust-proof, can be immersed in water for a short period of time
Suitable for harsh environments such as outdoor, humid, and dusty conditions
FPM/FKM sealing material, temperature resistance range -25 ° C to+85 ° C
Quality Assurance System
Compliant with IEC 61076-2-101 international standard
Contact resistance ≤ 5m Ω
Mechanical life cycle>100 insertions and removals
| Encoding type | T-CODE |
| Pin quantity | 4 cores |
| Rated current | 12A |
| Working voltage | 63VDC |
| Cable specification | 4 * 1.5mm ² (4 * 16AWG) black PVC |
| Connector type | Straight male/female optional |
| Protection level | IP67 |
| Optional length | 2M/5M/10M or customized |
- Industrial automation control system
- PLC module power connection
- Sensor and actuator power supply
- Robot control system
- Packaging machinery and equipment
- Food processing equipment (compliant with hygiene requirements)
- Logistics conveying system
| model | length | Specifications |
| M1204TM-2/P00K | 2M | 5-core T-CODE straight type |
| M1204TM-5/P00K | 5M | 5-core T-CODE straight type |
| M1204TM-10/P00K | 10M | 5-core T-CODE straight type |
- Support customization of any length: 2M/5M/10M or any length
- Cable material options: P00K (PVC black)/P01K (PUR black)
- Code system: T-CODE/K-CODE/S-CODE/L-CODE/L-CODE
- Model: Straight or Curved
- Interface: Male/Female
- Wire gauge: PVC.PUR
- Pre cast wire color can be customized
- Customized production based on customer drawings or samples
- Provide professional technical consultation
