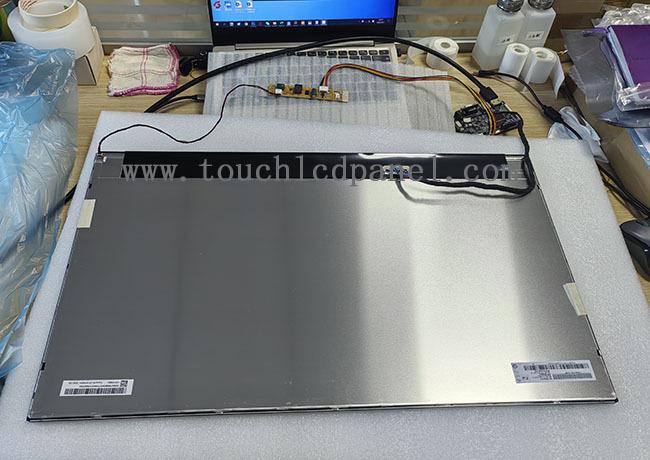

27 Inch AUO IPS LCD Panel P270HVN02.0 1920x1080 300 Nits
P270HVN02.0 is a 27 inch FHD color a-Si TFT-LCD Module. The display supports the FHD-1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit data input). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and this module doesn't contain a driver for backlight.
The LCD Panel utilizes In-Plane Switching (IPS) technology to deliver excellent color accuracy and wide viewing angles, making it ideal for applications that require precise image reproduction.
The electrical interface of this LCD panel is Dual Channel LVDS, providing a reliable connection for seamless data transmission between the panel and the device it is integrated with.
- Long LED Lifetime: 40,000 hours
- High Luminance: 300cd/㎡
- FHD Resolution: 1920 X 1080 Pixels
- Panel Type: IPS (IPS Display Panel)
- Electrical Interface: Dual Channel LVDS
- ESD (Electro Static Discharge): both contact discharge and air discharge supports ±15KV, class B
| Electrical Interface | Dual Channel LVDS |
| Power Consumption | 19.53 Watt |
| Operating Temperature | 0 ~ 50 °C |
| Contrast Ratio | 3000 |
| Luminance | 300cd/㎡ |
| Resolution | 1920 X 1080 Pixels |
| Backlight Unit | 4 Strings And 15pcs LED Of One String |
| Panel Type | IPS |
| Weight | 2180g |
| Physical Size | 613.6 (H) X 356.85 (V) X 10 (D)mm |
The AUO LCD Panel P270HVN02.0 is a versatile display solution suitable for digital signage, medical equipment, industrial displays, and other devices requiring a high-quality screen display panel.
With an active area of 597.6 x 336.15 mm, this LCD panel offers a spacious display area perfect for showcasing detailed content with clarity and precision. The energy-efficient design consumes only 19.53 watts of power during operation, making it a sustainable choice for eco-conscious consumers.
