10.1-inch PCAP Touchscreen Overlay with 10mm Anti-explosive Glass and ATEX Zone 1 and Zone 2 IECEx Zone 1 and Zone 2 Certification

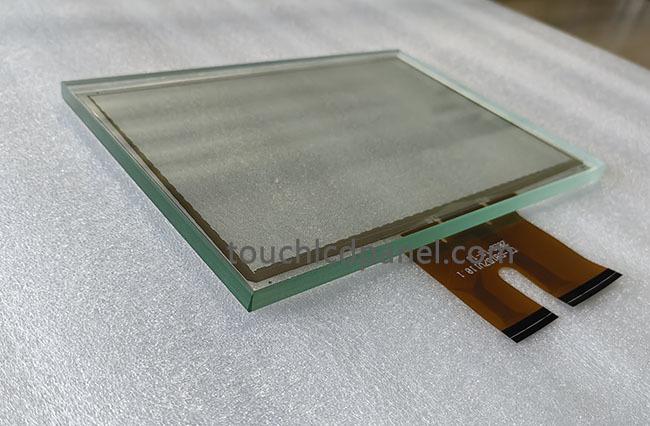

The LBCTP101090V1 is a 10.1'' PCAP touchscreen overlay, featuring a PCAP touch sensor optically bonded with anti-explosive glass, touch controller PCBA with USB/RS232/IIC interface, and USB cable. This plug-and-play solution is compatible with Windows and Android operating systems.
The overlay's durable 10mm glass thickness ensures long-lasting performance and impact protection, specifically designed for challenging industrial environments and hazardous locations.
With its explosion-proof rating, this product is certified for use in ATEX Zone 1 & 2 and IECEx Zone 1 & 2 environments, providing safety compliance in potentially explosive atmospheres.
The anti-explosive glass construction enhances safety and durability, offering reliable performance in high-risk conditions while minimizing potential hazards.
- Product Name: 10.1'' Explosion Proof Touch Glass
- Touch Technology: PCAP Touch
- Resolution: 1280x800 or 1920x1200 Pixels
- Glass Type: Explosion-proof
- Compatibility: Windows, Android, Linux
- Features: 10 Joules Touch Glass, Anti-explosive touch, IK10 touch glass
| Parameter | Specification |
|---|---|
| Size | 10.1'' |
| Model No. | LBCTP101090V1 |
| Resolution | 1920x1200; 1280x800 |
| Aspect Ratio | 16:10 |
| Glass Thickness | 10mm |
| IK Rating | IK10 |
| Layers | Front Glass + Touch Sensor |
| Touch Technology | Capacitive Touch, ITO Technology Touchscreen Sensor |
| Touch Controller | EETI |
| Glass Type | Explosion-proof |
| Response Time | ≤10ms |
| Transparency Rate | ≥85% |
| Compatibility | Windows, Android, Linux |
| Explosion Proof Rating | ATEX Zone 1 & 2, IECEx Zone 1 & 2 |
LB's Explosion Proof Touch Overlay (Model: LBCTP101090V1) features an EETI touch controller and capacitive touch technology for precise, responsive interactions. The 10 Joules touch glass provides enhanced safety, while the IK10 rating ensures reliability in harsh environments.
Ideal for industrial control panels in hazardous locations, this product is also suitable for public areas, rugged control panels, anti-vandal kiosks, and other demanding applications requiring explosion-proof touch solutions.
