15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
Price:
To Be Determined
MOQ:
100pcs
Delivery Time:
3~20 Working Days
Brand:
LB
Product Description

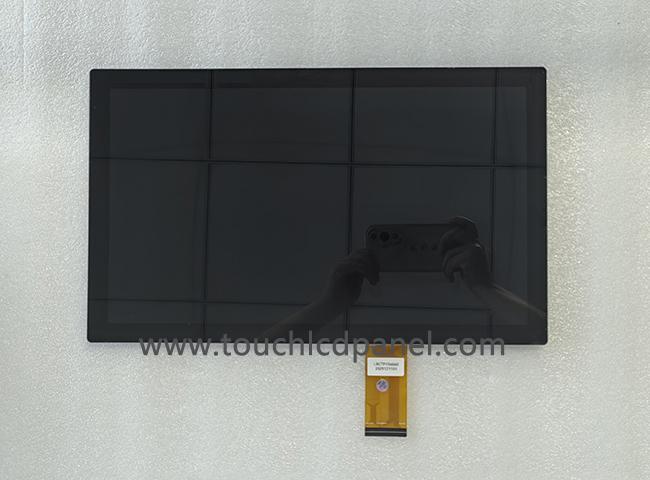

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment
Model No.: LBCTP1569880
Product Overview
This 15.6-inch PCAP Touchscreen Overlay features anti-glare tempered glass optically bonded to an ITO touch sensor glass, driven by an ILITEK2511 touch controller via USB interface. It supports multi-touch functionality with a fast 10ms response time and plug-and-play compatibility with Windows and Android systems.
The ILITEK 2511 touch controller enables accurate and smooth touch detection, supporting multiple simultaneous touch points. This transforms standard displays into multi-touch gesture screens, allowing intuitive interactions including pinch-to-zoom, swipe, rotate, and tap gestures.
Designed for user convenience and durability, this overlay features a slim profile and robust construction that provides reliable upgrades for existing monitors without compromising screen clarity or brightness.
Key Features
- Narrow Black Bezel: 16mm bezel on each side in black, designed for flush mounting applications
- Anti-glare Surface Treatment: Reduces environmental glare and improves viewing experience
- Glass-on-Glass Construction: Front glass on sensor glass for enhanced durability
- ILITEK Touch Controller: USB interface with plug-and-play functionality for Windows and Android
- Multi-touch Support: 10-point finger touch capability
- Fast Response: 10ms typical response time for smooth interactions
Technical Specifications
| Product Type | PCAP Touchscreen Overlay |
|---|---|
| Touch Controller | ILITEK 2511 |
| Touch Points | 10-points Finger Touch |
| Layers | Front Glass On Sensor Glass |
| Transmittance | >86% |
| Surface Treatment | Anti-glare |
| Bezel Width | 16mm Each Side |
| Front Glass Thickness | 2mm |
| Total Thickness | 2.9mm |
| Size | 15.6-inch |
| Bezel Color | Black |
Applications
Retail Environments: Ideal for point-of-sale (POS) systems, self-service kiosks, and digital signage. The robust construction and high touch accuracy make it superior to traditional resistive touch panels in high-traffic areas.
Healthcare: Provides hygienic, easy-to-clean surfaces suitable for patient monitoring systems and medical devices. Responsive touch capabilities ensure precise control and fast input for healthcare professionals.
Industrial Applications: Excellent replacement for resistive touch panels in control panels and machinery interfaces. Enhanced durability and multi-touch support improve operational efficiency in demanding environments.
The LBCTP1569880 PCAP Touch Screen is a versatile and reliable solution for upgrading from resistive touch panels to modern capacitive touchscreen technology, combining durability, performance, and ease of use in a sleek 15.6-inch design.
