Aotong 50 tons 3 axles low boy heavy cargo/equipment transport semi trailer and durable
| Total Weight | 19200 kg | |
| Rated Load | 10000 kg | |
| Tare Weight | 9200 kg | |
| Wheel Base | 8480+1310 (mm) | |
| Tyre Specifications | 8.25R20 12PR(Vacuum tyre or rail tyre) | |
| No. Of the Tyres | 8 | |
| Axle Brand | FUWA (BPW optional) | |
| No. Of the Axles | 2 | |
| Axle-load | 12640 kg | |
| Pieces of leaf-spring | 10 (13) | |
| Suspension | Independent stamping steel rigid suspension ( air suspension) | |
| Departure Angle | 14 | |
| Front/Rear Overhang | 1670 mm | |
| Outside Dimensions (LxWxH) | 11900X3000,2800X3080 (mm) | |
| Interior Dimensions (LxWxH) |
| |
| Material of the Main Beam | Q235B manganese plates, automatic submerged arc welded | |
| Brake System | ABS:RL122-1; (optional ) | |
| Brake Air Chamber | Four double and two single chamber | |
|
Usage | The height of the cargo's carrying platform is 1500mm, is suitable for the transportation of the large and non-dismantled objects. | |
| Other Specifications | The max height of the rear guard from ground is 420mm | |
|
Other Descriptions | The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing. |
1. How do you transport the semi trailers
We will transport the trailers by rolling ship or container,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.
2. How can you guarantee quality?

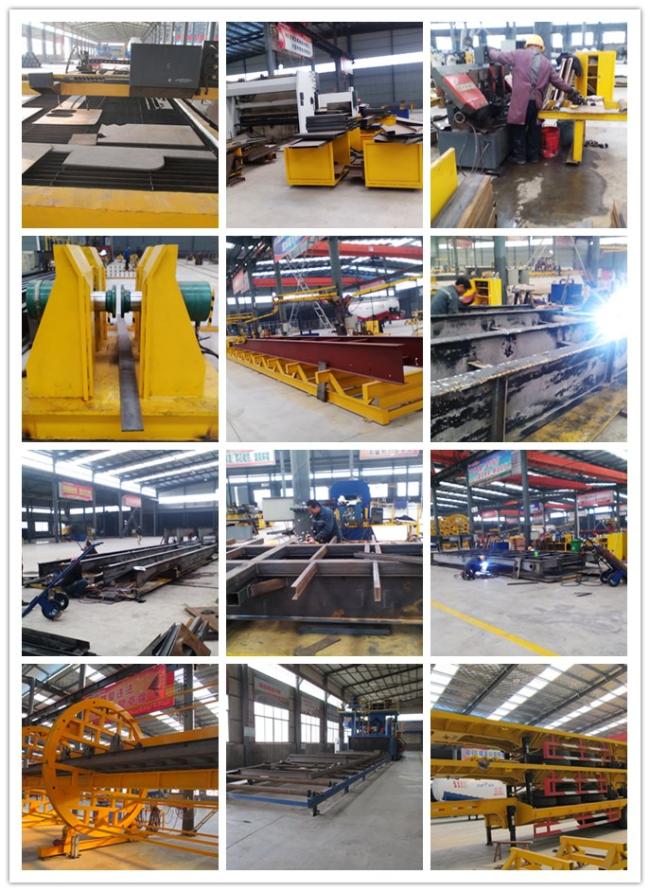

Our raw material and OEM parts including axle, suspension,tire are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
3.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
4. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lower.
5. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
