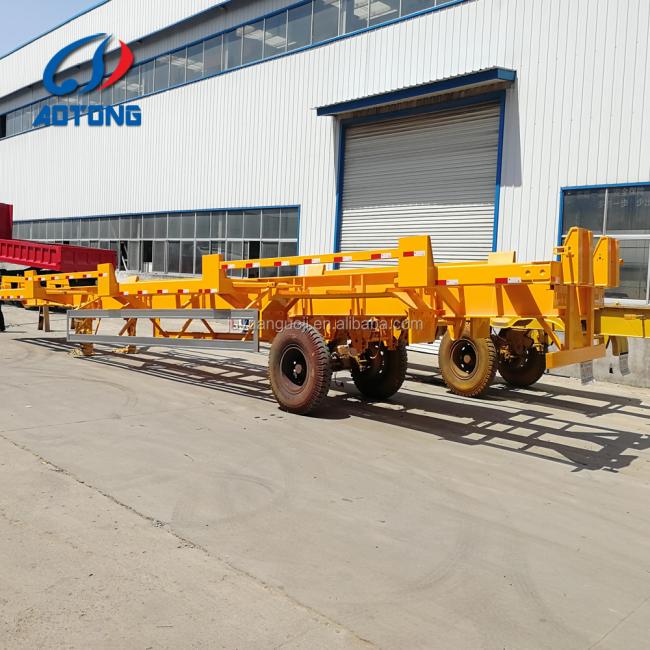

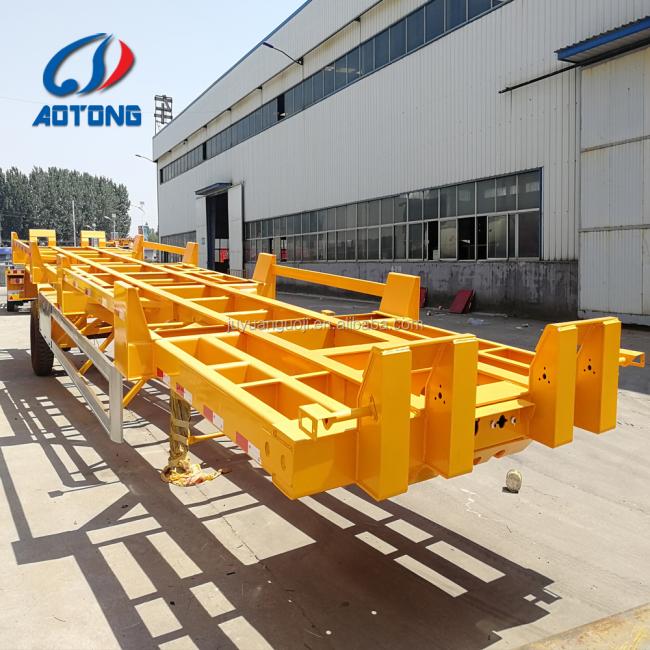

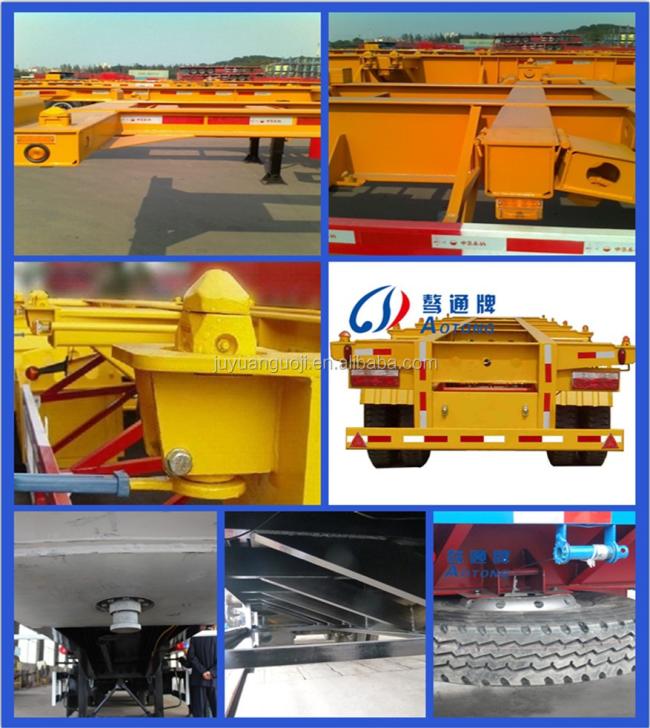

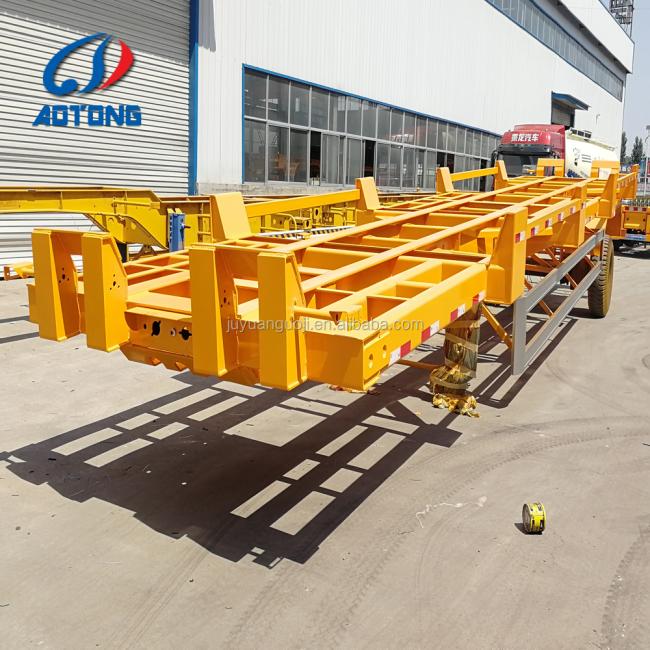

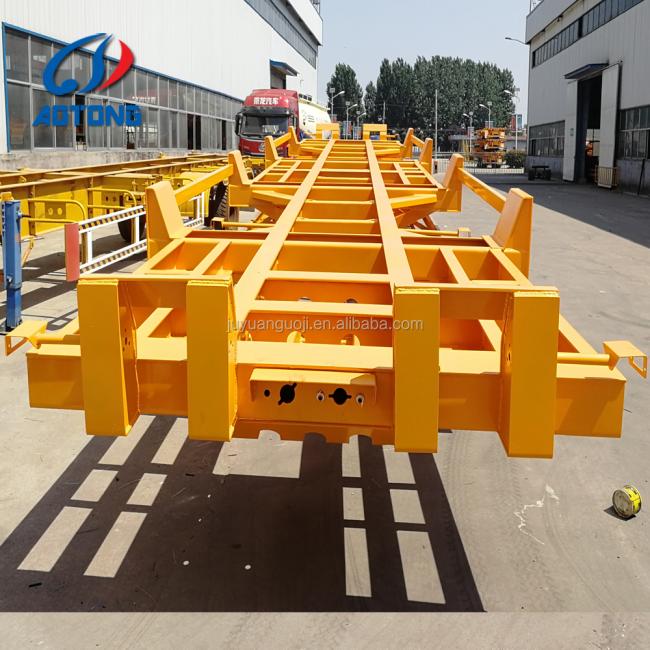

Steel 3 Axles 40ft 20ft 40ft Shipping Container Flat Semi Trailers for Country Markets
Welcome to Qingdao Juyuan,
Customer first,integrity based.
Description:
1. Model: LAT9380TDP
2. More than twelve years professional manufacturer experience
3. Be designed according to your requirements
4. CCC ISO9001 SGS agreement
5. Small order can be accepted
6.12 month quality guarantee term
7. We accept 100% inspection, welcome to our factory at any time
Application:
Suitable for the MID/long distance transportation of the MID/heavy duty and containers.
The max height of the rear guard from ground is 550mm, and the cross section is 140mmX55mm.
Specifications:
| Product Specifications | |
| Model Number | LAT9380TJZG |
| Rated Load | 45000 kg |
| Tare Weight | 7200 kg |
| Wheel Base | 6900+1310+1310 (mm) |
| Tyre Specifications | 1100R20-18/12R22.5-18 |
| No. Of the Tyres | 12 |
| Axle Brand | FUWA (BPW optional) |
| No. Of the Axles | 3 |
| Axle-load | 23500 kg |
| King Pin | 50#/90# |
| Landing Leg | 28ton |
| Pieces of leaf-spring | 10(8)(4) |
| Suspension | independent stamping steel rigid suspension (or air suspension) |
| Departure Angle | 14.5 |
| Front/Rear Overhang | 2120 mm |
| Outside Dimensions (LxWxH) | 12450X2450X1550 (mm) |
| Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
| Brake System | Dual line braking system /ABS |
| Brake Air Chamber | Six double chamber |
| Electrical | 24V 7 ways(7 wire harness) |
| Color | Any color will be available |
| Accessory | One tooling box with a set of standard trailer tool |
| Twistlock No | 12 |
| Floor | Steel Sheet 3mm thickness or diamond plate |
