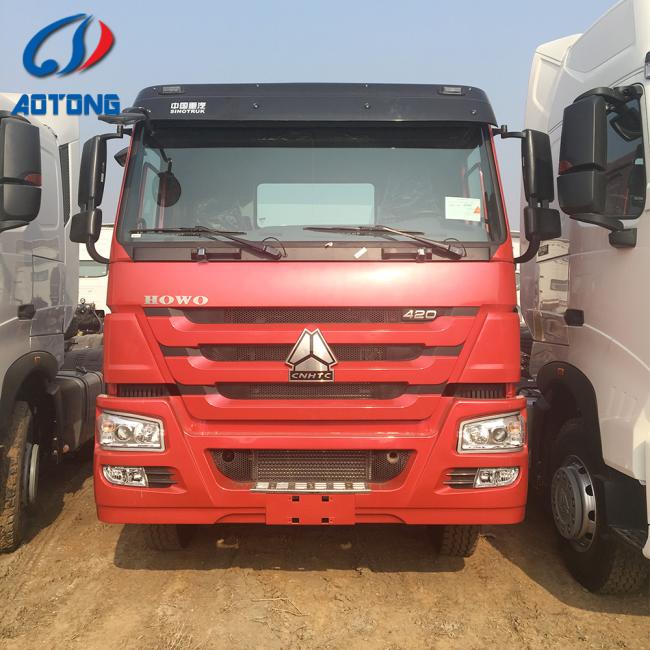

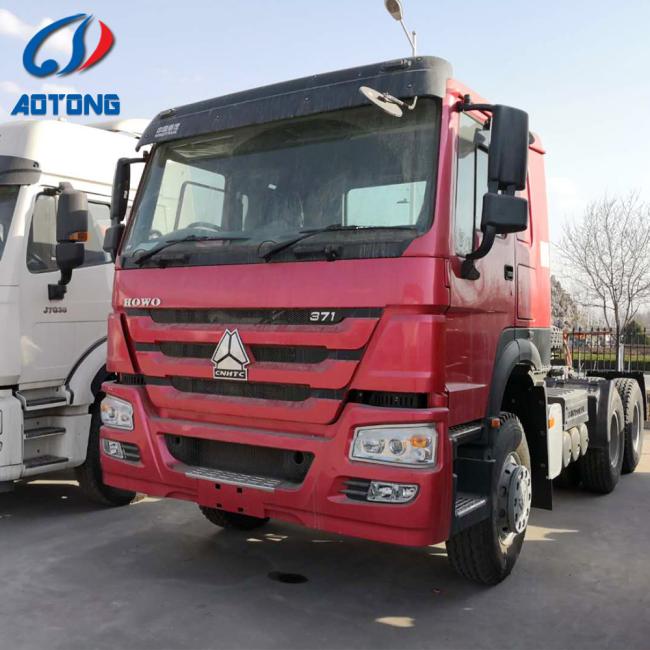

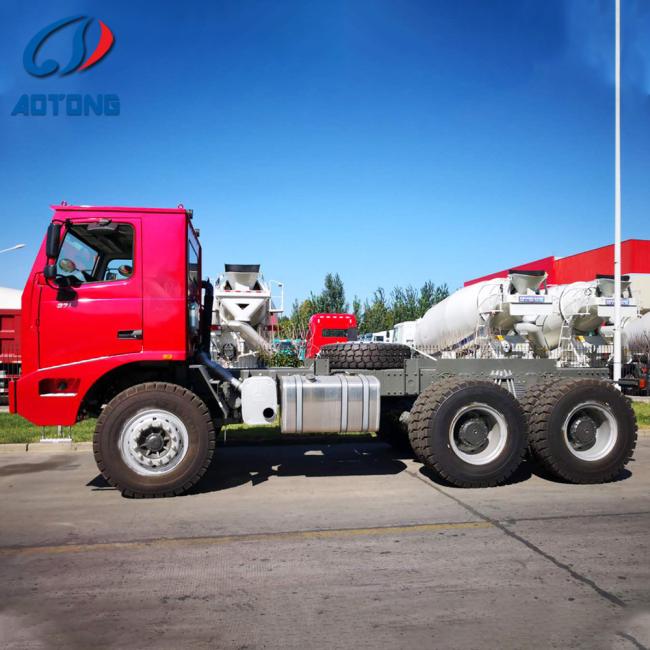

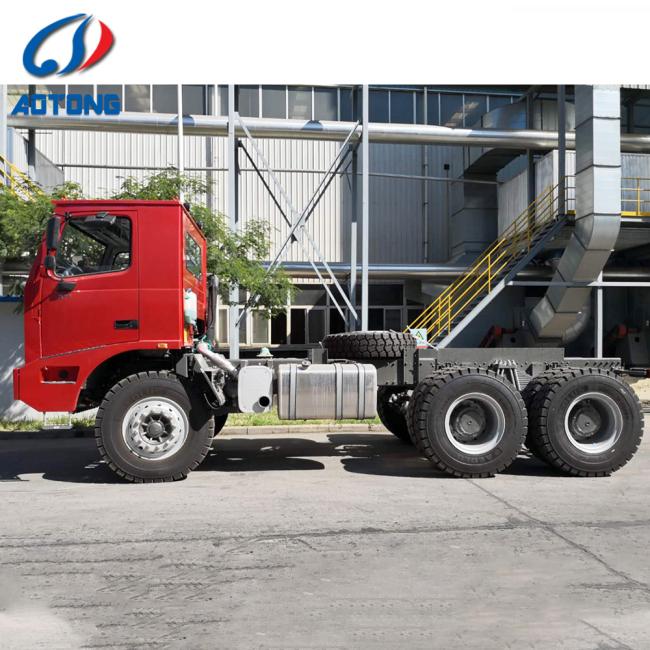

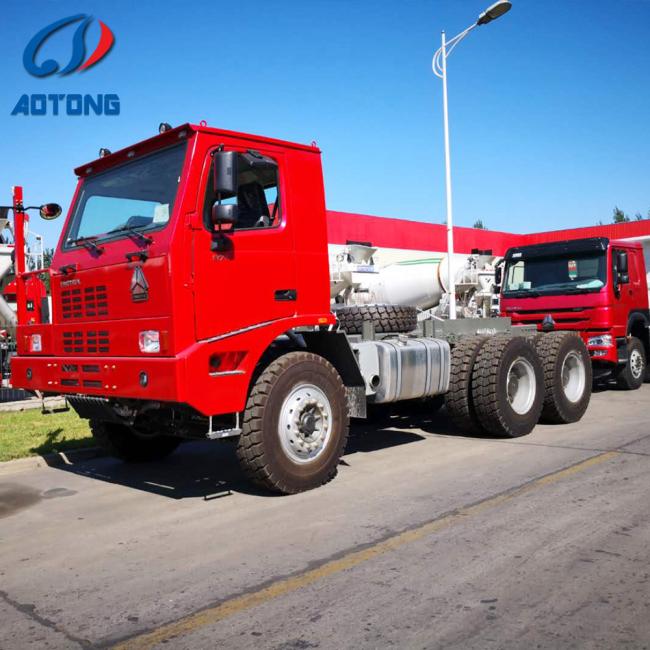

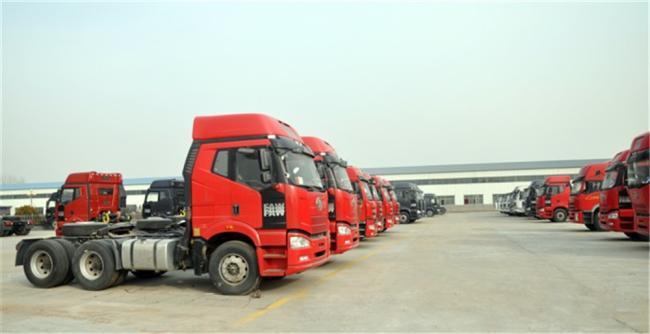

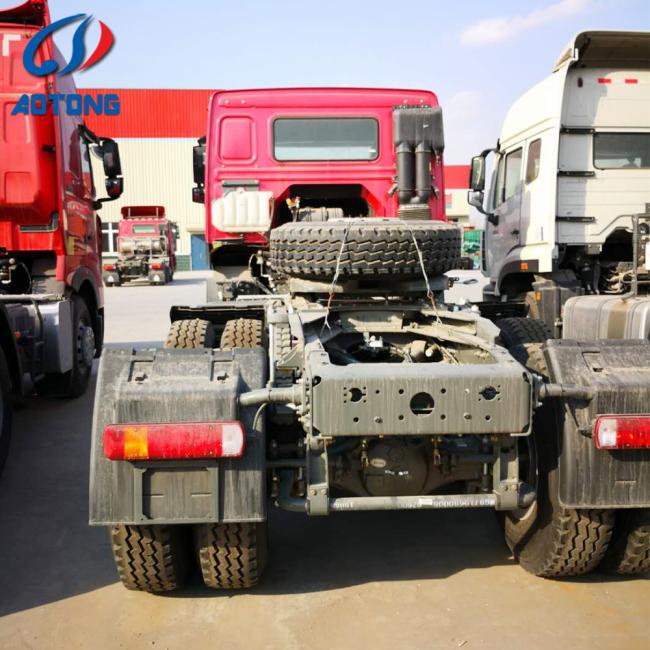

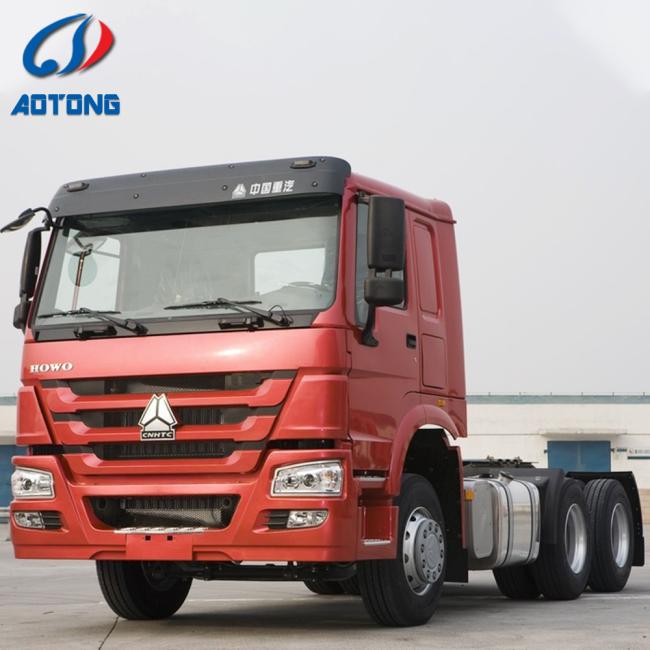

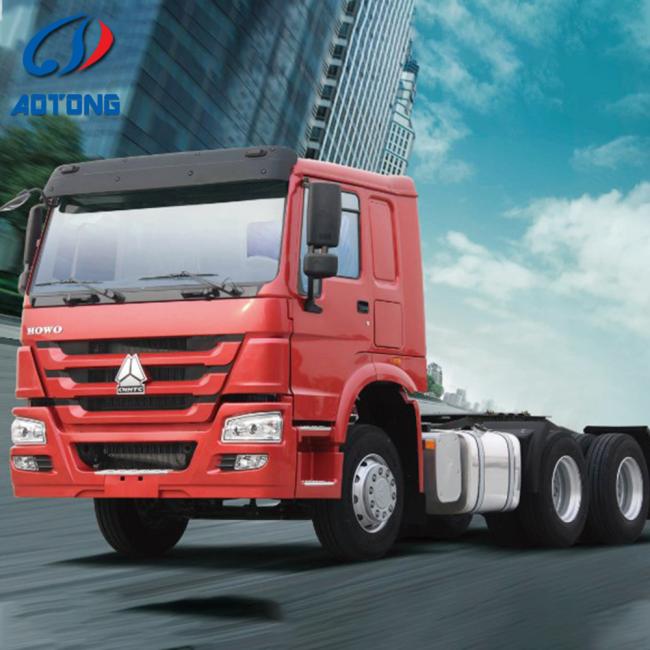

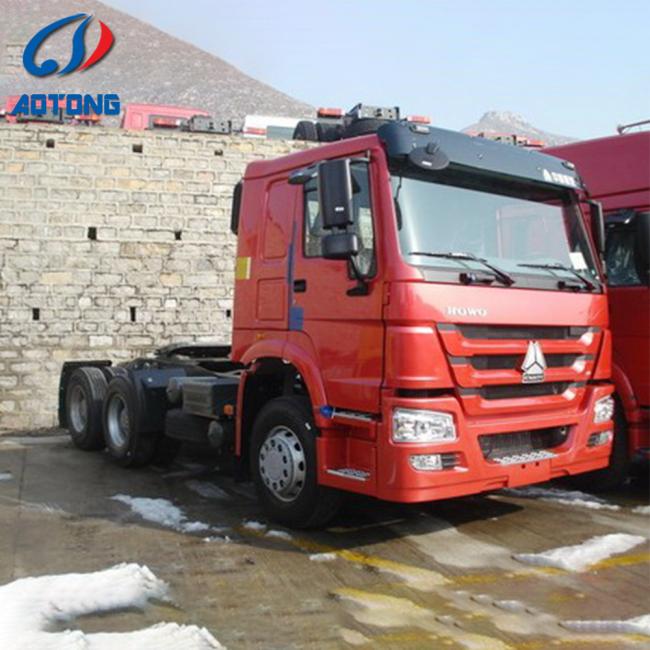

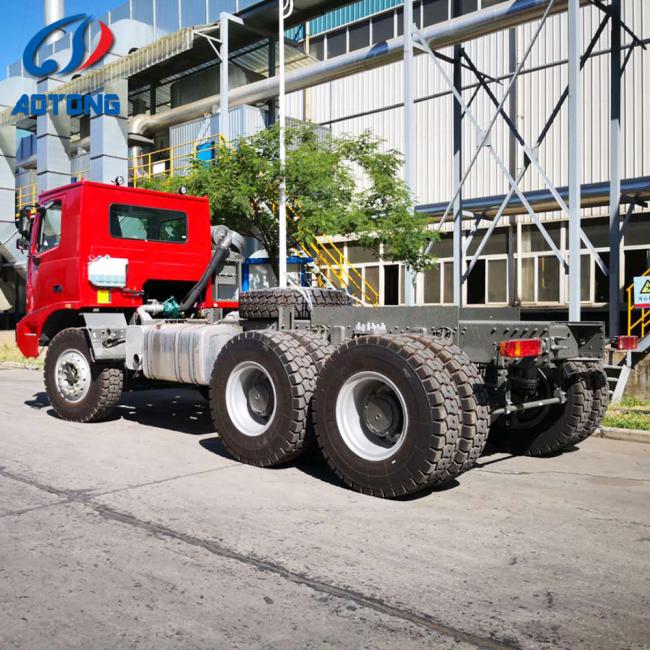

Logistics Transportation 6x4 Driving Type Dump Truck Tractor Truck Head with 371HP

Price Negotiable
Price: $36,500.00/units 1-2 units
MOQ: Negotiable
Delivery Time: Negotiable
Product Description

Truck Model  ZZ4257S3241
Driving Style  Left/Right Hand Driving
Dimension(Lx W xH)(unloaded)(mm) 6800x2496x2958
Approaching angle/Departure angle(°) 16/70
Overhang(front/rear) (mm) 1500/725
Wheel base (mm) 3225+1350
Front track/ Rear track(mm) 2022/1830/1830mm
Max speed(km/h) 101
Curb weight(kg) 9180
Loading Weight(kg) 25000
Engine Model Model WD615.47, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Engine Fuel type   Diesel
Engine Horse Power, max(kw/rpm)  371HP
Engine Emission  EURO II
Fuel tanker capacity (L) 400L
Clutch  Φ430 pull-type diaphragm spring clutch
Transmission Model HW19710,   10 forwards and 2 reverse
Brake system-Service brake Dual circuit compressed air brake
Brake system-Parking brake spring energy, compressed air operating on rear wheels
Brake system-Auxiliary brake Engine exhaust brake
Steering system  Model ZF8098 hydraulic steering with power assistance
Front axle  HF9, 9 tons loading capacity
Rear axle  HC16, 16 tons  loading capacity
Color  optional
Tire  1200R20, 10+1pcs
Electrical system-Battery  2X12V/165Ah
Electrical system-Alternator  28V-1500kw
Electrical system-Starter  7.5Kw/24V
Cab HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc.




Company Information

Factory strength:

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
CNC Flame Plasma Cutting Machine GS 2 4.0 Acceptable
Press Machine JC21-160 4 4.0 Acceptable
Hydraulic Plate Bender WC67Y-200/4000 2 3.0 Acceptable
Hydraulic Pendulum Plate Shears QC12Y-12*3200 2 3.0 Acceptable
Drilling Machine with Jointed Arm ZN3050*16 4 4.0 Acceptable
Shaping Machine BS6065 2 4.0 Acceptable
Universal Rotary Milling Machine X6232 1 4.0 Acceptable
CNC Lathe EL6140N 2 4.0 Acceptable
Saw Machine GD4028N 2 5.0 Acceptable
Expander ZX-3000 1 3.0 Acceptable
Rolling Machine W11-4-200 2 3.0 Acceptable
Automatic Round Welding Machine W11SNC-10-6500 1 4.0 Acceptable



Testing Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used Condition
Vernier Caliper 0.02 mm 2 3.0 Acceptable
Ultrasonic Thickness Gauge SMART SENSOR 1 3.0 Acceptable
Sound Level Meter AZ8928 1 3.0 Acceptable
