30T-60T Rear Dump Tipping Trailer With Hydraulic Lifting For Coal Transportation
Product Description:
Transporting sand, gravel, coal, or any other bulk material, the Dump/Tipping Semi Trailer is the perfect solution for all your hauling needs. With its reliable performance, high loading capacity, and flexible design options, this rear dumping semi trailer is the ideal choice for customers who demand the best.
Features:
1.equipped to handle your sand, gravels, clinkers and small aggregate needs, and tipping easily
2.equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front
3.available in many configurations, type and dimensions
Technical Parameters:

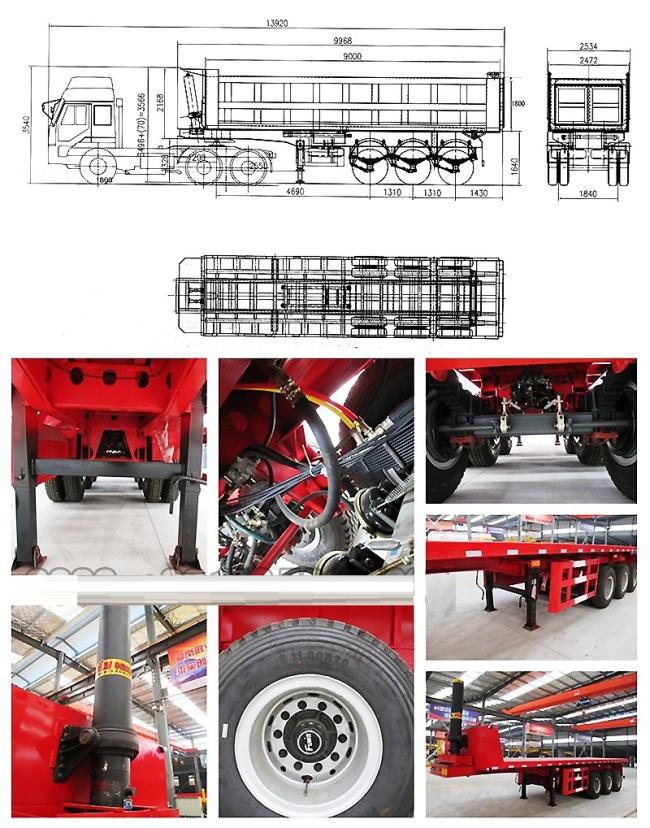

| Size | 9000*2500*1600 (mm) |
| Side board height | optional |
| Payload | 50000KG volume optional |
| Main beam | Heavy duty I beam. |
| Side wall | 6mm |
| Floor | 8mm |
| Cylinders | optional |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 12pcs (Other size optional) |
| Rim | 9.00-22.5 12pcs (Other size optional) |
| Kin pin | 2’’/3.5’’ bolt type |
| Landing gear | 28 Ton two speed |
| Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Applications:
The Dump/Tipping Semi Trailer is a self-tipping truck semi trailer that is perfect for transporting materials and equipment. It has a rear dumping feature that makes it easy to unload cargo.
This semi-trailer is highly versatile and can be used in a variety of scenarios. It is ideal for transporting construction materials, agricultural products, also suitable for use in the mining industry, where it can transport large amounts of ore and other materials. In addition, the Dump/Tipping Semi Trailer is perfect for transporting waste material, such as garbage and construction debris.
FAQ:
A: The brand name is AOTONG.
Q: Where is the Dump/Tipping Semi Trailer made?
A: It is made in China.
Q: Does the Dump/Tipping Semi Trailer have any certification?
A: Yes, it has ISO and CCC certifications.
Q: What is the minimum order quantity for the Dump/Tipping Semi Trailer?
A: The minimum order quantity is 1 UNIT.
Q: What is the delivery time for the Dump/Tipping Semi Trailer?
A: The delivery time is 25 days.
Q: What are the payment terms for the Dump/Tipping Semi Trailer?
A: The payment terms are TT.
