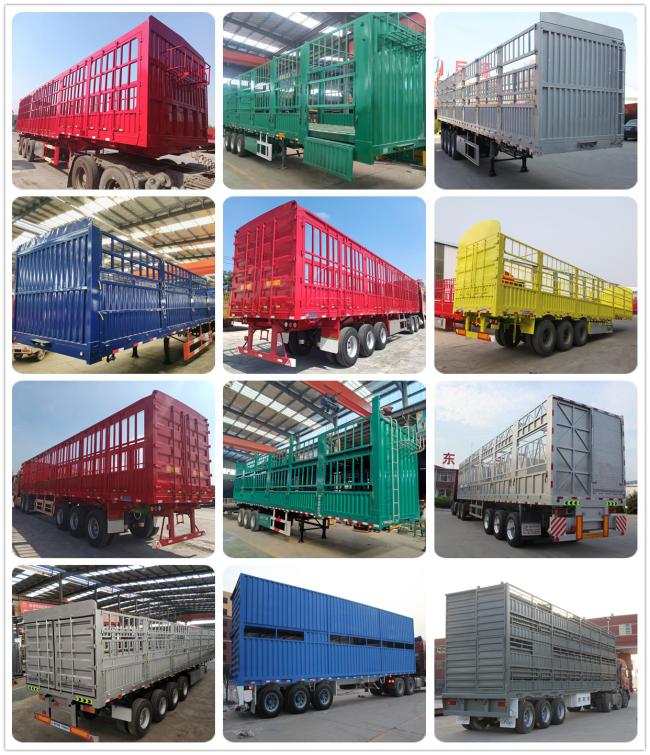

Bulk Cargo Transport 3 Axles Detachable Fence Truck Trailers
Descriptions:
The cargo area of the stake truck features a barn-style design, with the longitudinal beams connected in a welded space frame structure. This construction enhances the frame's strength, stiffness, and flexibility, providing a balanced design that allows for a high load capacity without causing any permanent deformation.
Specifications:
| Size | 12500*2500*(3000-4500) (mm) |
| Payload | 50000KG |
| Main beam | Heavy duty I beam. |
| Cross beam | 160mm |
| Floor | 1-4 floor optional |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 12pcs (Other size optional) |
| Rim | 9.00-22.5 12pcs (Other size optional) |
| Kin pin | 2’’/3.5’’ bolt type |
| Landing gear | 28 Ton two speed |
| Twist locks | optional |
| Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
According to client's speical requests for trailer, we can design full set drawings for clients
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
