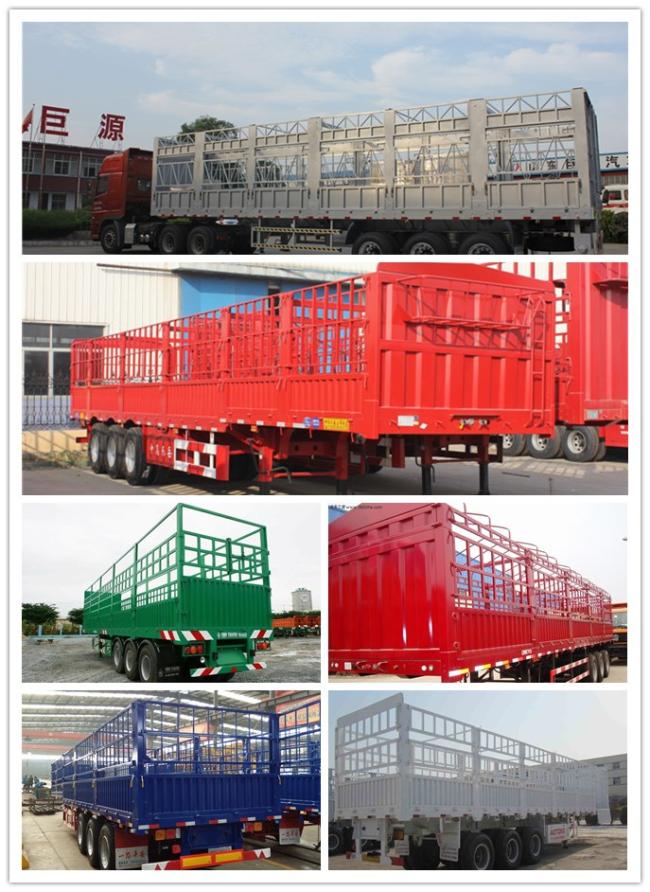

Transport Vegetables Livestock Storage Grid Semi Stake Fence Cargo Truck Trailers
Usage:
Suitable for the agricultural, sideline products and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments.
Features:
The cargo's carring part of the stake truck is store house bar style designed, the beam wears through the longitudinal beam which is welded as a space frame structure, making the frame strength, stiffness, flexibility an equilibrium, a strong carrying capacity without permanent deformation.
Specifications:
| Total Weight | 40000 kg |
| Rated Load | 33000 kg |
| Tare Weight | 7000 kg |
| Wheel Base | 6980+1310+1310, 6480+1310+1310 (mm) |
| Tyre Specifications |
11.00R20 12PR 11.00-20 12PR 12R22.5 12PR (Vacuum tyre or rail tyre) |
| No. Of the Tyres | 12 |
| Axle Brand | FUWA (BPW optional) |
| No. Of the Axles | 3 |
| Axle-load | 24000 kg |
| Pieces of leaf-spring | 10 (8) (4) |
| Suspension | Independent stamping steel rigid suspension ( air suspension) |
| Departure Angle | 15 |
| Front/Rear Overhang | 2100 mm |
| Outside Dimensions (LxWxH) | 13000,12500X2500X 3400,3600,3800,4000 (mm) |
| Interior Dimensions (LxWxH) | 12850,12350X2340X 1800,2000,2200,2400 (mm) |
| Material of the Main Beam | Q235B manganese plates, automatic submerged arc welded |
| Brake System | ABS:MQPT42 (optional ) |
| Brake Air Chamber | Four double and two single chamber |
According to client's speical requests for trailer, we can design full set drawings for clients.
(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
