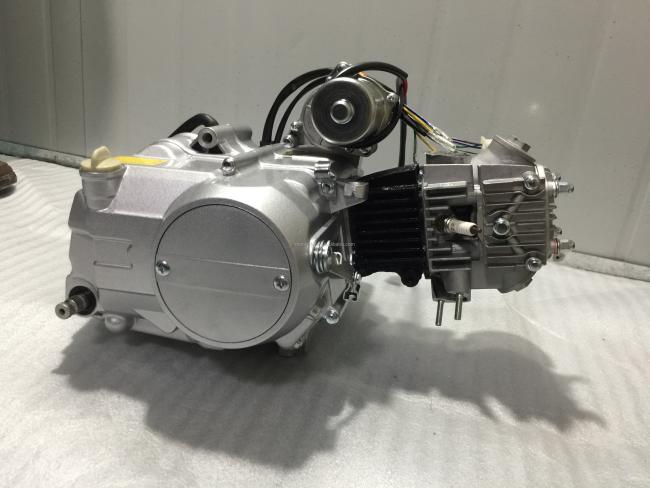

Electric Start Manual Clutch Single Cylinder Air-cooled Engine 70CC 4-Stroke with CDI
70CC 4-Stroke Engine Electric Start Manual Clutch Single Cylinder Air-cooled Engine
| Engine designation | 70cc foot automatic clutch engine |
| Piston stroke | 41.4mm |
| Cylinder diameter | 47mm |
| Total displacement | 71.8ml |
| Compression ratio | 8.8:1 |
| Fuel grade | NO.92 |
| Total oil capacity | 0.8L |
| Spark plug model | A7RTC |
| Spark plug gap | 0.6mm-0.7mm |
| Valve clearance | 0.02mm-0.04mm |
| Starting mode | Pin start |
| Lubrication mode | Pressure splash compound |
| Ignition mode | CDI |
| Carburetor model | PZ16 |
| Transmission type | Four-speed cycle (international) |
| Clutch type | Auto |
| Primary gear ratio | 4.05 |
| Gearshift ratio | 0.958 |
| Output drive mode | Chain drive |
| Maximum net power | 3.8/8000 |
| Maximum torque | 4.7/6000 |
| Minimum fuel consumption | ≤367g/Kw.h |
| Overall dimension | 460*340*330 |
| Net mass | 19Kg |
Chongqing Mona Machinery Electronic Co., Ltd mainly produces and sells tricycle and motorcycle spare parts. Our accessories are of good quality and the prices are competitive.
The company operates with integrity, provides first-class service, and has long-term cooperation with major foreign trade companies and heavy buyers at home and abroad. Accessories are mainly exported to South America, Africa, Southeast Asia, such as Brazil, Peru, Somalia, Kenya, Nigeria, Cambodia, Myanmar, Vietnam, Iran, Iraq and other regions and countries, deeply loved by customers.
