Tp316 Hot Rolled Stainless Steel Pipe SS Steel Pipes 0.5mm-50mm Wall Thickness
Price:
to be negotiated
MOQ:
1 ton
Delivery Time:
Within 7-15 workdays after receiving deposit or L/C
Brand:
TISCO, BAOSTEEL
Product Description
ASTM A312 Tp316 Hot-Rolled SS Steel Pipes for Pipeline Transport
ASTM A312 / A312M, Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes, covering Austenitic stainless steels, and manufactured both welded and seamless type for option.
ASTM A312 stainless steel pipe is widely used for high temperature service and general service, pipe size from 1/8 inch to 30 inch for outside diameter, wall thickness from Schedule 5S to 80S.
| Product Name | Stainless Steel Pipe | |
| Size | OD | 6mm-762mm |
| Thickness | 0.5mm-50mm | |
| Length | 5-20M | |
| Standard | ASTM (ASME) (SA)A312 /213/376 /269ect | |
| Materail and Grade | TP304/304L/H/LN,TP316/316L,TP317/317L,TP321/TP321H,TP347/347H,TP309S/310S,etc | |
| Duplex Stainless Steel Standard | ASTM A789/A790/A999/A450 ETC | |
| Duplex Standard Steel Grade | S32750(SAF2507),S31083(SAF2205),S31500(3RE60) | |
| Process Method | Cold drawn/cold rolled/Welded | |
| Standard | ANSI B36.19/36.10 | |
| Usage | Oil Pipe, Casing Tube, Line Pipe and Fluid (Water, Gas) Transmission | |
| Surface | Bared Black Painting, Anti-Corrosion Coating | |
| Proctor | Plastic cap | |
| Package | Bundles, Bulk,wooden case | |

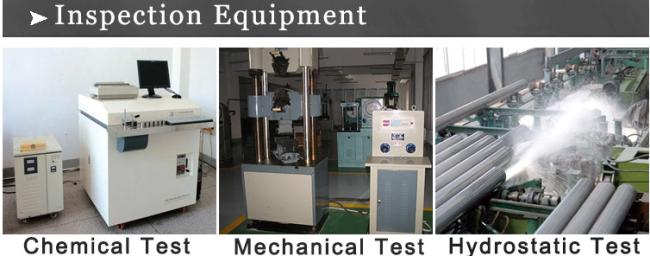

| Inspection | With Hydraulic Testing, Ultrasonic testing or X-ray Test | |
| Certificate | ISO 9001-2000,PED 97/23/EC,ASME,DNV | |
| Date of Delivery | Less Than 15/20/25/30/40/50/60 Days According To The Quantity | |
| Payment: | L/C or T/T | |
Product Description
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | <=0.15 | <=O. 75 | 5. 5-7. 5 | <=O. 06 | <=O. 03 | 3. 50-5. 50 | 16. 0-18.0 | - |
| 202 | <=0. 15 | <=I.0 | 7. 5-10. 0 | <=O. 06 | <=O. 03 | 4. 0-6. 0 | 17.0-19.0 | - |
| 301 | <=0. 15 | <=1.0 | <=2. 0 | <=O. 045 | <=O. 03 | 6. 0-8. 0 | 16. 0-18. 0 | - |
| 302 | <=0. 15 | <=1.0 | <=2.0 | <=O. 035 | <=O. 03 | 8. 0-10.0 | 17.0-19.0 | - |
| 304 | <=0. 08 | <=1.0 | <=2. 0 | <=O. 045 | <=O. 03 | 8. 0-11.0 | 18. 0 - 20. 0 | - |
| 304L | <=0. 03 | <=1.0 | <=2. 0 | <=O. 035 | <=0. 03 | 9. 0-12.0 | 18. 0 - 20. 0 | - |
| 309S | <=0. 08 | <=I.0 | <=2. 0 | <=O. 045 | <=O. 03 | 12. 0-15.0 | 22. 0-24.0 | - |
| 310S | <=O. 08 | <=1.5 | <=2. 0 | <=O. 035 | <=O. 03 | 19. 0-22. 0 | 24. 0-26. 0 | - |
| 316 | <=O. 08 | <=1.0 | <=2.0 | <=O. 045 | <=O. 03 | 10. 0-14.0 | 16. 0-18.0 | 2. 0-3. 0 |
| 316L | <=O. 03 | <=1.0 | <=2. 0 | <=O. 045 | <=O. 03 | 11.0-14.0 | 16. 0-18. 0 | 2. 0-3. 0 |
| 321 | <=O. 08 | <=1.0 | <=2. 0 | <=O. 035 | <=O. 03 | 9. 0-12.0 | 17.0-19.0 | - |
| 630(17-4PH) | <=0. 07 | <=1.00 | <=l.OO | <=O. 035 | <=O. 030 | 3. 00-5. 00 | 15. 5-17. 5 | - |
| 631 | <=0. 09 | <=1.00 | <=l. 00 | <=O. 030 | <=O. 035 | 6. 50-7. 75 | 16. 00-18. 00 | - |
| 904L | <=2. 0 | <=O. 045 | <=1.0 | <=O. 035 | - | 23. 0-28. 0 | 19. 0-23. 0 | 4. 0-5. 0 |
| 2205 | <=0.03 | <=1.0 | <=2. 0 | <=O. 03 | <=O. 02 | 4. 5-6. 5 | 22. 0-23. 0 | 3. 0-3. 5 |
| 2507 | <=O. 03 | <=O. 80 | <=1.2 | <=O. 035 | <=O. 02 | 6. 0-8. 0 | 24. 0-26. 0 | 3. 0-5. 0 |
| 2520 | <=O. 08 | <=1.5 | <=2. 0 | <=O. 045 | <=O. 03 | 0. 19-0. 22 | 0. 24-0. 26 | - |
| 410 | <=O. 15 | <=I.0 | <=1.0 | <=O. 035 | <=O. 03 | - | 11.5-13.5 | - |
| 430 | <=O. 12 | <=O. 75 | <=1.0 | <=O. 04 | <=O. 03 | <=O. 60 | 16. 0-18.0 | - |
