Standard Outlet Size 18-48mm and PE400*600 Jaw Crusher with Screen
Price:
Negotiable
MOQ:
1
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description

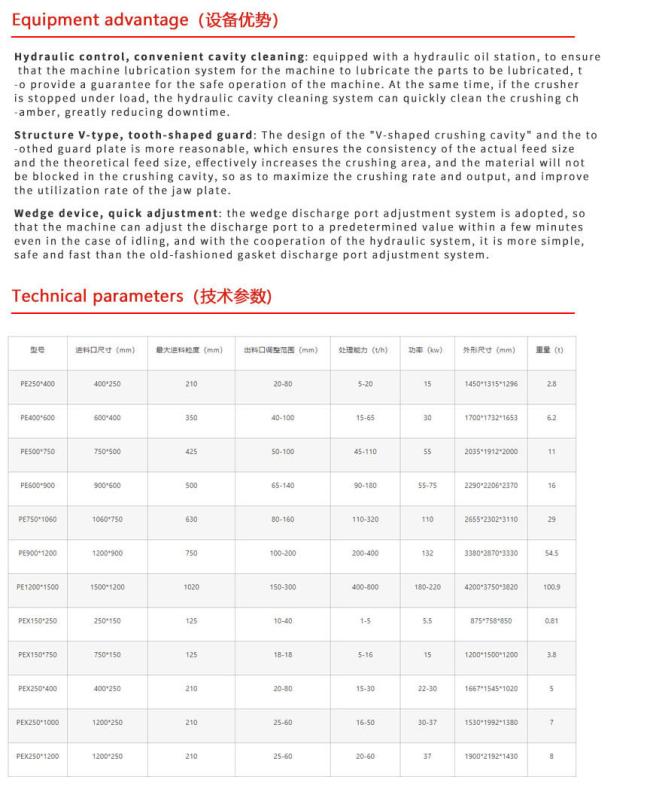

| Jaw Crusher | ||||||
| Model | Feed inlet size(mm) | Max inlet size(mm) | Capacity (t/h) | Electric power(kw) | Overall size LxWxH(mm) | Weight(t) |
| PE150× 250 | 150× 250 | 125 | 1-5 | 5.5 | 875× 758× 850 | 0.81 |
| PE250× 400 | 250× 400 | 210 | 5-20 | 15 | 1450× 1315× 1296 | 2.8 |
| PE400× 600 | 400× 600 | 340 | 25-65 | 30 | 1565× 1732× 1586 | 6.5 |
| PE500× 750 | 500× 750 | 425 | 45-80 | 55 | 1892× 2054× 1853 | 10.1 |
| PE600× 900 | 600× 900 | 500 | 70-150 | 55-75 | 2520× 1840× 2303 | 15.5 |
| PE750× 1060 | 750× 1060 | 630 | 130-260 | 110 | 2620× 2302× 3110 | 28 |
| PE900× 1200 | 900× 1200 | 750 | 220-500 | 110-132 | 3789× 2826× 3025 | 50 |
| PE1000× 1200 | 1000× 1200 | 850 | 250-700 | 132 | 3889× 2826× 3025 | 57 |
| PE1200x1500 | 1200× 1500 | 1020 | 400-1000 | 160-220 | 4200× 3750× 3820 | 100.9 |
| PEX150x750 | 150x750 | 125 | 5-16 | 15 | 1200x1500x1200 | 3.8 |
| PEX250x750 | 250x750 | 210 | 15-30 | 30 | 1667x1545x1250 | 5.6 |
| PEX250x1000 | 250x1000 | 210 | 20-50 | 30 | 1530x1992x1380 | 7 |
| PEX250x1200 | 250x1200 | 210 | 25-60 | 37 | 1900x2190x1430 | 8 |
| PEX300x1300 | 300x1300 | 250 | 30-105 | 55-75 | 2720x1950x1600 | 11 |
| PEW250x1000 | 250x1000 | 220 | 15-50 | 37 | 1400x1850x1310 | 6.8 |
| PEW250x1200 | 250x1200 | 220 | 20-60 | 37 | 1400x20500x1310 | 7.8 |
| PEW400x600 | 400x600 | 350 | 15-70 | 37 | 1920x1460x1840 | 8 |
| PEW760 | 760x1100 | 620 | 150-350 | 110 | 2600x2500x2200 | 27 |
| PEW860 | 860x1100 | 720 | 200-500 | 132 | 3300x2320x3120 | 32 |
