PC4008-75 Mine European Version of Coarse Grinding with Per Stipulated and AC Motor
Price:
Negotiable
MOQ:
1
Delivery Time:
Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Product Description

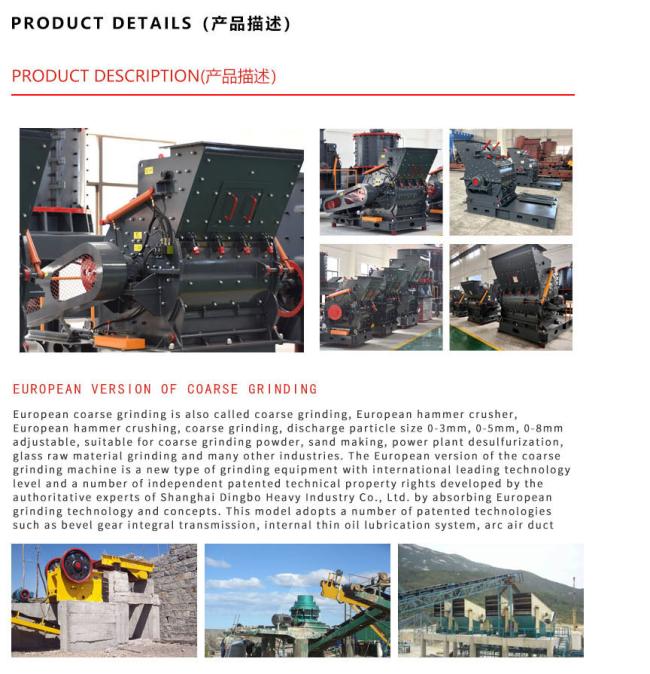

Latest-model European Coarse Grinding Mill
Working plant site in China for limestone
Technical Specification:
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor Diameter (mm) | 750 | 900 | 1150 |
| Rotor Length (mm) | 800 | 1200 | 1500 |
| Rotor Speed (r/min) | 800-1000 | 800-1000 | 550-800 |
| Inlet size (mm) | 320×930 | 400×1200 | 500×1500 |
| Max. Feeding Size (mm) | <50 | <50 | <100 |
| Outlet Size (mm) | 0-3 | 0-3 | 0-8 |
| Capacity (t/h) | 10-30 | 30-60 | 60-100 |
| Power (KW) | 75 | 90 | 132 |
| Overall Dimension (mm) | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |

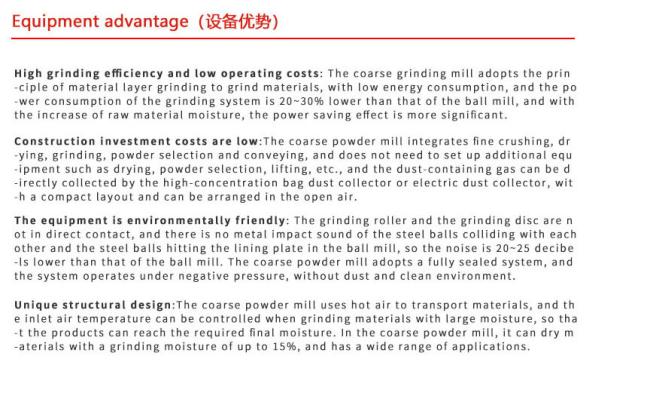

Advantages and Features:
1.the production capacity, high crushing ratio;
2.low power consumption, uniform particle size;
3.mechanical structure is simple, compact and lightweight;
4.low investment costs, management, and convenient.
Working Principle:
the Hammer Crusher or Coarse Powder Mill casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
