China Uv Resistance Geomembrane 1.0mm 2.5mm Textured Anti Slip Easy Construction Laying Suitable Slop Application Width 6m 8m for sale

Uv Resistance Geomembrane 1.0mm 2.5mm Textured Anti Slip Easy Construction Laying Suitable Slop Application Width 6m 8m

Price Negotiable
Price: Inquriy anytime
MOQ: 330㎡
Delivery Time: 7-15 days
Brand: JianYi
Product Description

Easy Construction Laying Textured and anti-slip  Geomembrane 1.0mm-2.5mm for Slop application


   Product Introduction

Jianyi HDPE textured geomembranes are available with either single- or double-sided textured surface which exhibit superior shear strength and the high multi-axial performance. The textured surface processing is the only one that produces a textured material without significant reduction of any physical properties. The product allows project for greater slopes to be designed since frictional characteristics are enhanced. Compared with smooth HDPE geomembranes, they have better friction features.

The manufacturing of HDPE geomembrane textured contains approximately 97.5% polyethylene, 2.5% carbon black and trace amounts of anti-oxidants and heat stabilizers, no other additives, fillers or extenders are used. The textured surface is processed by spraying system.

Feature and Advantage of HDPE Geomenbrane Textured

1. Tear Resistant

2. Puncture Resistance

3. Very low permeability

4. Good friction performance

5. Alkali and acid resistance

Geomembrane Series


Textured HDPE Geomembrane For Landfill project national standard (GB/T 17643-2011(GH-2T1,GH-2T2))


Serial Number Project Index
Thickness(mm) 0.75 1.00 1.25 1.50 2.00 2.50 3.00
1 Density (g/c㎡,≥) ≥0.940
2 Textured Highth (mm) ≥0.25
3 Yield Strength (N/mm,LD/TD) ≥11 ≥15 ≥18 ≥22 ≥29 ≥37 ≥44
4 Breaking Strength (N/mm,LD/TD) ≥8 ≥10 ≥13 ≥16 ≥21 ≥26 ≥32
5 Yeild Elongation Rate (%) ≥12
6 Breaking Elongation Rate (%) ≥100
7 Rectangular Tear Strength (N) ≥93 ≥125 ≥160 ≥190 ≥250 ≥315 ≥375
8 Puncture Strength (N) ≥200 ≥270 ≥335 ≥400 ≥535 ≥670 ≥800
9 Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h ≥300
10 Carbon Black Content(Rang) (%) 2.0~3.0
11 Carbon Black Dispersion There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed
12 Oxidative Induction Time (OIT) Standard OIT (min)≥100
High Pressure OIT (min)≥400
13 85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day) ≥55
14 Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%) ≥50


(CJ(City construction standard)-T234-2006)

Specification 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Item
Thickness (mm) 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
Textured Highth (mm) 0.25
Density (g/c㎡,≥) 0.94
Tensile Properties
Yield Strength (N/mm,LD/TD) 15 18 22 29 37 44
Breaking Strength (N/mm,LD/TD) 10 13 16 21 26 32
Yeild Elongation Rate (%) 12
Breaking Elongation Rate (%) 100
Rectangular Tear Strength (N) 125 156 187 249 311 374
Puncture Strength (N) 267 333 400 534 667 800
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)		 300
Carbon Black
Carbon Black Content(Rang) (%) 2.0~3.0
Carbon Black Dispersion Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min) 100
High Pressure OIT (min) 400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%) 55
90 days after baking, the hight pressure OIT retention(%) 80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) 50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) 50
-70℃ The Low Temperature Embrittlement Performance mpact Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) ≤1.0X10-13
Dimensional Stability ±2


Forms Ordinary sheet size/roll:

Thickness mm Width meters Length meters
1.0 5.8/6 50
7 50
1.5 5.8/6 50/100
7 50
2.0 5.8/6 50
7 50
8 50/100


HDPE Gemenbrane Texture Application

HDPE Geomembrane textured is used in applications that require increased frictional resistance, excellent chemical resistance and endurance properties.

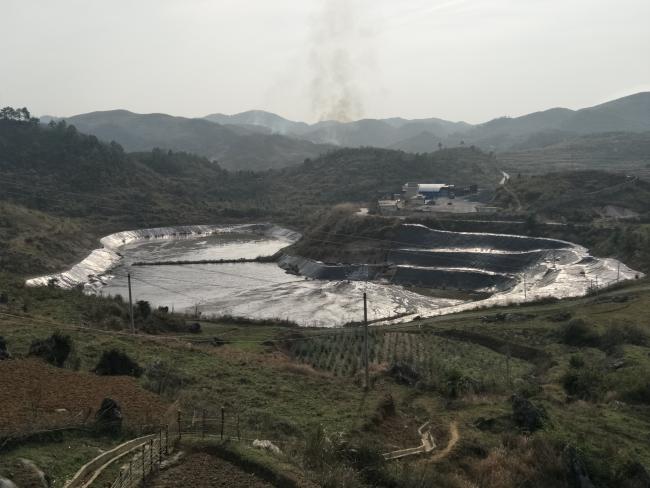

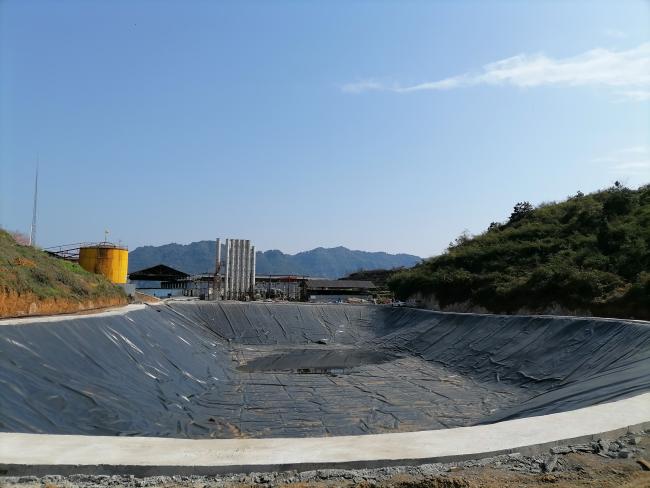

  • Solid waste landfills




  •  Mining, coal ash pond

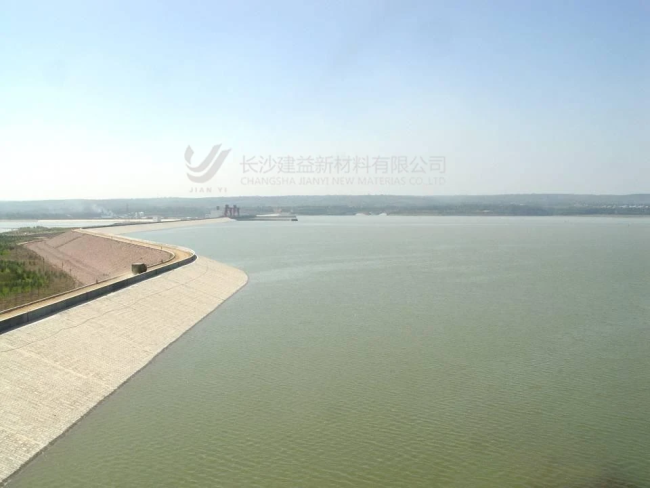

  • Dam and embankment erosion control

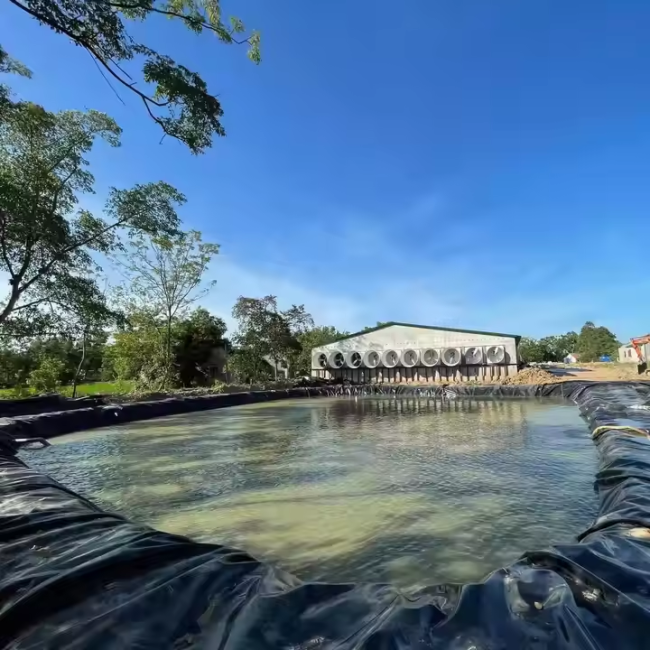

  • Artificial lake lining

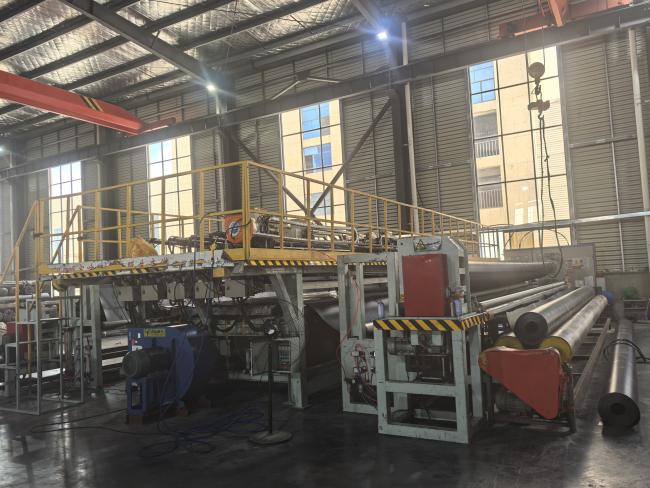

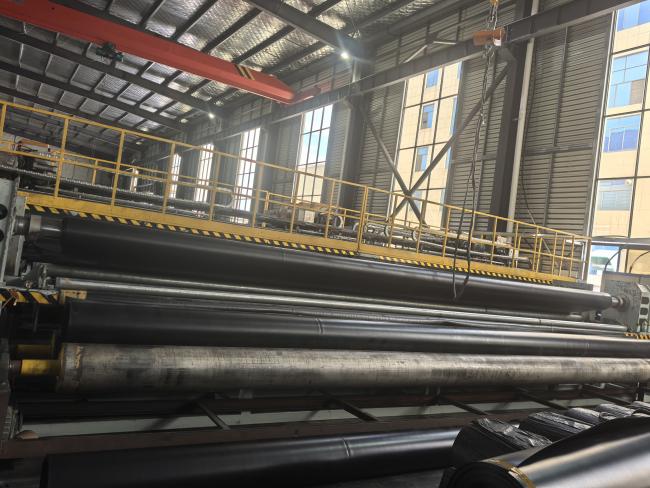

HDPE  Texture geomembrane spraying production equipment



Service

1, Free sample available

2, Trial order acceptable

3, Customized packing acceptable

4, Excellent after-sales service system


Changsha Jianyi New Material Co., Ltd., headquarter in Hunan and having branches in Surrounding cities , is one of the leading and comprehensive geosynthetics manufacture and installation service provider in China. Our HDPE geomembrane production capability is top  ranking in recent years around our country. Our company have CE certificate for HDPE geomembrane series products as well as ISO9001, ISO14001 company certificates.

We have improved our textured geomembrane equipment last year by bringing new spraying processing system.
