China 17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer for sale

17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer

Name: 17HS3430 Nema17 42 CNC Stepper Motor 34mm 1.2A 34mm /38 Oz In For 3D Printer
Brand: Changzhou Powace Internation Co., Ltd.

Price Negotiable

Price: $4.9-6.3

MOQ: 1piece

Delivery Time: 2-7 work days

Brand: Rattm Motor

Product Description

Stepper motor's red wire connect to driver's A+ port
Stepper motor's green wire connect to driver's A- port
Stepper motor's yellow wire connect to driver's B+ port
Stepper motor's blue wire connect to driver's B- port

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------?20deg ~+50deg

Insulation resistance:100M? Min,500VDC

Insultion Strength--------500VAC for one minute

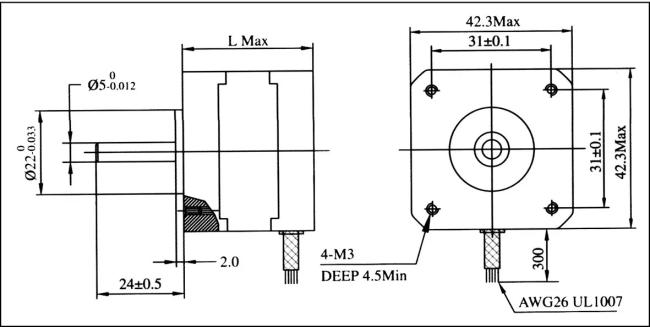

Datasheet(17HS3430,1.2A,38oz-in or 2.5kg.cm holding torque,5mm diameter shaft):

Advantages

Our motor is made of solid and durable metal. The perfect combination of
rubber and rotor makes the internal structure more stable, and also
reduces the vibration and noise when the engine runs.
The motor runs more quietly, with a high torque of 12Nm.The coil uses pure
copper enamelled wire to ensure that long-term operation will not lead
to excessive engine temperature.
The rotor surface is coated with high-quality epoxy resin adhesive to
isolate the adsorbed burrs on the rotor surface, more stable magnetic
field and longer service life of motor.

Usage or Application

This products are widely used in engraving machine, printer, medical
equipment,embroidery machine, stage lighting, textile automation,
printing,packaging and other industries automation equipment.
