Water Cooled Spindle Motor ER20 24000rpm with 2.2KW VFD Inverter 80mm Clamp
2.2KW Water Cooled Spindle Motor Kit ER20 24000rpm 400Hz+2.2KW VFD Inverter Variable Frequency Driver+80mm Clamp
Good News: We have warehouse in some countries, check as bellows
| Warehouse location | Shipping Carrier | Delivery Countries | Delivery Time | Advandge |
| Germany&Czech Republic | DHL/GLS | EU Countries | 3-12 Business days |
1. Fast Delivery 2. No VAT Tax |
| United States | UPS/USPS | United States only | 3-12 Business days |
1. Fast Delivery 2. No VAT Tax |
Package include:

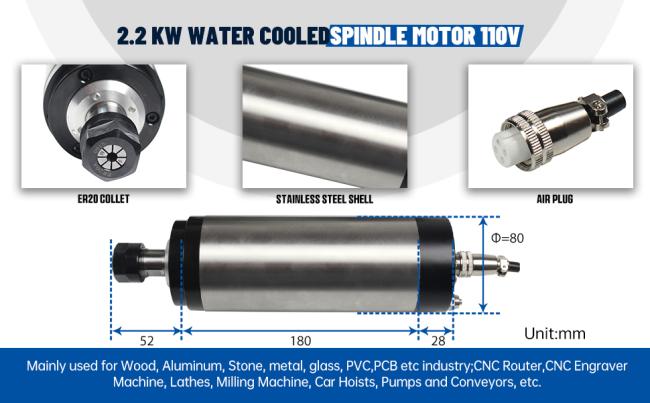

2.2KW 110V Water cooled spindle motor
Material: Stainless Steel
Size: 80x200mm(Middle body diameter:80mm x Length:200mm)
Power: 2.2KW
Voltage: 110VAC
Current: 8.5A
Frequency: 0-400Hz
Speed: 0-24000rpm
Cooling: Water-cooled
Accuracy: 0.003--0.005
Runout off: Less than 0.05mm
Bearing Lubrication: Grease
Collet size: ER20
Bearings: 4 bearings (C7005x2 + C7002x2),P4 class, Angular contact bearings
Net Weight: 5.2kg
Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground.
Main applications:
- Wood,PMMA or other plastic,Urethane foam,MDF board,Native wood,PVC,PCB,Acrylic,Composite board plywood,Aluminum,Stone,Metal,Brass,Glass etc.
- Widely used to process or make adverstising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
- This spindle motor kit applied to CNC Router,CNC Engraver Machine, Lathes, Milling Machine, Car Hoists, Pumps and Conveyors, etc.
2.2KW 110V VFD
|
|
|
|
|---|---|---|
Product Feature:1) Input Voltage: 110V(+/-15%) , 2) Output Voltage: 100V/AC-120V/AC 3) Input Frequency: 48-63 Hz 4) Output Frequency: 0-400 Hz 5) Input Phase: 1 phase 6) Output Phase: 3 phase 7) Output Current: 20A 8) Model: HY02D211B 9) Horsepower: 3HP |
Advantages1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability; 2)Easy PLC function can realize 16 legs of speed and inverter control function; 3)With extremely strong anti-jamming capability; 4)Low output ratting torque0.5HZ-150%, low speed running ability; 5)Carrier adjustable by 16KHZ, completely soundless working environment; 6)Broad voltage working area, normal running in 100V-120V; |
Inverter parameter setting7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability; 8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes; 9)With perfect error protection and short circuit starting protection capability; 10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm); 11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication. |
Wiring:
Spindle's pin 1=U
Spindle's pin 2=V
Spindle's pin 3=W
Spindle's pin 4=Ground
Pls connect the 110V AC power supply input wires to the R & T terminals.
Definition of the VFD buttons
- UP: Progressively increase data or function codes.
- DOWN: Progressively decrease data or function codes.
- SET: Enter menus step-by-step, save setting parameters.
- PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
- FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
- SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
- Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key
80W water pump 3.2m 110VAC & 6m water pipe
- Pump lift length: 3.5m
- Plug: 110V US Standard plug
- Voltage:105-125VAC
- Power: 80W strong power
- Flow:3500L/H
- Size: 153x88x108mm
- Water nozzle diameter:8mm
- Rubber suction cups can be a good fit in the glass surface, to help keep it stability
80mm clamp cast aluminium bracket
- Diameter: 80mm
- Material: High quality cast aluminum (strength is higher than aluminum alloy)
- Screws:come with 3pcs installation screws
Full set ER20 collet:
Product Description
- Out dia (D1):11.5mm
- Height (H):18mm
- Hole dia (D2): 1-13mm
- Run-out tolerance 0.1mm
- First class 1065 carbon steel
- Hardened and precision ground
Size:
(comes with 1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm each 1pcs)
total are 14pcs ER20 collets in the parcel.
