Round Flange NMRV030 Worm Reducer Gearbox For Nema23 Induction Motor
Price:
24.8-26.3
MOQ:
1piece
Delivery Time:
2-7 work days
Brand:
Rattm Motor
Product Description
Round Flange NMRV030 Worm Reducer Gear Gearbox Input 9/11mm Output 14mm For Nema23 Induction Motor
Feature:
Model:NMRV030
Type:Worm-Gear Reducer
Speed Ratio:10:1 15:1 20:1 25:1 30:1 40:1
Input Bore Size:11mm, 0.43"
Output Bore Size:14mm, 0.55"
Goods Color:Blue / Silver
Advantages:
High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.
The multi-faceted installation.
Smooth transmission, low noise.

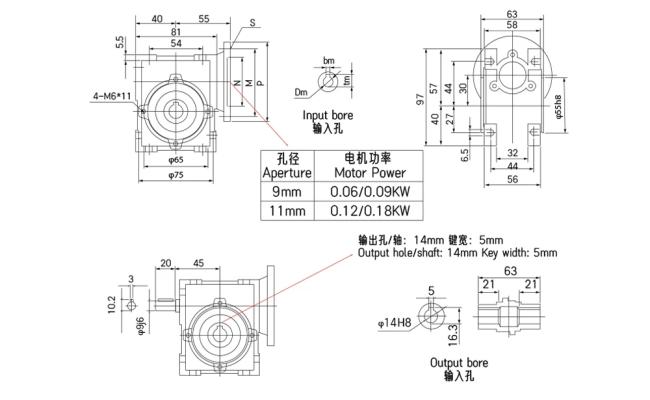

NMRV 030 Parameters (Aluminum shell weight 1.2KG)
|
Center Distacne A |
Motor Flange | The hole diameter of shaft (DM) | |||||||||||||||
|
PAM IEC |
N | M | P | bm | tm | I Transmission Ratio | |||||||||||
| 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||||
| NMRV030 | 63B5 | 95 | 115 | 140 | 4 | 12.8 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | - | - | - |
| 63B14 | 60 | 75 | 90 | ||||||||||||||
| 56B5 | 80 | 100 | 120 | 3 | 10.4 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | - | |
| 56B14 | 50 | 65 | 80 | ||||||||||||||
