NMRV040 Gear Worm Reducer 71B5 71B14 63B5 63B14 56B5 9mm 11mm 14mm Input
Price:
28.9--32.3
MOQ:
1piece
Delivery Time:
2-7 work days
Brand:
Rattm Motor
Product Description
Round Flange NMRV040 Worm Reducer Gear Gearbox 71B5 71B14 63B5 63B14 56B5 And 9mm 11mm 14mm Input Output 18mm
Feature:
Model:NMRV040
Type:Worm-Gear Reducer
Speed Ratio:10:1 15:1 20:1 25:1 30:1 40:1 etc.
Input Bore Size:9mm,11mm, 14mm
Output Bore Size:18mm
Goods Color:Blue / Silver
Advantages:
High-quality aluminum alloy enclosure, thermal performance, large carrying capacity.
The multi-faceted installation.
Smooth transmission, low noise.

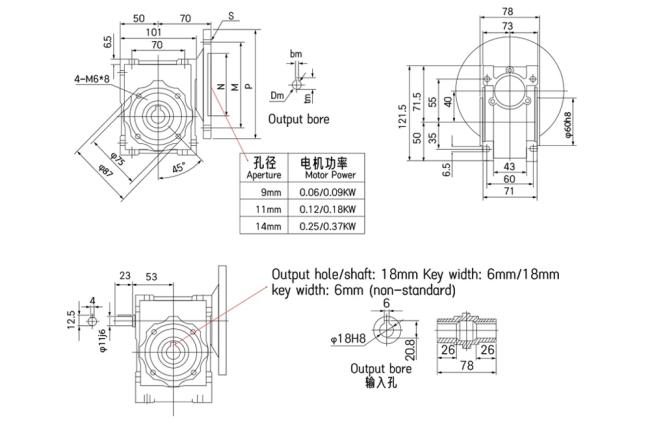

NMRV 040 Parameters (Aluminum shell weight 2.4KG)
|
Center Distacne A |
Motor Flange | The hole diameter of shaft (DM) | |||||||||||||||
|
PAM IEC |
N | M | P | bm | tm | I Transmission Ratio | |||||||||||
| 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||||
| NMRV040 | 71B5 | 110 | 130 | 160 | 5 | 16.3 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | - | - | - | - |
| 71B14 | 70 | 85 | 105 | ||||||||||||||
| 63B5 | 95 | 115 | 140 | 4 | 12.8 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 63B14 | 60 | 75 | 90 | ||||||||||||||
| 56B5 | 80 | 100 | 120 | 3 | 10.4 | - | - | - | - | - | - | - | 9 | 9 | 9 | 9 | |
