Single Shaft Worm Gear Motor DC 12V 24V Speed Reduction Motor With Metal Gearbox
Single Shaft Worm Gear Motor DC 12V 24V High Torque Speed Reduction Motor With Metal Gearbox
Good News: We have warehouse in some countries, check as bellows
| Warehouse location | Shipping Carrier | Delivery Countries | Delivery Time | Advandge |
| Germany&Czech Republic | DHL/GLS | EU Countries | 3-12 Business days |
1. Fast Delivery 2. No VAT Tax |
| United States | UPS/USPS | United States only | 3-12 Business days |
1. Fast Delivery 2. No VAT Tax |
1.Rated voltage: DC12V; No-load speed: 65RPM; Rated torque: 10kg.cm; Rated Current: 1000mA.

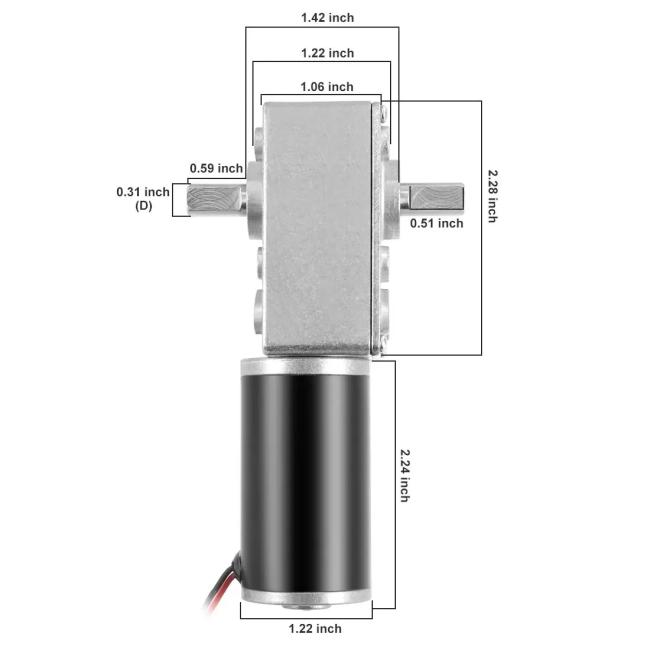

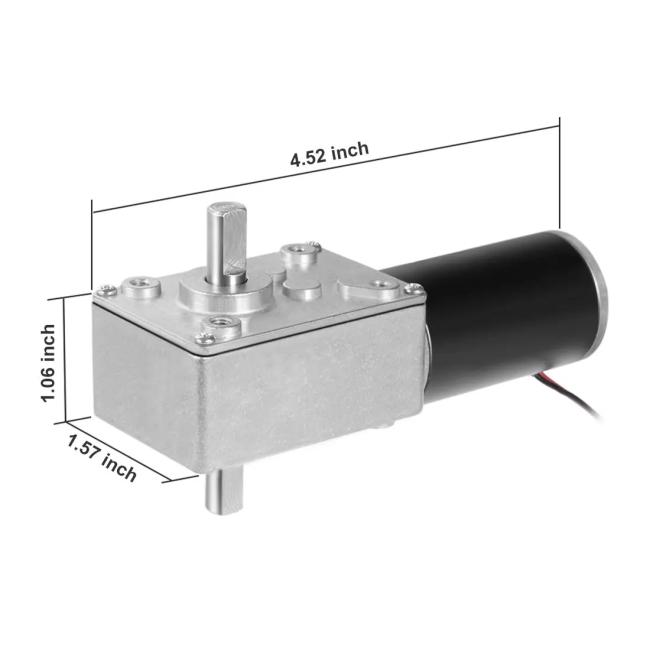

2.DC Motor Body Dimensions: 31 x 57mm/ 1.22inch x 2.24inch(D*L); Gear Box Dimensions: 58 x 40 x 35mm/ 2.28inch x 1.57inch x 1.37inch(L*W*H); Output Shaft: 8mm; Main Material: Metal, Electronic component.
3.Applications: Boat, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
4.Feature: -Motor rotation can be changed by changing the wiring-connection. -Motor will be self-locking when the power goes out. -The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
