Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403

Price Negotiable
Price: $11.4-12.8
MOQ: 1piece
Delivery Time: 2-7 work days
Brand: Rattm Motor
Product Description

Stepper motor Nema23 56mm 165 Oz-in/110Ncm/ 2.5A CNC stepper motor23HS6403





Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax

United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax



  • Stepper motor's red wire connect to driver's A+ port

  • Stepper motor's green wire connect to driver's A- port

  • Stepper motor's yellow wire connect to driver's B+ port

  • Stepper motor's blue wire connect to driver's B- port






General Specification:

Step angle accuracy:+ - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ---- +50deg

Insulation resistance:100ohm Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(23HS6403,6.35mm diameter shaft,165oz-in or 11kg.cm holding torque)

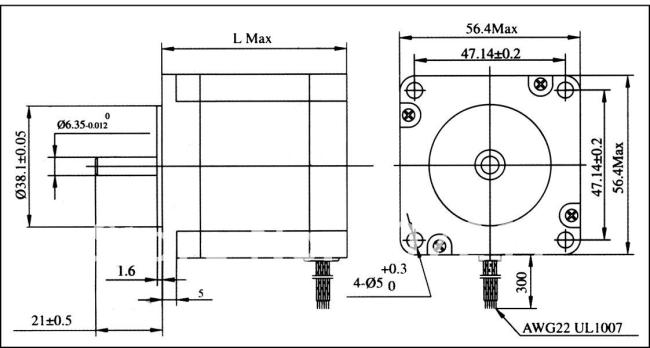

Drawing:
