12,000Gs Grated Permanent Magnetic Separator dry magnetic separator separation, reliability Removal of the intense magnetic iron contamination, weak magnetic iron pollutants minerals, chemical
Price:
Price Negotiation
MOQ:
1 pc
Delivery Time:
10-20 working day
Brand:
WeSeW
Product Description

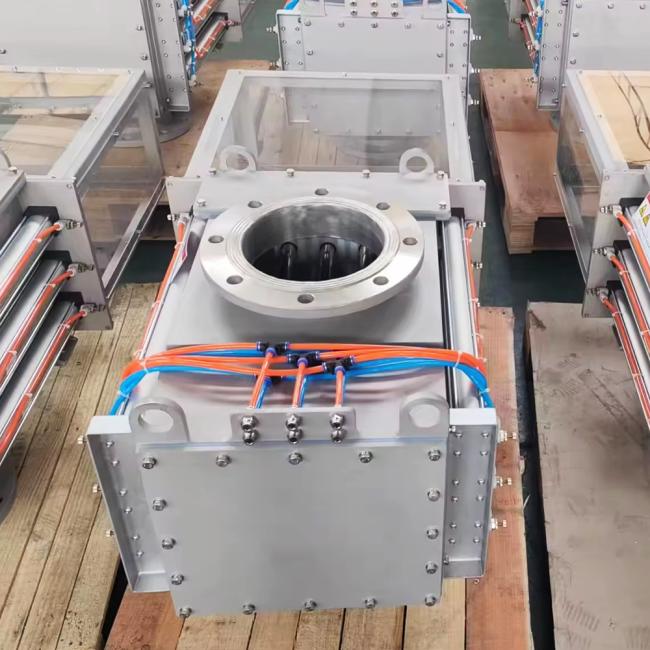

12,000Gs Grated Permanent Magnetic Separator
High-performance dry magnetic separator designed for reliable removal of intense magnetic iron contamination and weak magnetic iron pollutants from minerals, chemicals, , food products, plastics, ceramics, and building materials.
| Type | Magnetic Separator |
| Warranty | 1 Year |
| After-sales Service | Video technical support, Online support |
| Application | Minerals powder processing |
Working Principles
When material flows through the separator, ferromagnetic particles are adsorbed onto the internal permanent magnet bars, effectively separating them from the bulk material. This dry magnetic separator is particularly effective for materials with high apparent viscosity and poor fluidity.
Performance Characteristics
- Peak magnetic field intensity of 12,000Gs
- Stainless steel shell construction with strong tension and excellent separation precision
- Compact design suitable for all bulk materials with minimal stoppage
- High capture power reduces slag discharge frequency and labor intensity
- Effective removal of both intense and weak magnetic contaminants (rust, iron filings, etc.)
- Specialized for superfine powder applications and materials with viscosity/poor fluidity
- Standard operation up to 80°C, with high-temperature models available for 200°C applications
- Custom configurations available for different interfaces and magnetic density requirements
The power-efficient design features a discharge valve shape and simple circuit-controlled rotation speed. Using Nd-Fe-B rare-earth magnets with high coercive force and remanence, the separator maintains less than 5% magnetic force attenuation over 8 years, with a service life exceeding 15 years.
Application Fields
Ideal for iron removal from granules and powders in minerals, chemicals, , food processing, plastics, ceramics, building materials, coal, and refractory products. Compatible with belt conveyors, vibrating conveyors, electro-vibrating feeders, discharge chutes, and irregular hoppers.
