Custom Stainless Steel Drum Mixer Dry-Wet Mixing Equipment Weighing Hopper Platform Drum Mixer - Weighing Hopper for Food, Pharmaceutical, and Chemical Industries
Price:
US$5500~US$70,000 per pc
MOQ:
1 pc
Delivery Time:
20~35 working day
Brand:
WeSeW
Product Description
Custom Stainless Steel Drum Mixer with Weighing Hopper
Our custom stainless steel drum mixer with integrated weighing hopper platform combines precision weighing and efficient mixing capabilities for the food, pharmaceutical, and chemical industries. This advanced equipment features optimized roller design for smooth operation and automated material management, enhancing production efficiency and data accuracy.
Equipment Functions
Weighing Function
- Accurately measures weight of powdered, granular, or lumpy materials
- Automatically controls feed rates based on preset weight parameters
- Provides reliable data for automated material management systems
Mixing Function
- Drum rotation creates tumbling action for convective mixing
- Continuous rotation enhances material uniformity and distribution
- Internal structures optimize material trajectories for efficient blending
- Compartmentalized designs enable zone-by-zone mixing before full-batch blending
Industry Applications
Food Industry
Ensures precise weighing and mixing according to food formulation requirements, maintaining quality and nutritional content while meeting diverse production needs.
Pharmaceutical Industry
Weighs active ingredients and excipients with gentle blending to guarantee content accuracy. Enables strict quality control and prevents efficacy issues from composition deviations.
Chemical Industry
Precisely weighs high-purity raw materials for coatings, compound fertilizers, and chemical products. Fine-tuned mixing processes enhance product quality and market competitiveness.
Technical Specifications
| Model | HDJX-60 | HDJX-70 | HDJX-80 | HDJX-95 | HDJX-1080 | HDJX-1290 | HDJX-1450 | HDJX-1600 | HDJX-1800 |
|---|---|---|---|---|---|---|---|---|---|
| Cylinder Diameter (mm) | 600 | 700 | 800 | 950 | 1080 | 1290 | 1450 | 1600 | 1800 |
| Total Cylinder Length (mm) | 970 | 1100 | 1160 | 1380 | 1560 | 1950 | 2375 | 2520 | 2800 |
| Usable Volume (L) | 60 | 100 | 120 | 200 | 316 | 530 | 900 | 1180 | 2300 |
| Feed Port Height (mm) | 1100 | 1200 | 1200 | 1300 | 1400 | 1420 | 1800 | custom | custom |
| Discharge Port Height (mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | custom | custom |
| Cylinder Wall Thickness (mm) | 1.5 | 1.8 | 1.8 | 1.8 | 2.4 | 2.5 | 3.0 | 4.0 | 5.0 |
| Operating Voltage (V) | 220/380 | 220/380 | 220/380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Motor Power (kW) | 0.4 | 0.4 | 0.55 | 3 | 3 | 4 | 3 | 4 | 5.5 |
| Overall Dimensions (mm) | 1500×660×1300 | 1500×760×1400 | 1500×860×1400 | 2100×1050×1650 | 2100×1150×1750 | 2500×1500×2100 | 3200×1650×2450 | 3600×1850×2500 | 4300×2100×2100 |

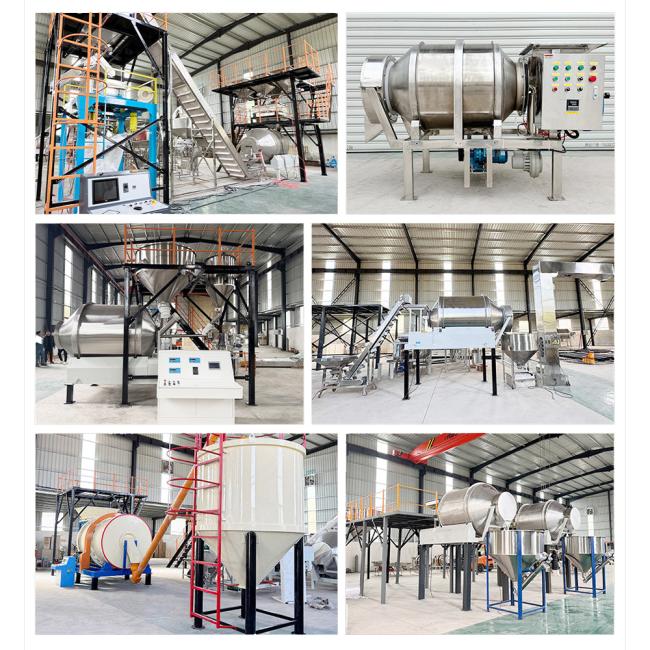

Product Gallery
