Gcr15 Taper Roller Bearing Suitable for Small and Medium-Sized Outer Dimension Market
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Product Description
| Separated | Unseparated | Test Equipment | X095A |
| Feature | Long Price,High Speed,Long Life | Quality Level | P0/P6/P5/P4/P2 |
| Annual Production Capacity | 105000 | Contract Manufacturing | OEM Service Offered,Design Service Offered |
| Factory Size | 3000 Square Meters | Transport Package | Plastic Bag, Carton |
| Trademark | UKL/Neutral/OEM | Origin | China |
| HS Code | 8482300000 | Production Capacity | 50000pieces/Month |

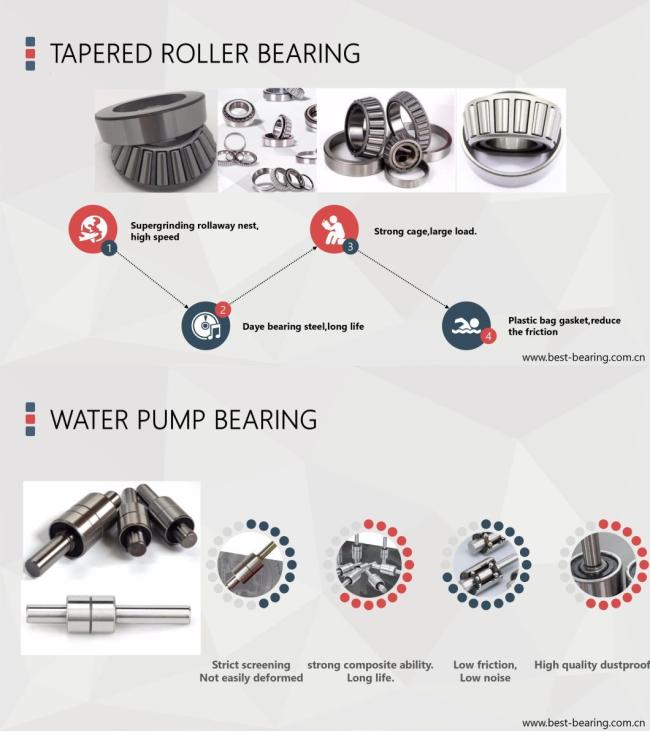

Tarpered Roller Bearing
The rolling elements of this bearing are tapered rollers. The inner and outer rings of tapered roller are of tepered raceway. They from a line contact with raceway of inner ring and outer ing(cup). These are separable type bearings. Our company can make according to special dimensional requirement. They are available in both metric, inch and non-standard dimensions.
Tarpered roller bearings are capable of carrying high radial loads, as well as axial loads in one direction, and suitable for low and medium speed applications. We can offer variants of sigle row type, double row type, four row type and precision grade P0 and higher precision grade P6.
Roller Bearing | 30200 series | ||||
| Model | d mm | D mm | H mm | W kg |
| 30202 | 15 | 35 | 12 | 0.043 |
| 30203 | 17 | 40 | 13.5 | 0.053 |
| 30204 | 20 | 47 | 15.5 | 0.126 |
| 30205 | 25 | 52 | 16.5 | 0.154 |
| 30206 | 30 | 62 | 17.5 | 0.231 |
| 30207 | 35 | 72 | 17 | 0.331 |
| 30208 | 40 | 80 | 20 | 0.422 |
| 30209 | 45 | 85 | 21 | 0.474 |
| 30210 | 50 | 90 | 22 | 0.529 |
| 30211 | 55 | 100 | 23 | 0.713 |
| 30212 | 60 | 110 | 24 | 0.904 |
| 30213 | 65 | 120 | 25 | 1.13 |
| 30214 | 70 | 125 | 26.5 | 1.26 |
| 30215 | 75 | 130 | 27.5 | 1.32 |
| 30216 | 80 | 140 | 28.5 | 1.67 |
| 30217 | 85 | 150 | 31 | 2.06 |
| 30218 | 90 | 160 | 33 | 2.54 |
| 30219 | 95 | 170 | 35 | 3.04 |
| 30220 | 100 | 180 | 37.5 | 3.72 |
| 32324 | 120 | 260 | 91 | 21.8 |
| 30300 series | ||||
| Model | d mm | D mm | H mm | W kg |
| 30302 | 15 | 42 | 14.5 | 0.093 |
| 30303 | 17 | 47 | 15.5 | 0.13 |
| 30304 | 20 | 52 | 16.5 | 0.165 |
| 30305 | 25 | 62 | 18.5 | 0.263 |
| 30306 | 30 | 72 | 21 | 0.387 |
| 30307 | 35 | 80 | 23 | 0.515 |
| 30308 | 40 | 90 | 25.5 | 0.747 |
| 30309 | 45 | 100 | 27.5 | 0.984 |
| 30310 | 50 | 110 | 29.5 | 1.28 |
| 30311 | 55 | 120 | 32 | 1.63 |
| 30312 | 60 | 130 | 34 | 1.99 |
| 30313 | 65 | 140 | 36.5 | 2.44 |
| 30314 | 70 | 150 | 38.5 | 2.98 |
| 30315 | 75 | 160 | 40.5 | 3.57 |
| 30316 | 80 | 170 | 43 | 4.27 |
| 30317 | 85 | 180 | 45 | 4.95 |
| 30318 | 90 | 190 | 47 | 5.8 |
| 30319 | 95 | 200 | 50 | 6.8 |
| 30320 | 100 | 215 | 52 | 8.22 |
| 32326 | 130 | 280 | 99.5 | 26.6 |
| 32200 series | ||||
| Model | d mm | D mm | H mm | W kg |
| 32204 | 20 | 47 | 19.25 | 0.151 |
| 32205 | 25 | 52 | 19.2 | 0.174 |
| 32206 | 30 | 62 | 21.5 | 0.273 |
| 32207 | 35 | 72 | 24.5 | 0.426 |
| 32208 | 40 | 80 | 25 | 0.576 |
| 32209 | 45 | 85 | 25 | 0.587 |
| 32210 | 50 | 90 | 25 | 0.612 |
| 32211 | 55 | 100 | 27 | 0.881 |
| 32212 | 60 | 110 | 30 | 1.91 |
| 32213 | 65 | 120 | 33 | 1.57 |
| 32214 | 70 | 125 | 33.5 | 1.58 |
| 32215 | 75 | 130 | 33.5 | 1.74 |
| 32216 | 80 | 140 | 35.5 | 2.15 |
| 32217 | 85 | 150 | 39 | 2.75 |
| 32218 | 90 | 160 | 43 | 3.42 |
| 32219 | 95 | 170 | 46 | 4.33 |
| 32220 | 100 | 180 | 49.5 | 5.14 |
| 32221 | 105 | 190 | 53 | 5.9 |
| 32322 | 110 | 240 | 85 | 18.1 |
| 32330 | 150 | 320 | 115 | 37.1 |
| 32300 series | ||||
| Model | d mm | D mm | H mm | W kg |
| 32303 | 17 | 47 | 20.5 | 0.171 |
| 32304 | 20 | 52 | 22.5 | 0.256 |
| 32305 | 25 | 62 | 25.5 | 0.366 |
| 32306 | 30 | 72 | 29 | 0.574 |
| 32307 | 35 | 80 | 33 | 0.804 |
| 32308 | 40 | 90 | 35.5 | 1.03 |
| 32309 | 40 | 100 | 38.5 | 1.4 |
| 32310 | 50 | 110 | 42.5 | 1.83 |
| 32311 | 55 | 120 | 46 | 2.34 |
| 32312 | 60 | 130 | 40 | 2.81 |
| 32313 | 65 | 140 | 51.5 | 3.75 |
| 32314 | 70 | 150 | 54.5 | 3.96 |
| 32315 | 75 | 160 | 58.5 | 5.64 |
| 32316 | 80 | 170 | 62 | 6.78 |
| 32317 | 85 | 180 | 64 | 7.33 |
| 32318 | 90 | 190 | 68 | 8.91 |
| 32319 | 95 | 200 | 72 | 10.5 |
| 32320 | 100 | 215 | 78 | 12.8 |
| 32321 | 105 | 225 | 82 | 13.8 |
| 32334 | 170 | 360 | 127 | 58.3 |
