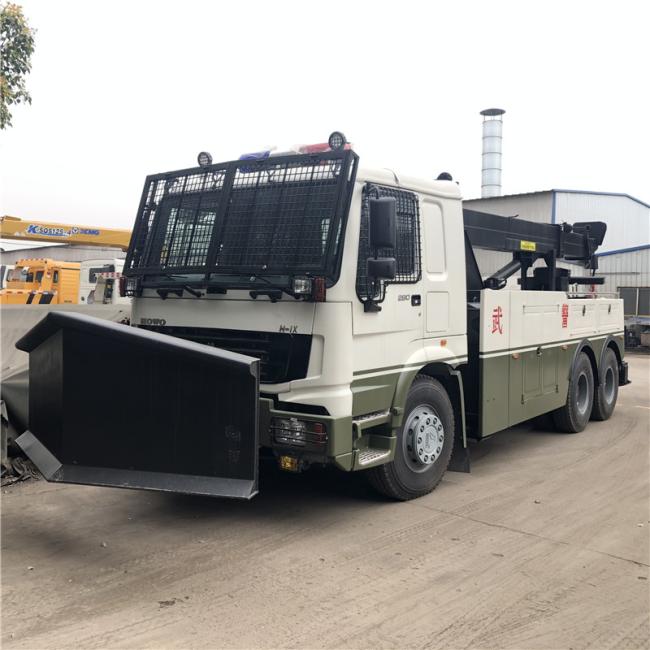

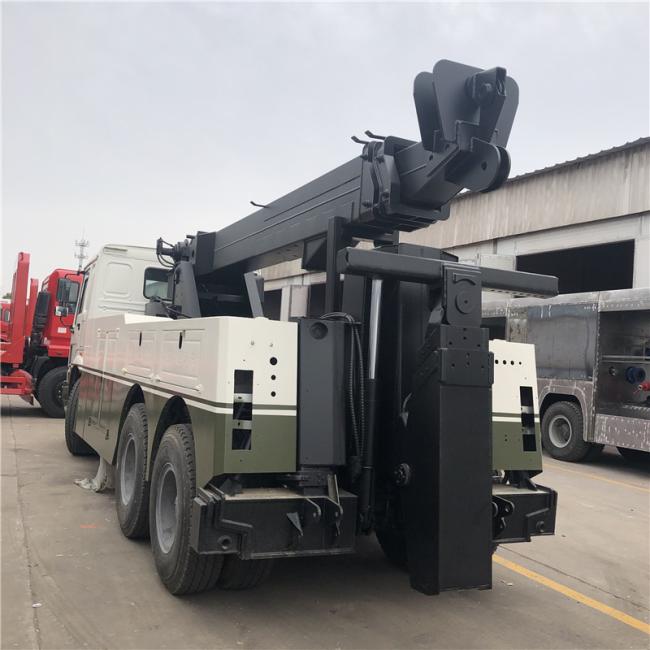

6x6 30 Ton Rotator Wrecker Underlift Recovery Truck Safe Operation

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 85 days
Brand: HOWO
Product Description
6X6 HOWO SINOTRUCK 30 TONS ROTATION TOW TRUCK ROTARY TOWING WRECKER TRUCK
Product Description

The rotator series has different capacities from 20 tons to 100 tons.



MAXIMUM STABILITY FOR MAXIMUM PERFORMANCE.



The strength and stability of the 30 tons rotator comes from the industry-leading scissor-style outriggers and unique frame design. The rotator also comes with standard joystick remote control, it supports stable and safe operation.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4, 6x4, 6x6, 8x4, 8x8.

Other special requirements you want.


Main Features
1. 15 Tons / 33,300 lbs. Planetary Winch, 2 Pcs, Total 30 Tons / 66,600 lbs. Optional Multi Drag and Turret Winches.
2. 20 Tons / 44,500 lbs. Underlift Capacity, Tow Rate At Least 40 Tons / 88,800 lbs. Underlift Boom 3 Stages.
3. Continuous Boom Rotation, Recovery Boom 3 Stage
4. Joystick Remote Control
5. Optional Aluminum Tool Boxes

Truck Specs
6x6 HOWO Rotator Truck
Overview
Name 6x6 HOWO Rotator Truck
Dimension(LxWxH) 10000x2500x3550 (mm)
Total Mass 31000Kg
Rated Payload 20000Kg
Kerb Weight 11000Kg
Passenger 3
Approach/Departure Angle 25/12
The Parameters of Chassis
Manufacture/Model HOWO
Driving Type 6*6 RHD/LHD
Wheel Base 4600+1350 mm
Gearbox HW19710, ten speed forward and two reverse, manual
Front/Rear Track 2022,2041/1830,1830(mm)
Tyre 13R22.5 triangle
The Number of Tyre 10+1(spare tyre)
Front/Rear Suspension 1500/850(mm)
The Paremeters of Engine
Manufacturer/Model Weichai/WD615.47
Rated Power 371hp
Fuel Type Diesel oil
Displacement/Capacity 9726ml
Emission Standard Euro 2
Cylinder Straight/6/intercooling
Max. torque 1500N.m
Velocity 2200rpm

Body Specs
30 Tons Rotator Wrecker Specs
No. Item Content Details Unit
1 Name 30 Tons Rotator Wrecker
2 Winches 2×15 Tons Main Winches   Additional winches are optional
3 Under lift Under lift G70 material, 3 stage
4 Boom Boom G70 material, 3 stage
5 Legs Hydraulic

Hydraulic rear and front

supporting legs


6 Frame LED Lights Frame, full size
7 Toolbox On Both Sides

Carbon steel Q345R,

with stainless steel handles

Aluminum tool box optional,

extra USD5,000

8 Hook-Ups Air and Electrical Hook-Ups 12V or 24V
9 Control Remote Wireless Control Button remote control

Joystick type chest mount,

English Display, extra USD2,000

    Hand Manual Control

On Lift and Right Sides,

English Indication


10 Hydraulic Parts Hydraulic Pump Double pump
    Hydraulic Hose
    Hose Connector
    Valves Italy
    Cylinders
11 Attachments 5 Sets of Forks 4 sets for axle, 1 set for suspension
    U shape tyres holder 1 set
    Safety Chains 2 pcs
12 Painting and Indication Electrophoresis Painting

Toolbox EP painting, other

normal painting

All subframe with boom and

under lift EP painting optional,

extra USD1,500

    Surface Painting Epoxy Resin
    Indication English Indication and Marks
Specifications
1 Underlift Retracted Lifting Capacity 20000 kg
    Retracted Length 1746 mm
    Extended Lifting Capacity 7310 kg
    Extended Length 3492 mm
    Undelift Tilt -10 °
    Towing Capacity 40 ton
2 Boom Retracted Lifting Capacity (45°) 30 ton
    Extended Lifting Capacity (45°) 9 ton
    Max. Lifting Tilt 65 °
    Max. Lifting Height 11529 mm
    Boom Hook(Max. Lifting Height)Away from Underlift(Folding) 5219 mm
3 Main Winches Quantity 2 pcs
    Pulling Power 15 ton
    Type Planetary
    Steel Wire Length 60 m
    Steel Wire Diameter 18 mm
