2000L FOTON FORLAND Water Bowser Water Tank Truck With 47hp Diesel Engine
The water tank truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water trasnpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.
Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.

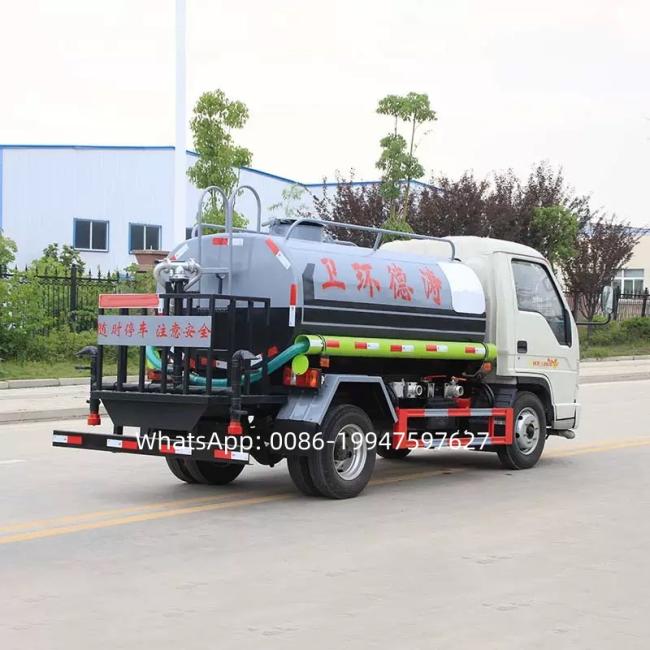

2000L FOTON FORLAND water bowser water tank truck.
Main specification :
| Complete Vehicle Parameter | |
| Vehicle | FOTON FORLAND water tank truck |
| Overall dimensions (mm) | 4995 x 1690 x 2080 |
| Water tank volume (L) | 2000 |
| Gross Vehicle Weight (kg) | Appro × 4545 |
| Net weight (kg) | Appro × 2545 |
| Loading (kg) | Appro × 2000 |
| Wheel base (mm) | 2600 |
| Max speed (Km/h) | 80 |
| FORLAND Chassis Parameter | |
| Cabin | Single row cabin, power steering, air conditioner, 2 passengers, left hand drive. |
| Drive form | 4×2 |
| Engine |
Brand : QUCHAI Model : N485QA Engine power: 47hp Fuel type : diesel Displacement : 2156ml Emission standard : Euro 3 |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 6.00-15 |
| No.of tires | 6pcs, with a spare tire |
| Water Tanker Parameter | |
| Characteristics |
1) Carbon steel material water tank, thickness 5mm. 2) With water pump. 3) With rear working platform. 4) With suction pipe. 5) With fire connector. 6) With gravity valve. |
| Special performance |
1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, spraying water. 4) Water column can be adjusted into mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. 7) Vertical suction 6-8 m. 8) Drainage time <5min, flow rate 90m3/h. |
| Applicable scope |
1. for a variety of road cleaning 2. City green sanitation 3. Trees, green belt and lawn watering 4. High altitude building rinse |
Pictures:
