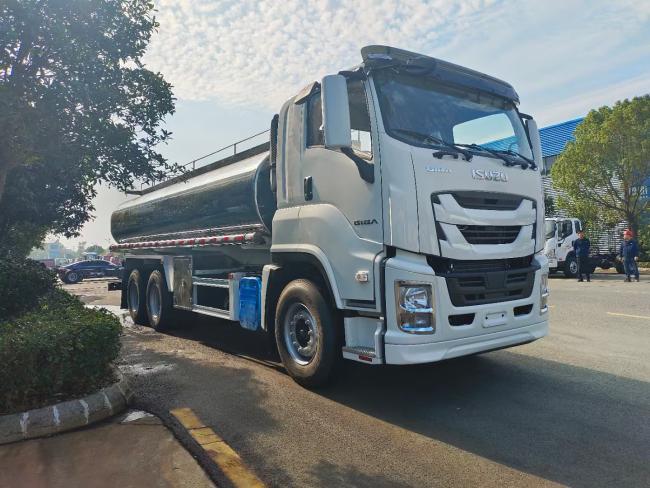

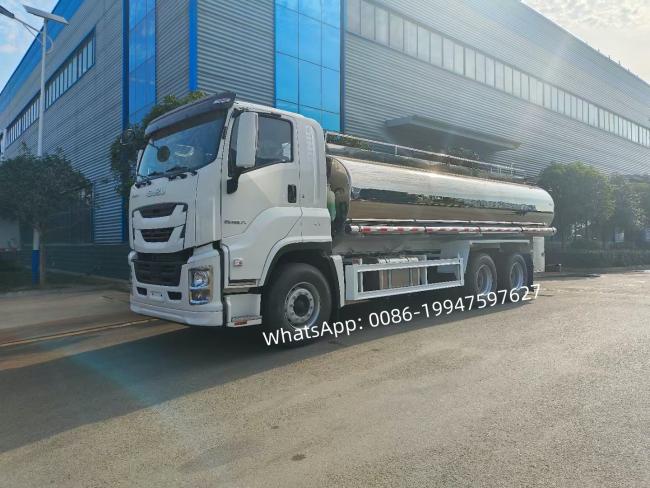

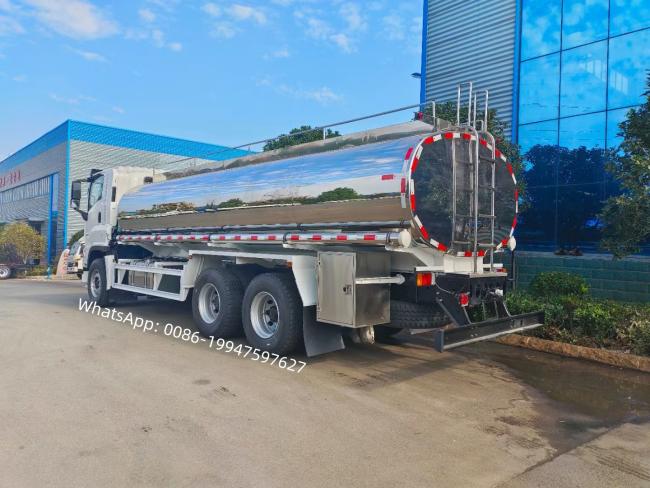

10 Wheels 6X4 ISUZU Truck With 20000 Liter Stainless Steel Milk Tanker
10 wheels 6X4 ISUZU truck with 20000 liter stainless steel milk tanker.
Main specification :
| Complete Vehicle Parameter | |
| Vehicle | ISUZU milk tanker truck |
| Manufacturing year | 2025 - the latest, brand new |
| Overall dimensions (mm) | 10200 x 2500 x 3150 |
| Milk tanker (L) | 20000 |
| Gross Vehicle Weight (kg) | Appro × 31625 |
| Net weight (kg) | Appro × 11430 |
| Loading (kg) | Appro × 20000 |
| Wheel base (mm) | 4650 + 1370 |
| Max speed (km/h) | 90 |
| ISUZU Truck Chassis Parameter | |
| Cabin | FVZ cabin, a sleeper, power steering, A/C,central lock, electric window, 3 passengers, left hand drive. |
| Traction system | 6×4 |
| Engine |
Brand:ISUZU Model: 6HK1-TCG60 Engine power : 300hp Type: diesel, 6 cylinder, turbocharged,DPF. Displacement: 7.8L Emission standard : Euro 6 |
| Transmission | 9 forward , 1 reverse, manual operated |
| Tire model | 295/80R22.5 |
| No.of tires | 10+1pcs |
| Milk Tanker Parameter | |
| Standard configuration |
1. Capacity: 20000 liters. 2. Inside material: food grade stainless steel 304-2B, thick 4mm. 3. Outside: stainless steel mirror finish, thick 2mm. 4. The insulation layer is 80mm thick polyurethane. 5. Divided into 4 compartments, each compartment has CIP cleaning and steam cleaning. 6. Equipped with stainless steel pump, to load and unload milk. 7. Finish: the interior of the milk tank is very smooth and high polished, so it have not any sharp angles. 8. Outlet: butterfly valve at the rear of milk tank. 9. Inlet: butterfly valve with a union end. 10. Manhole: with fixes deep stick to the manhole and 430 mm diameter. 11. Accessories: stainless steel ladder to the top of milk tank and anti slippery walkway . |
| Performance | The heat preservation effect can keep <1 ºC in 24 hours. |
