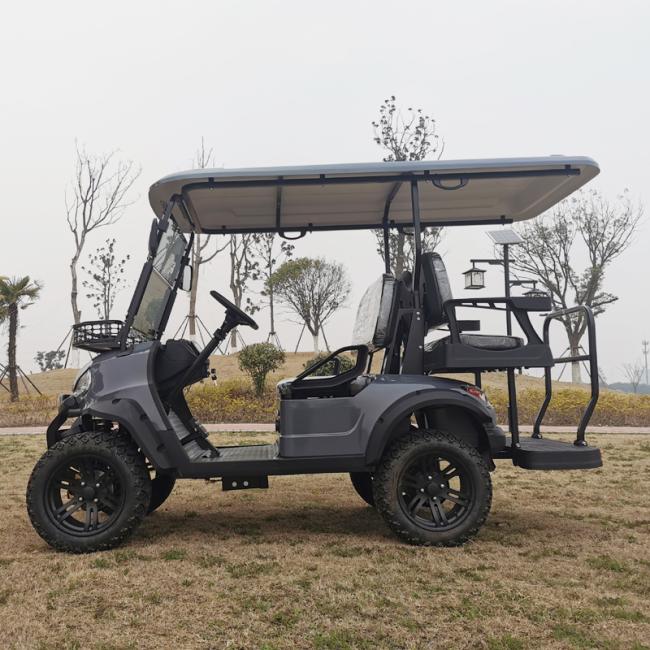

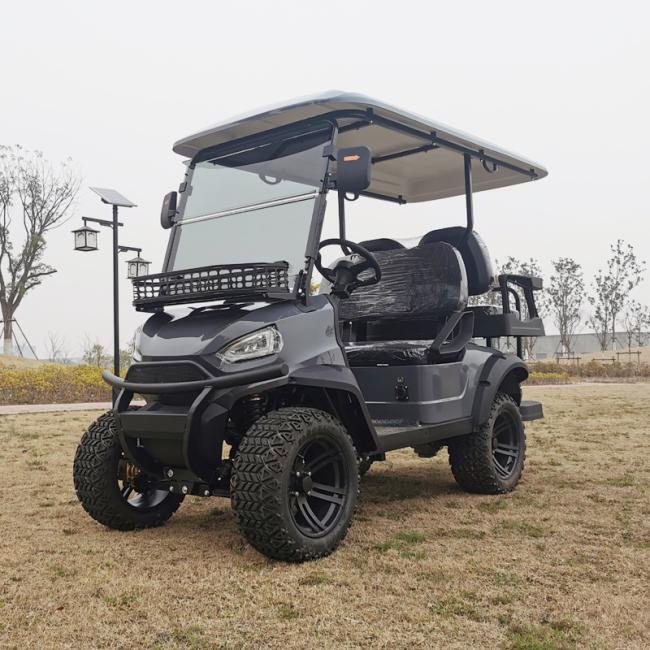

Electric Vehicle 72V 84AH Golf Cart 4 Seater Street Legal Lithium Battery 2980x1350x1950
Price:
$4,367.00/units 1-5 units
MOQ:
1 set
Delivery Time:
Negotiable
Product Description
Product Description

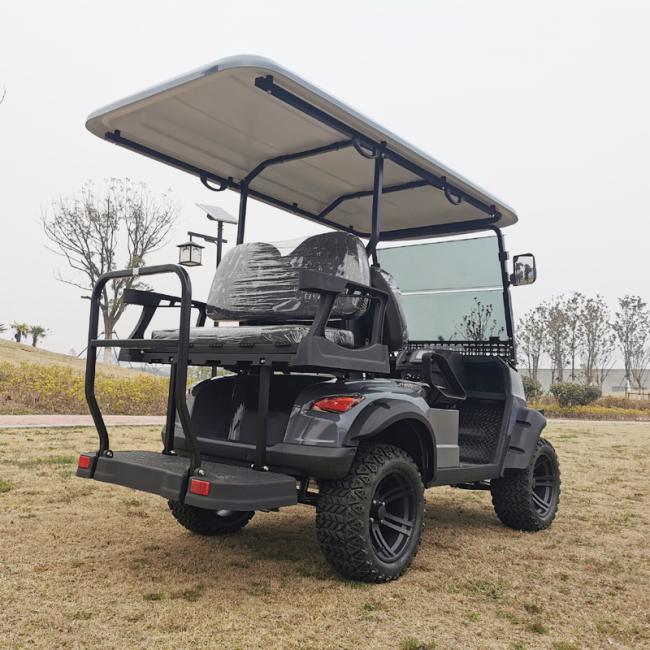

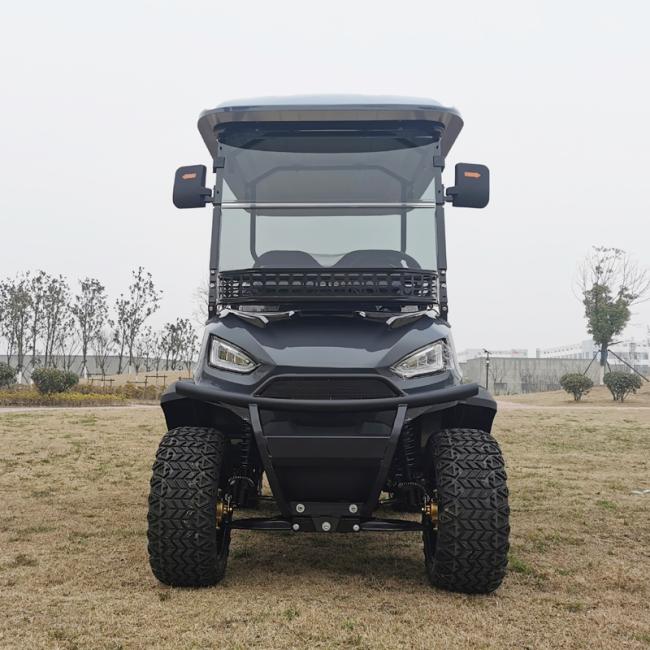

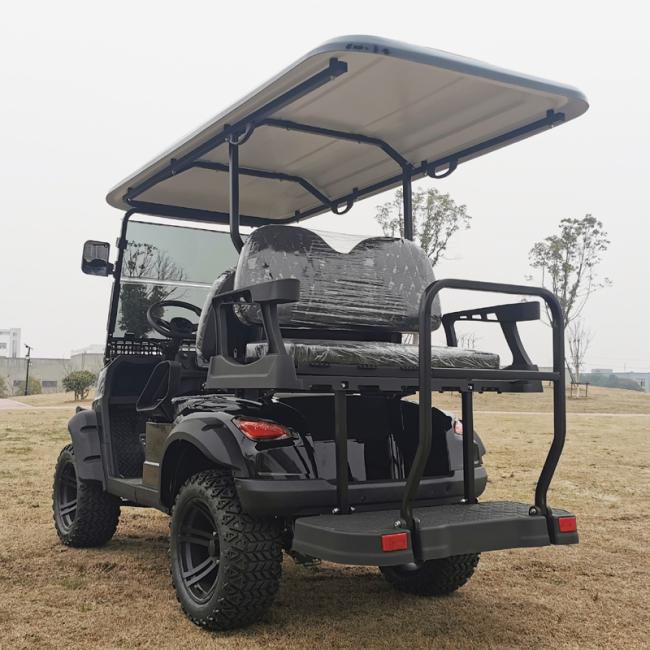

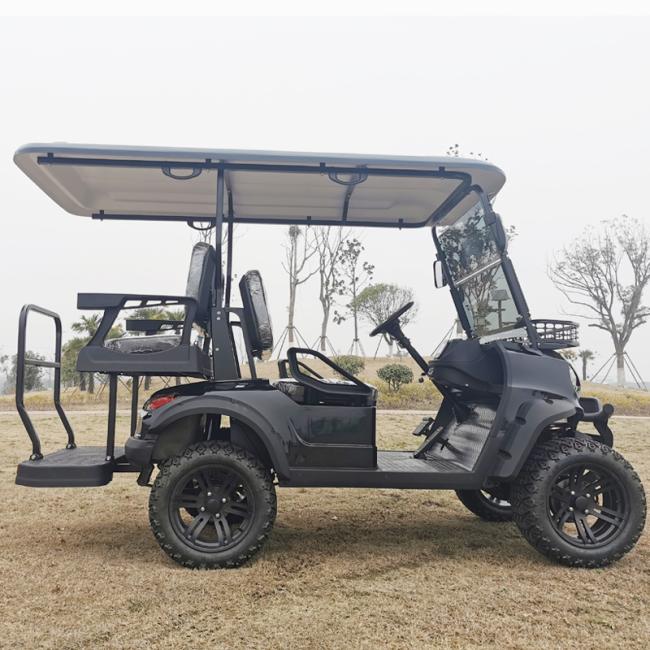

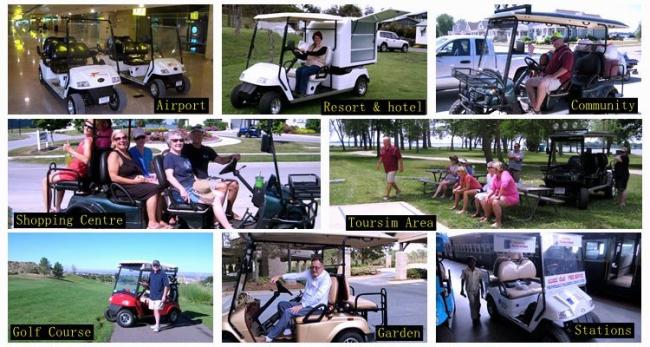

| Product Application They is a 4 Seats Sports Utility Vintage Street Legal Electric Golf Cart Vehicles with rear facing flip flop seat, it's powered by lithium battery and 72V AC motor, the maximum power can be 7KW. The rear flip flop seat can be either used for people moving or cargo delivery. It has front MacPherson independent suspension, 4 wheel hydraulic brake with front disc brake, all LED light, digital meter and many other features. The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc.. |
| SPECIFICATIONS OF 4 Seats Sports Utility Vintage Street Legal Electric Golf Cart Vehicles LS2020ASZ | |||
| Key Components | Controller | SME Brand, SME or China Local Brand | |
| Motor | 4KW/5KW/7KW AC motor | ||
| Battery | 72V84AH Lithium Battery | ||
| Performance and Dimensions | Passenger Capacity | (2+2) | |
| Range (Loaded) * | 90-100kms | ||
| Max.speed | 35-45km/h | ||
| Min. Turning Radius | 3.7m | ||
| Max. Gradeability | 20%-30% | ||
| Max. Loading Weight | 320kgs | ||
| Net Weight | 510kgs | ||
| Overall Dimensions | 2980X1350X1950mm | ||
| Body and Frame | |||
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating | ||
| Body and Roof | PP plastic front body and rear body; PP vacuum form roof | ||
| Windshield | Organic plastic windshield, splited tinted | ||
| Roof supports | Carbon Steel, powder coated | ||
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | ||
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | ||
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | ||
| Side trim | Plastic | ||
| Sider mirror | 2pcs, foldable | ||
| Electric System | |||
| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | ||
| Backup Buzzer | 12V | ||
| Digital Meter | LCD screen, with speedometer, odometer, battery power meter and various indicators | ||
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A | ||
| Steering, Brake, Transmission and Suspension | |||
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Brake system | 4 Wheels hydraulic front disc rear drum brake, regen brake | ||
| Accelerator | Stepless speed change | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio12.49:1 | ||
| Suspension system | Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber | ||
| Wheel & Tyre | 12x7 aluminum rim & 23*10.5-12 Tire | ||

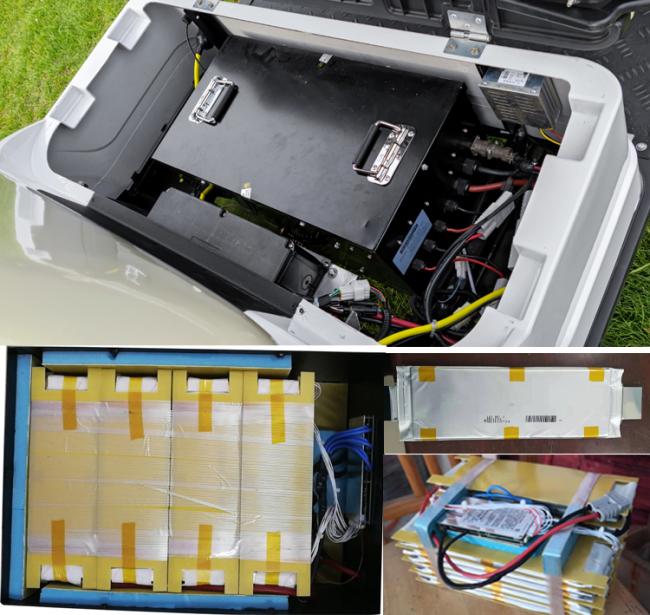

| 3 Years Warranty Lithium Battery LG pouch cells made lithium ion battery pack. 72V/120Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App for easy operation. 4000 times life cycles based on 99% DOD. 3 Years warranty to be provided!Lower life cost, you are deserved to have! |

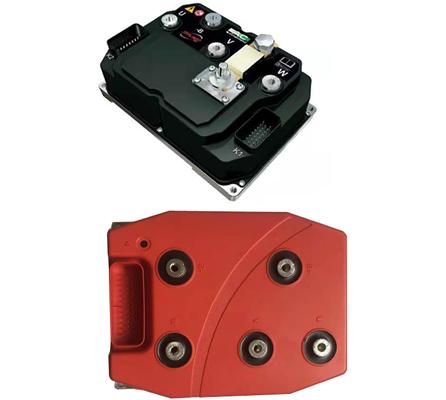

| 72V AC Curtis or SME Controller Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function. High and Stable Quality, Powerful, Global 2 Years Warranty |
| 72V 4KW, 5KW or 7KW AC Motor Very Powerful and Maintenance Free AC motor. Motor power varies from 4KW, 5KW and 7KW. With 7KW motor, the climbing ability can be 35%. |

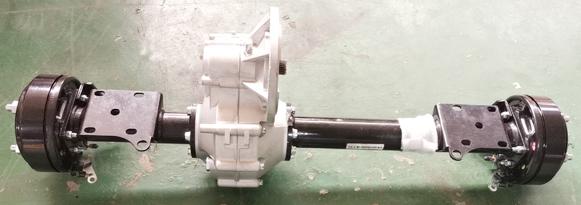

| High Quality Rear Axle Rear axle with aluminum case, durable and silent |
| Details Make Difference |
| Front Disc Brake | Front Macpherson Suspension | Sports Steering Wheel |
| Digital Meter | LED Headlight | LED Taillight |

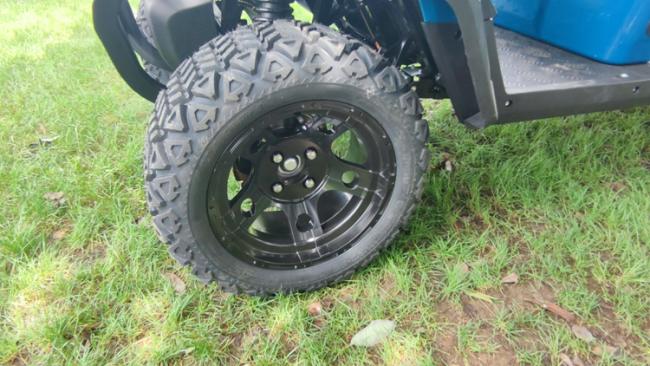

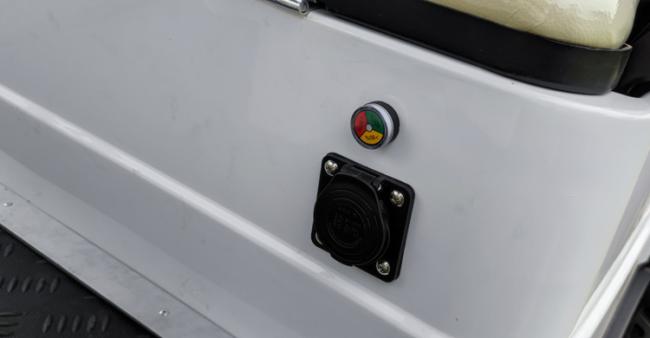

| 12' Aluminum Rim | Charging Receptacle | Split Tinted Windshield and Side Mirror |
| Optional Accessories For Choose |

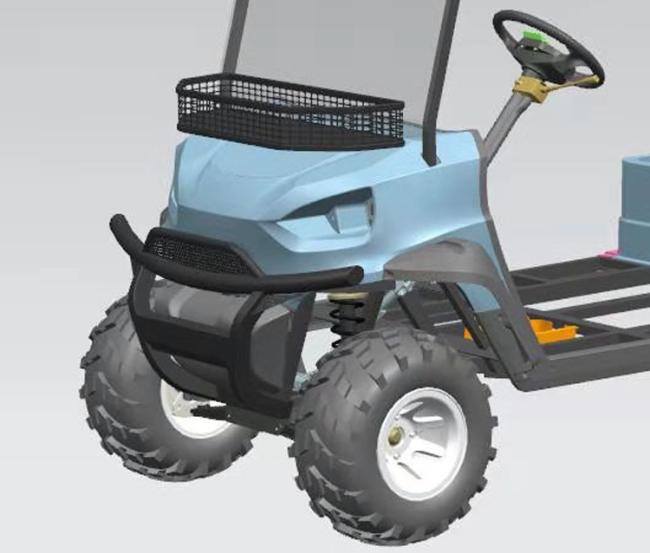

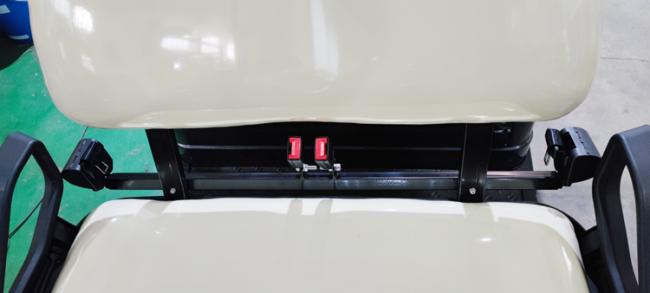

| 2-point Seatbelt | 2-tone Color Seat | Front Brush Guard and Basket |

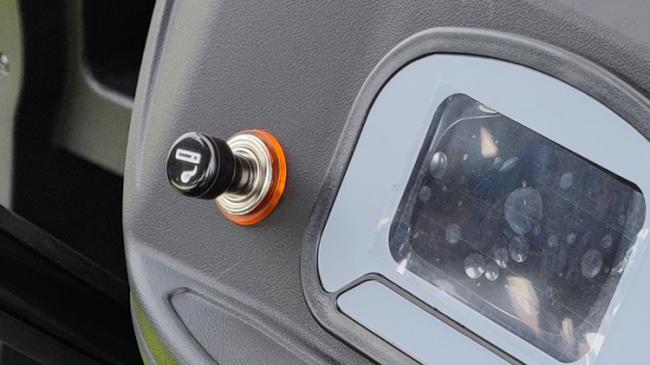

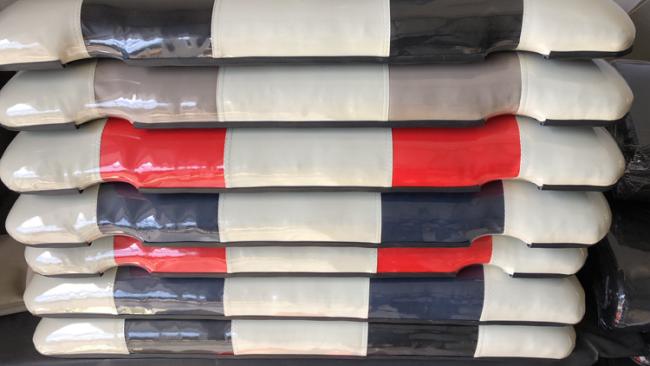

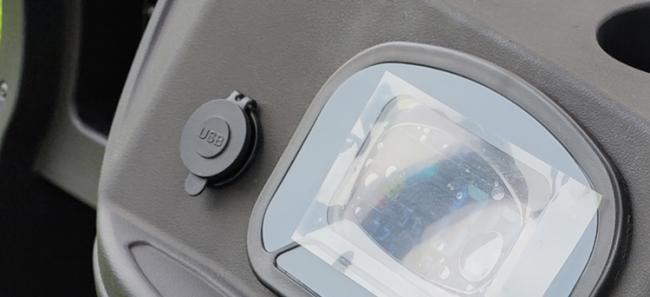

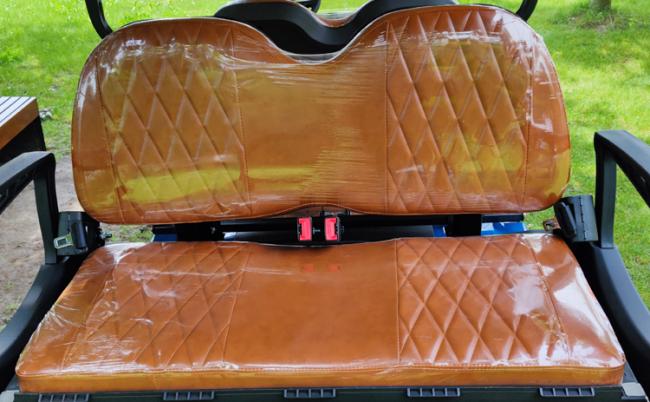

| Sewed Pattern Seat | USB Port | 12V Plug |

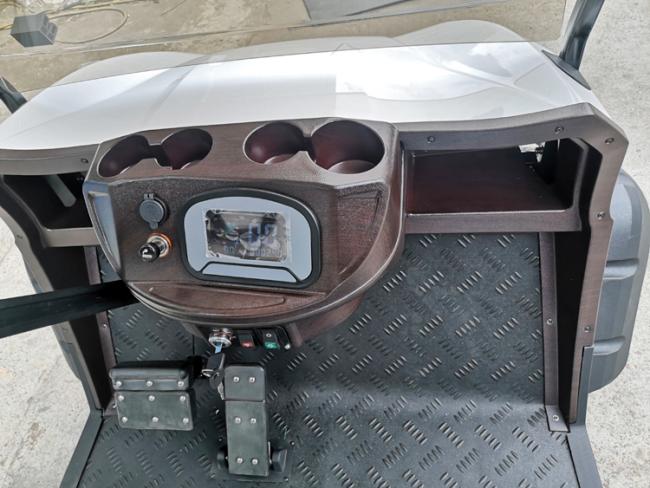

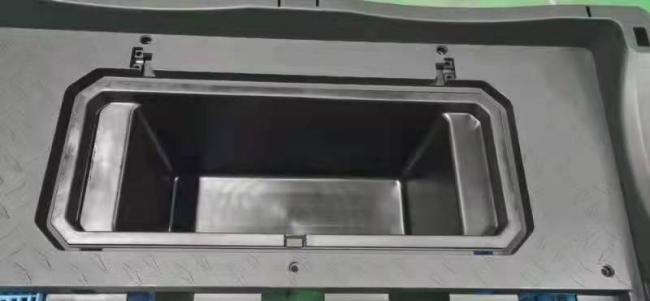

| Rear Under Seat Ice Bucket | Wooden Finish Dashboard | 14' Wheel. |
| Let us know if you want anything specially! |

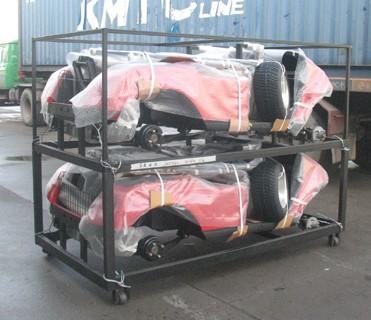

Packing & Delivery
| |||||||||||||||||||
