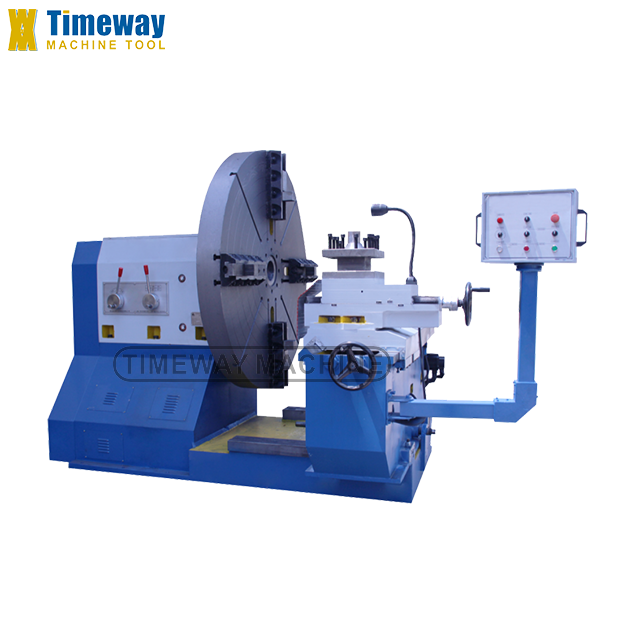

Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Price:
$25,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description
Key Features:
1. The machine is large floor lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel forgings and non-ferrous disc type rotating body metal parts machining;
2. All guideways are quenched and hardened, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed;
3. To complete the cylindrical,conical,end,grooving,etc,can meet part of the rough and fine turning;
4. All the gears are precision grounded, with long life and low noise.
1. The machine is large floor lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel forgings and non-ferrous disc type rotating body metal parts machining;
2. All guideways are quenched and hardened, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed;
3. To complete the cylindrical,conical,end,grooving,etc,can meet part of the rough and fine turning;
4. All the gears are precision grounded, with long life and low noise.
Specification | Unit | CL6025 | CL6030 |
Max. swing diameter over bed | mm | Φ 2500 | Φ 3000 |
Center high | mm | 1250 | 1500 |
Max. length of workpiece | mm | 700 | 700 |
Max. weight of workpiece | kg | 5000 | 5000 |
Chuck diameter | mm | Φ 2000 | Φ 2500 |
Spindle speed range | r.p.m | 8-163 | 12-66 |
Max. longitudinal travel | mm | 1250 | 1500 |
Max. cross travel | mm | 320 | 320 |
Main motor power | kw | 15 | 18.5 |
