Heavy Duty Bed Type Universal Milling Machine BM715 with Table Travel of 1500x670x700mm

Price Negotiable
Price: $36,800.00/sets 1-2 sets
MOQ: 1 set
Delivery Time: Negotiable
Brand: TIMAC
Product Description
Main Outlook

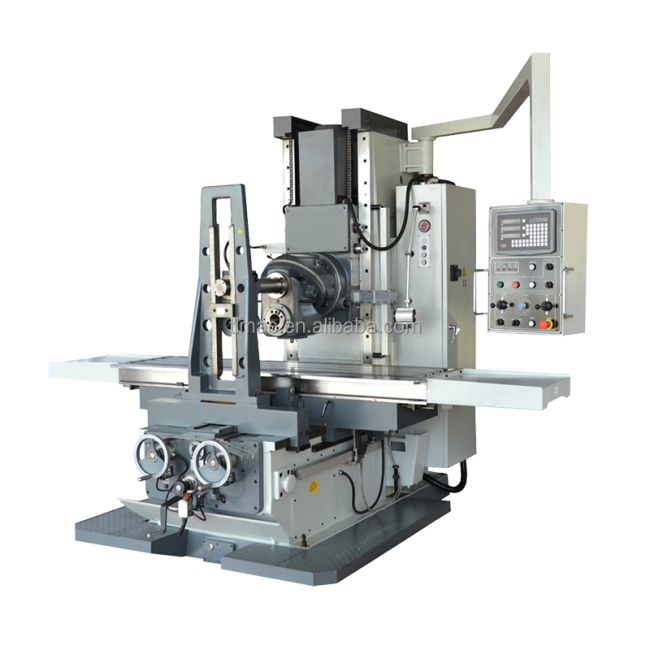

Bed type universal milling machine BM715









Product Description



Features:

Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.

1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.

2. Extra wide guideways ensure maximum stability and precision at high loads.

3. Extra long table travel distance (1500mm) and large table setup area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.

4. Wide spindle speed range from 40 to 1600 rpm.

5. Infinitely variable linear and cross feed.

6. Control panel on a long extending arm that can be ideally positioned by the operator.



Specification Unit BM715
Table
Working surface (L×W) mm 2100×500
T-slot (W×No.) mm×piece 20×4
Max. travel Longitudinal mm 1500
Cross mm 670
Long & cross power feed Change no.   stepless
Change range mm/min 20~1800
Long & cross rapid feed   mm/min 3500
Head
Travel (from table surface) Vertical mm 0~670
Horizontal mm 8~708
Vertical power feed Change no. No step
Change range mm/min 10~900
Vertical rapid feed mm/min 1750
Spindle
Distance from spindle axis to guideway of column mm 610
Spindle revolution Change No.   12 steps
Change range r.p.m. (60HZ)40-1600 (50HZ)35-1345
Taper of spindle   7:24
Motor
Spindle drive motor kW 7.5
Feed motor kW (AC) 2
Cooling pump motor W 550
Lubricant pump motor W 120
Necessary floor space mm 4925×2380
Machine net weight Kg 7300
