Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Competitive Chinese CNC Lathe Fanuc/GSK/Siemens Mitsubishi Heavy Duty Horizontal Lathe
Price:
$56,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC TIMEWAY
Product Description
Products Description

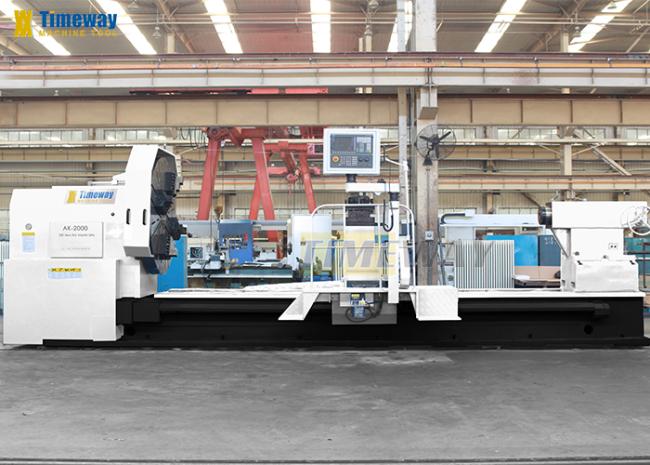

CNC Heavy Duty Horizontal Lathe
Specification | Unit | AK-2000 |
Max. swing over bed | mm | 2000 |
Max. swing over cross slide | mm | 1600 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Chuck size (4-jaw) | mm | 1600 |
Loading capacity | tons | 16 (opt: 20) |
Spindle bore | mm | 100 |
X/Z-axis rapid feed speed | m/min | 4000/6000 |
Cross travel (X) | mm | 850 |
Main motor power | kw | 30 |
Machine weight | kg | 15000/17200/19400/21560/26000/30400/34800/- |
Machine length | mm | 6400/7400/8400/9400/11400/13400/15400/- |
Machine width | mm | 3200 |
Machine height | mm | 2950 |
* FANUC/GSK/SIEMENS CNC system
* 4-jaw chuck
* 4-station electric tool-post
* Work lamp
* Cooling system
* Manual pulse(MPG)
* Dead centers
* Oil gun
* Pilot lamp
* Automatic lubrication pump
* Electric moving tailstock
* Tools & tool-box
* Leveling wedge & bolts
* Operation manual (English)
* 6/8-station tool-post
* Steady rest
* Roller support
* Full guard
* Live centers
* Air conditioner
* Chip conveyer
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
