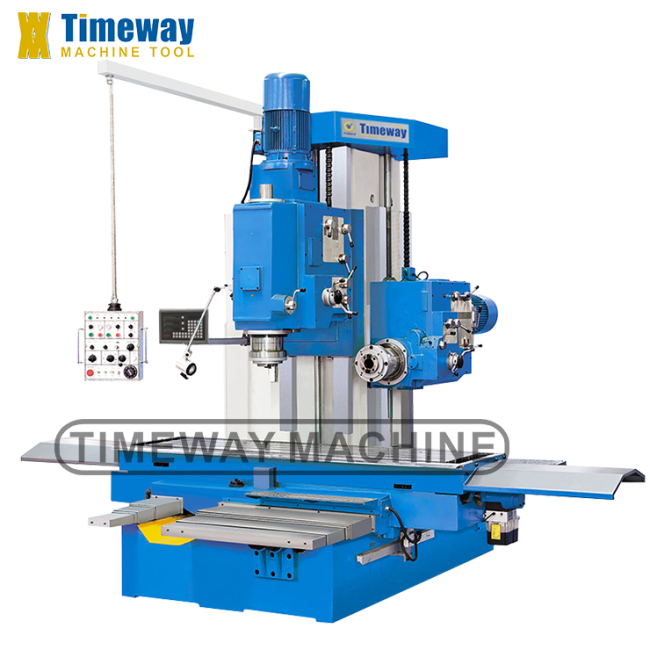

2400mm x 650mm Worktable Size Bed-type Boring and Milling Machine with Single Spindle
Price:
$35,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description
Specification | Unit | BM706 |
Table size | mm | 2400x650 |
Table travel on X, Y | mm | 1630x600 |
Vertical travel of horizontal spindle | mm | 800 |
Vertical travel of vertical spindle | mm | 800 |
Min. distance from horizontal spindle axis to table | mm | 20 |
Number/width/distance of T-slot | mm | 5-22-100 |
Spindle taper | (V)ISO50, (H)ISO50 | |
Spindle quill travel | mm | (V)190, (H)190 |
Spindle speed range | r.p.m | (V)23-1000, (H)23-1000 |
Spindle speed steps | (V)12 (H)12 | |
Longitudinal, cross, vertical feed speed range stepless | mm/min | 20-2200 |
Longitudinal, cross, vertical rapid feed speed range | mm/min | 2200 |
Quill auto-feed speed steps | (V)6 (H)6 | |
Quill auto-feed speed range | mm/r | (V)11 (H)11 |
Spindle motor power | kw | (V)11 (H)11 |
Feed motor power | kw | 4.4 |
Max. load of worktable | kg | 3000 |
Overall dimension(LxWxH) | mm | 4100x3700x4250 |
Net weight | kg | 17000 |
