Heavy-Duty Workpiece Heavy Duty Machining 7355x1393x1537 mm Horizontal Lathe Machine
| Horizontal Lathe Giant Parallel Heavy Duty Lathe ∴ AL-630Bx4000 ∴
|
| Cutting external & end surface:
| Measuring accuracy: |
|
|
|
| Standard accessories:
| Optional accessaries: |
|
|
|
| Technical Parameter |
| Specification | Unit | AL-630B | AL-800B | AL-940B |
| Max. swing over bed | mm | 630 | 800 | 940 |
| Max. swing over carriage | mm | 350 | 520 | 660 |
| Max. length of workpiece | mm | 750/1000/1500/2000/3000/4000/ 5000/6000/7000/9000/10000 | ||
| Max. turning length | mm | 600/850/1350/1850/2850/3850 /4850/5850/6850/8850/9850 | ||
| Max. swing in gap | mm | 830 | 1000 | 1140 |
| Effective width of gap | mm | 300 | ||
| Width of bed | mm | 550 | ||
| Spindle nose | - | C11 | ||
| Spindle bore | mm | 110 | ||
| Taper of spindle | - | 1:20/120 | ||
| Range of spindle speed | rpm | 7.5-1000 | 6-800 | |
| Number of spindle speed | kinds | 18kinds | ||
| Longitudinal feed range | mm/r | 64kinds, 0.1-24.32 | ||
| Cross feed range | mm/r | 64kinds, 0.05-12.16 | ||
| Screw pitch of leadscrew | mm | 12 | ||
| Number and range of metric threads | mm | 50kinds, 1-240 | ||
| Number and range of inch threads | T.P.I. | 26kinds, 14-1 | ||
| Number and range of module threads | mm | 53kinds, 0.5-120 | ||
| Number and range of diametrical threads | D.P. | 24kinds, 28-1 | ||
| Rapid traverse speed of carriage | mm/min | 4000 | ||
| Max. travel of cross slide | mm | 440 | 540 | 570 |
| Max. travel of top slide | mm | 200 | ||
| Section of tool shank | mm | 32 | ||
| Diameter of tailstock quill | mm | 100 | ||
| Travel of tailstock quill | mm | 250 | ||
| Taper of tailstock quill | - | MT5 | ||
| Main motor power | kw | 11 | ||
| Machine length | mm | 2958/3275/3725/4225/5225/6275/ 7355/8355/10275/12275/- | ||
| Machine width | mm | 1393 | 1473 | 1480 |
| Machine height | mm | 1537 | 1622 | 1690 |
| Features: |
These horizontal gap bed lathes are suitable mainly for turning internal and external cylindrical , Conical and other swing surface as well as various metric ,inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways.
1. The side wall of bed is constructed with double-rib Plates,and the shape of internal ribs is of box type and bevel ribs combination.The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.
2. On apron, there is a device ,operated by a single lever, used for rapid traverse of the carriage . Spindle’s braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user’s choice.
3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.
4. On user’s demand, we can equip the lathe with automatic feeding mechanism .The top slide can be used independently for turning of short cone. In combination with longitudinal feeding , it can also turn long taper surface.
| Machine details: |
| Spindle box:
Heavy duty horizontal lathe have wide spindle speed 7.5-1000rpm with 18steps through two handles. So according to different processing requirements, you can choose the different spindle speed. |  |
 | 4-jaw independent chuck:
The horizontal gap bed lathe standard is equipped with 3-jaw chuck, the 4-jaw independent chuck is optional. |

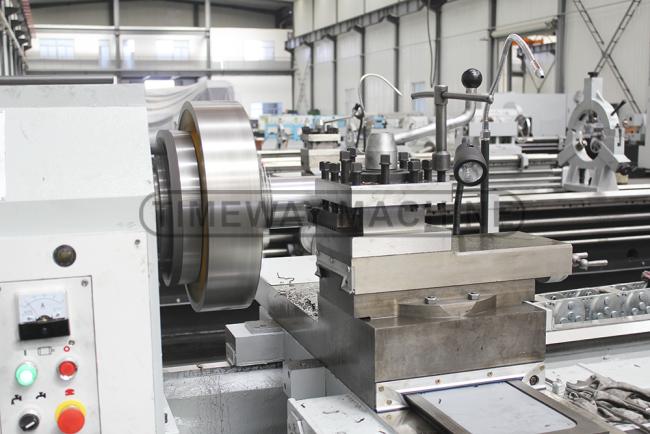

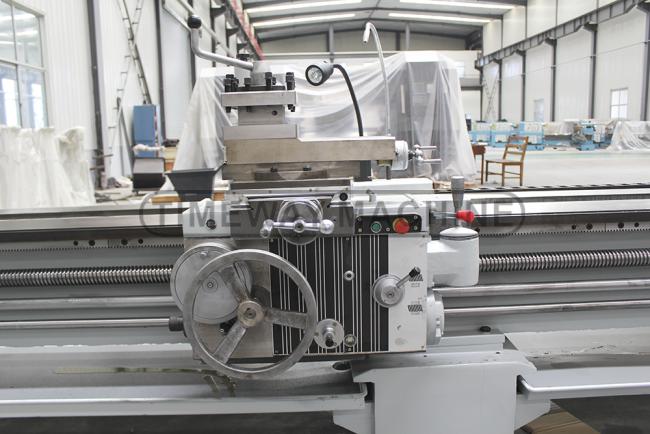

| Carriage:
Cross and longitudinal can move by manual, automatic feed and rapid feed. |  |
 | Follow rest:
The gap bed lathe standard follow rest, when machining thin and long parts, the follow rest can support the parts for more accuracy. |
| Tailstock & steady rest:
Standard manual tailstock, and move right and lift through the gear and rack. |  |
 | Electrical cabinet:
Hunging-type electrical cabinet make the lathe more compact and beautiful. |
| Electrical components:
The lathe adopts China famous-brand electrical components with CE-marks. The client also choose the Schneider or Siemens components.
|  |

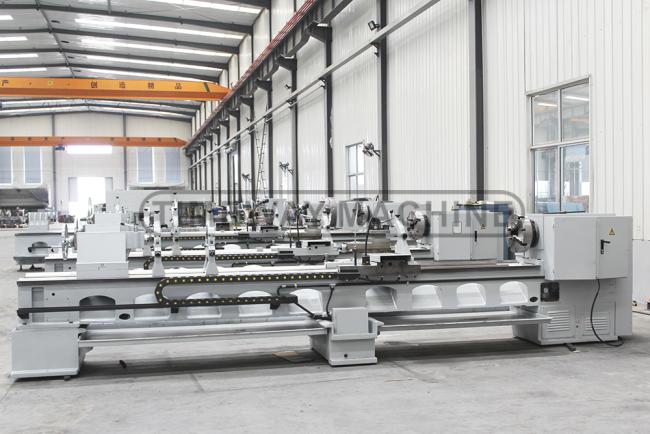

| Finished machine: |
