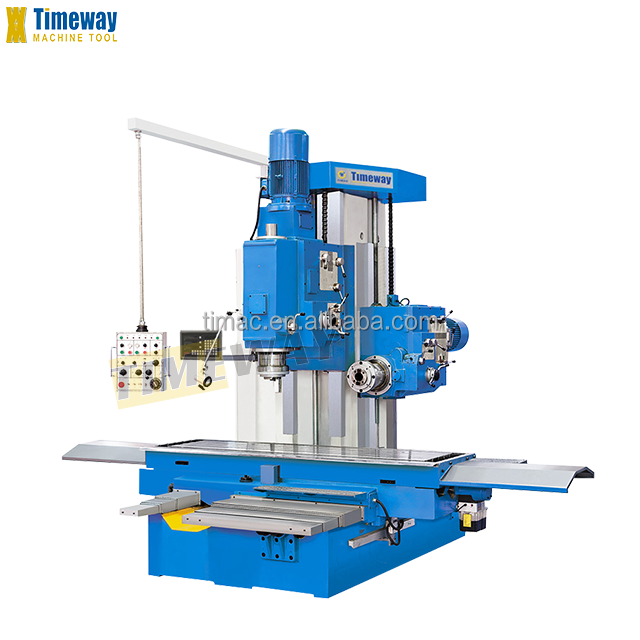

Professional Large-Sized Bed-Type Boring and Milling Machine for Your Business
Price:
$65,000.00/sets 1-1 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description
The machine is applied to milling bigger workpiece and semi-finish machining, the machine can process the plane (horizontal plane, vertical plane), slot (key slot, T-slot, dovetail slot), boring hole and countersink of box and so on.
The machine has good rigidity, so it can heavily cut workpiece.
Power of main motor is high, and speed range of the motor is wide, which can exert the efficiency of tool, make high speed cutting.
To stick plastic on the interface of table and saddle, saddle and base, which improve the wear resistance and life of machine, reduce the friction factor.
Stability of machine is very good due to adopting rectangle guideway on the column and base.
One servo motor is installed in feed box, which controls X, Y, Z three-direction feed through three pieces of electromagnetic clutches.
Hydraulic pressure is adopted in X, Y, Z three-direction clampness.
The machine has good rigidity, so it can heavily cut workpiece.
Power of main motor is high, and speed range of the motor is wide, which can exert the efficiency of tool, make high speed cutting.
To stick plastic on the interface of table and saddle, saddle and base, which improve the wear resistance and life of machine, reduce the friction factor.
Stability of machine is very good due to adopting rectangle guideway on the column and base.
One servo motor is installed in feed box, which controls X, Y, Z three-direction feed through three pieces of electromagnetic clutches.
Hydraulic pressure is adopted in X, Y, Z three-direction clampness.
Specification | Unit | BM716A |
Table size | mm | 2400x650 |
Longitudinal travel of table | mm | 1630 |
Cross travel of table | mm | 550 |
Vertical travel of horizontal spindle | mm | 800 |
Vertical travel of vertical spindle | mm | 800 |
Min. distance between horizontal spindle and table surface | mm | 20 |
Min. distance between vertical spindle nose and table surface | mm | 20 |
T-slot of table (No. x width) | mm | 5x22 |
Taper of spindle (V/H Spindle) | - | ISO50 |
Stroke of spindle sleeve (V/H Spindle) | mm | 190 |
Spindle speed range (V/H Spindle) | rpm | 23-1000 |
Spindle speed steps | steps | 12 |
Longitudinal, cross feed range | - | Stepless |
Vertical feed range (V/H Spindle) | - | Stepless |
Longitudinal, cross rapid feed (V/H Spindle) | mm/min. | 2200 |
Vertical rapid feed (V/H Spindle) | mm/min. | 1100 |
Sleeve automatically feed speed steps | steps | 6 |
Sleeve automatically feed speed range (V/H Spindle) | mm/rev. | 0.05-0.4 |
Spindle motor power (V/H Spindle) | kw | 11 |
Feed motor power | kw | 4 |
Max. load on table | kg | 3000 |
Overall dimension (LxWxH) | mm | 4100x3700x4250 |
Net weight (approximate) | kg | 17000 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
