300mm Table Travel 3kW Spindle Motor Power Horizontal Knee-type Universal Milling Machine
Price:
$30,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description
*Large rectangular guide in the y- and z-axis guarantees an increase in stability.
*8 automatic table feeds and rapid feed in all axis, driven by servomotor.

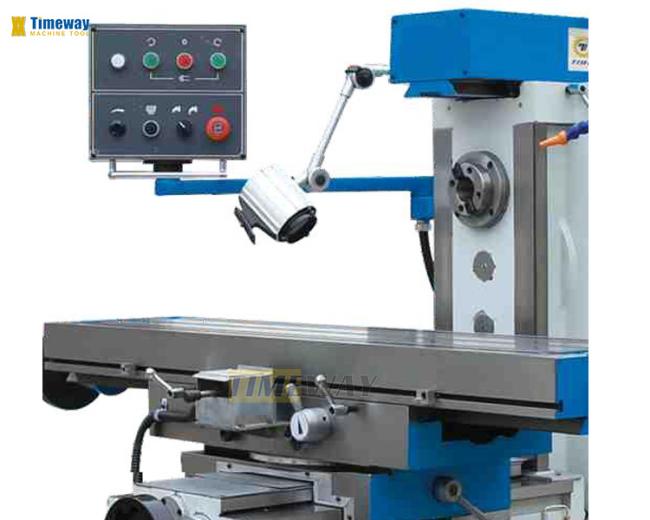

*Ergonomically mounted switches on swivelling control panel.
* Solid, grey cast iron machine construction eliminates vibrations.
* Polished gears, in oil bath, guarantees smooth running.
*Clearly arranged spindle speed control unit on machine arm.
* Digital readout for x-, y- and z-axis come optional.
*Table swivels ±45° for selection.
* Surface treated table features T-slots.
*Ergonomically mounted switches on swivelling control panel.
* Solid, grey cast iron machine construction eliminates vibrations.
* Polished gears, in oil bath, guarantees smooth running.
*Clearly arranged spindle speed control unit on machine arm.
* Digital readout for x-, y- and z-axis come optional.
*Table swivels ±45° for selection.
* Surface treated table features T-slots.
Specification | Unit | XQ6030 | XQ6030A |
Table size | mm | 1270x300 | 1370x300 |
T-slots(No./width/pitch) | mm | 3/14/80 | 3/14/80 |
Table travel(X/Y/Z) | mm | 720/300/400 | 820/300/400 |
Distance from spindle nose to table | mm | 65-465 | 65-465 |
Distance from spindle axis to ram | mm | 155 | 155 |
Ram travel | mm | 450 | 450 |
Spindle taper | - | 7: 24 ISO40 | 7: 24 ISO40 |
Spindle speed range | r/min | 35-1500 | 35-1500 |
Spindle speed steps | steps | 12 | 12 |
Table longitudinal feed speed (X) | mm/min | 30-830 | 30-830 |
Table cross feed speed (Y) | mm/min | 30-830 | 30-830 |
Table vertical feed speed (Z) | mm/min | 23-625 | 23-625 |
Feed speed steps (X/Y/Z) | steps | 8 1 | 8 1 |
Table rapid feed speed(X/Y/Z) | mm/min | 335/1335/1000 | 335/1335/1000 |
Main motor | kw | 3 1 | 3 1 |
Servo feed motor torque | Nm | 0 | 0 |
Overall dimensions(Lx WxH) | mm | 1720x1680x1730 | 1820x1680x1730 |
Machine weight | kg | 1500 | 1550 |
· Draw bar · Horizontal mill arbor · Coolant system · Chip tray · Work lamp · Lubrication system ·Tools and Tool box ·Operator manual | · 2/3-axis digital readout · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
