650mm Swing Over Carriage AK-940B CNC Heavy Duty Horizontal Lathe For Your Business
Price:
$18,000.00/acres >=1 acres
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Timac
Product Description
Product Description
CNC Heavy Duty Horizontal Lathe
Features:
This bed is the box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, with stable performance; guide-way width (550mm), good rigidity, anti-vibration ability; processed by medium-frequency hardening and machined by the imported guideway grinding machine , to ensure a long service life, high precision and good maintainability. For 3000mm and below, the bed upside part and the legs are connected by screw; For 4000mm, 5000mm, 6000mm, the bed are one-piece type. For above 6000mm, the bed are two pieces butted.
This bed is the box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after the second aging treatment, with stable performance; guide-way width (550mm), good rigidity, anti-vibration ability; processed by medium-frequency hardening and machined by the imported guideway grinding machine , to ensure a long service life, high precision and good maintainability. For 3000mm and below, the bed upside part and the legs are connected by screw; For 4000mm, 5000mm, 6000mm, the bed are one-piece type. For above 6000mm, the bed are two pieces butted.
Specification
Specifications | Unit | AK-940B |
Swing over bed | mm | 940 |
Swing over carriage | mm | 650 |
Max. length of workpiece | mm | 5000 |
Max. turning length | mm | 4850 |
Span of guideway | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | mm | C11 |
Spindle bore | mm | 100 |
Taper hole of spindle | - | Metric 120 |
Spindle speed (Manual steps) | rpm | 6-800 (12) |
Accessories
Standard accessories:
√ FANUC/GSK/SIEMENS CNC system
√ 3-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
_ 4-jaw chuck _ Steady rest
_ Follow rest
_ Hydraulic chuck
_ Penumatic chuck
_ Hydraulic tailstock
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard
_ Follow rest
_ Hydraulic chuck
_ Penumatic chuck
_ Hydraulic tailstock
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard
Machine Details
Packing & Delivery

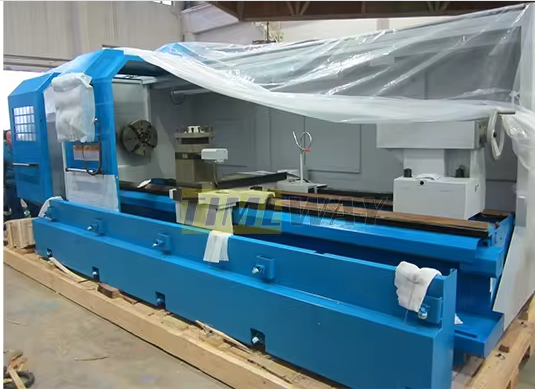

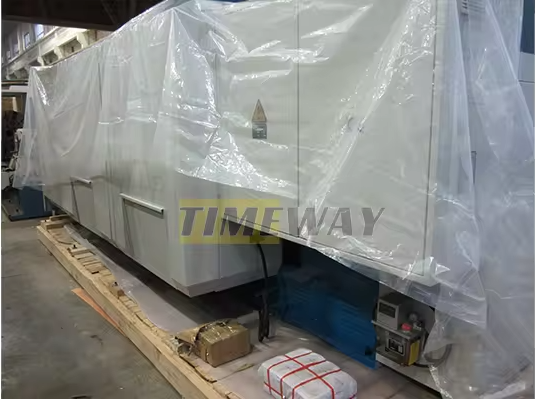

This is the picture of the packaging the machine in our factory!
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
