The full-function CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, slotted, chamfering, drilling, reaming, especially for multi-species, a small batch of turning processing. Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency
requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment.
Machinery Repair Shops Slant Lathe Machine with 62mm Spindle Bore and Hydraulic Tailstock
Price:
$30,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
timeway
Product Description
Products Description

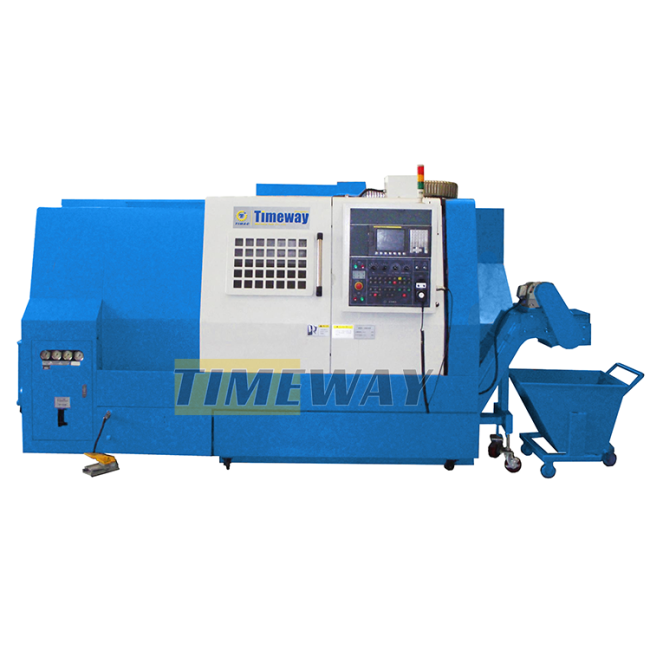

Slant bed CNC lathe
Feature:
Technical Parameter
Specifications | Unit | AK-15 | AK-25 |
Swing over bed | mm | 440 | 520 |
Max. dia. cutting | mm | 300 | 420 |
Max. length of workpiece | mm | 600 | 625/1000/1500 /2000/3000 |
Max. turning length | mm | 450 | 530/905/1405 /1905/2905 |
X-axis travel | mm | 180 | 230 |
Z-axis travel | mm | 480 | 590/965/1465/1965/2965 |
Rapid travel of X | m/min | 20 | 12 |
Rapid travel of Z | m/min | 24 | 15 |
X/Z feed speed | mm/min | 1260 | 1260 |
Spindle speed | rpm | 50-4500 | 35-3500 |
Spindle power | kw | 11/9 | 18.5/15 |
Spindle nose | - | A2-6 | A2-8 |
Spindle bore (Dia.) | mm | 62 | 87 |
Size of chuck | inch | 8 | 10 |
Front bearing dia. | mm | 100 | 130 |
No. of stations | - | 8 | 12 |
Indexing time | s | 0.72 | 0.3 |
Size of turret | mm | 25x25 | 25x25 |
Dia. of bar shank | mm | 40 | 40 |
Max. travel | mm | 460 | 490/865/1365/1865/2865 |
Quill Dia. | mm | 80 | 85 |
Quill taper hole | - | MT4 | MT5 |
Quill travel | mm | 130 | 80 |
CNC System | - | FANUC | FANUC |
Main power | kw | 25 | 30 |
Weight | t | 4.5 | 5/5.5/6.5/7.5/8.5 |
Length | mm | 2270 | 3000/3380/4550/4960/6160 |
Width | mm | 1470 | 1545 |
Height | mm | 1650 | 1950 |
Accuracy/roughness | µm | IT6/Ra0.8 | IT6/Ra0.8 |
Accessories
Standard accessories: Optional accessories:
FANUC CNC system Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
