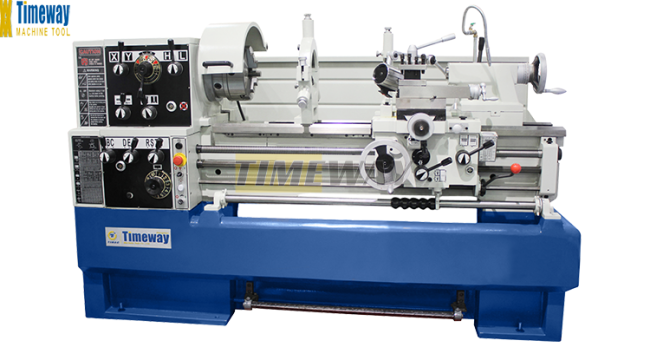

Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops

Name: Full Cast Iron Bed CL 510 Gap-Bed Lathe The Ideal Tool for Machinery Repair Shops
Brand: Zhengzhou Timeway Machine Tool Co., Ltd.

Price Negotiable

Price: $15,000.00/sets 1-2 sets

MOQ: 1 set

Delivery Time: Negotiable

Brand: Timeway

Product Description

Products Description

Specification	Unit	CL-510	CL-560
Max. swing over bed	mm	510	560
Max. swing over cross slide	mm	305	355
Max. swing over gap	mm	735	785
Distance between centers	mm	1000/1500/ 2000/3000	1000/1500/ 2000/3000
Gap length	mm	170	170
Bed width	mm	350	350
Spindle nose	-	D1-8	D1-8
Spindle bore	mm	80	80
Spindle taper	-	MT7	MT7
Spindle speed range (steps)	rpm	25-2000 (12)	25-2000 (12)
Top slide travel	mm	130	130
Cross slide travel	mm	316	316
Tool section size	mm	25x25	25x25
Leadscrew	-	40x4T.P.I or pitch 6mm	40x4T.P.I or pitch 6mm
Longitudinal feed range	mm/rev	0.059-1.646 (32)	0.059-1.646 (32)
Cross feed range	mm/rev	0.02-0.573 (42)	0.02-0.573 (42)
Metric threads range (kinds)	mm	0.2-14 (47)	0.2-14 (47)
Inch threads range (kinds)	TPI	2-112 (60)	2-112 (60)
Diametrical threads range (kinds)	DP	4-112 (50)	4-112 (50)
Module threads range (kinds)	MP	0.1-7 (34)	0.1-7 (34)
Tailstock quill diameter	mm	75	75
Tailstock quill travel	mm	180	180
Tailstock quill taper	-	MT5	MT5
Main motor power	kw	7.5	7.5
Coolant pump power	kw	0.1	0.1
Machine dimensions (LxWxH)	cm	239/284/334/434x115x143	239/284/334/434x115x146
Packing size (LxWxH)	cm	245/290/340/440x119x174	245/290/340/440x119x174
Net weight	kg	2070/2160/2435/2805	2195/2285/2560/2930
Gross weight	kg	2460/2550/2840/3270	2600/2690/2980/3410
Machine height	mm	1230	1270
Machine weight	kg	2050/2100/2300/2500/2900	2150/2200/2400/2600/3000

3-jaw chuck	Living center
4-jaw chuck	Taper turning attachment
Face plate	Drill chuck

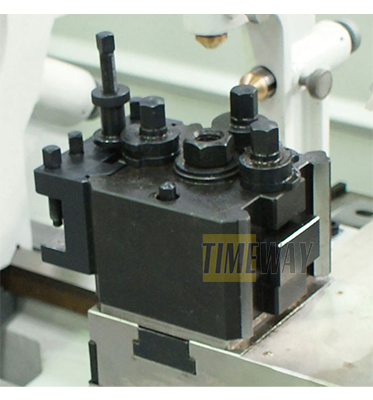

Dead centers	Quick change tool holder
Thread chasing dial	2/3 axis digital readout

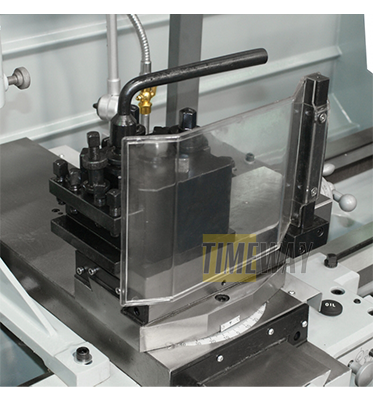

Splash guard	Chuck cover
Oil gun	Leadscrew cover
Work lamp	Tool post cover
Cooling system	Driving plate
Steady rest	Delta frequency inverter
Follow rest
Change gears
Reducing sleeve
Foot brake
Foundation bolts
Toolbox & tools
Operator manual

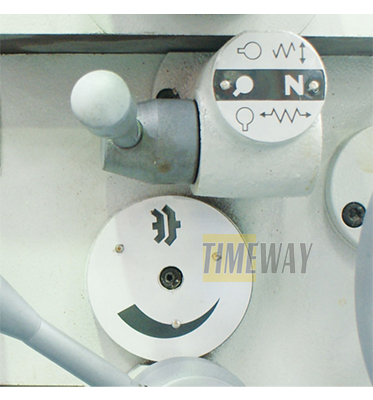

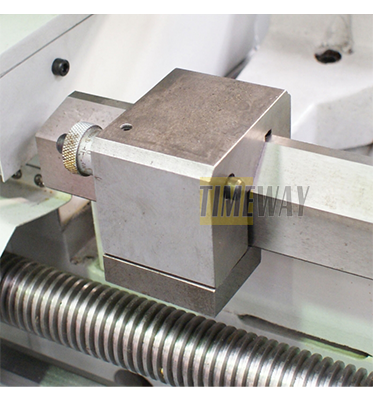

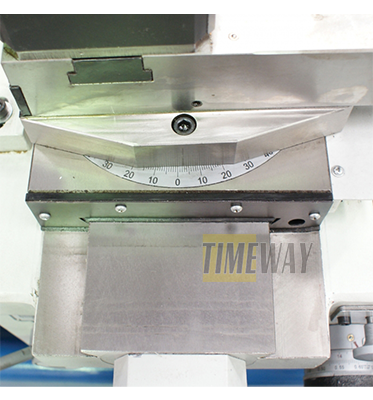

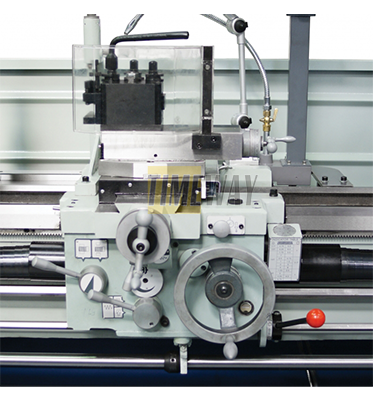

Machine Details

Why Choose Us

Renishaw laser interferometer (only for CNC horizontal lathe)：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
