Universal Milling Machine for Industry CNC Metal Vertical Milling Turret Light Duty
Price:
$12,600.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMEWAY TIMAC
Product Description
Products Description

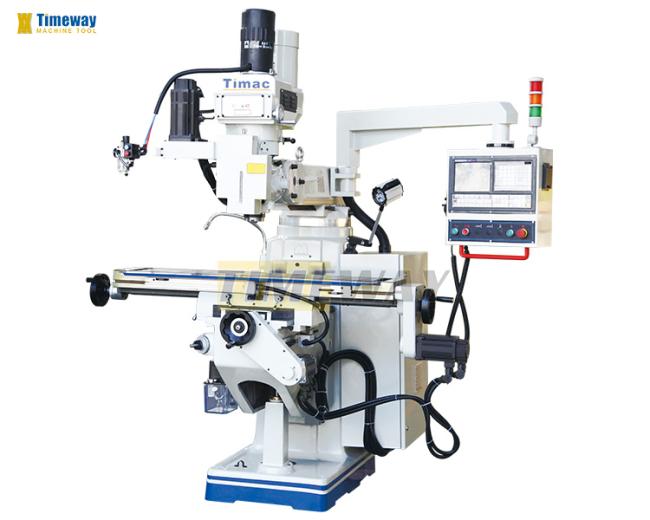

CNC turret milling machine
* These robust and stable universal milling machines are ideal for drilling and milling simple to difficult workpieces in single part production, repair shop, training etc.
* Base and column integrated casting, to gain better verticality and stability.
* The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness HRC45.
* The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
* T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision polished with high linear and orientation accuracy.
* Worktable features large clamping area, and expand the worktable size for customers to choose.
* For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
* All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.
* Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
* X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.
* X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
* Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
* Standard lubrication system for all guideways; Powerful coolant device included in machine base.
* Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional.
* Base and column integrated casting, to gain better verticality and stability.
* The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness HRC45.
* The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
* T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision polished with high linear and orientation accuracy.
* Worktable features large clamping area, and expand the worktable size for customers to choose.
* For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
* All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.
* Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
* X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.
* X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
* Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
* Standard lubrication system for all guideways; Powerful coolant device included in machine base.
* Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional.
Specification | Unit | KTM230 | KTM250 | |
Table size | mm | 230x1067/230x1246 | 254x1270/254x1370 | |
T-slot (No./width) | – | 3/16 | 3/16 | |
Loading capacity | kg | 200 | 280 | |
Longitudinal travel (X) | mm | 550/740 | 750/850 | |
Cross travel (Y) | mm | 300 | 400 | |
Spindle quill travel (Z) | mm | 103 | 103 | |
X/Y/Z-axis rapid feed speed | mm/min | 5000 | 5000 | |
X/Y/Z-axis servo motor power | kw | 1 | 1 | |
Knee vertical travel | mm | 350 | 400 | |
Ram travel | mm | 315 | 470 | |
Distance from spindle to table | mm | 0-350 | 0-400 | |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200 / KTM300: 60-3600) | ||
Spindle taper | – | R8 (Optional: ISO40) | R8 (Optional: ISO40) | |
Main motor power | kw | 2.2 | 2.2 | |
Mill head swivel angle | ° | ±90° | ±90° | |
Mill head tilting angle | ° | ±45° | ±45° | |
CNC controller | – | FANUC or SIEMENS or GSK | ||
Package size (LxWxH) | cm | 165 x 190 x 200 | 190x200x223 | |
Gross weight | kg | 1100 | 1400 | |
