Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Affordable Flat Bed CNC Lathe AK-2000H 130mm Spindle Bore and Professionally Made
Price:
$58,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMEWAY
Product Description
Products Description

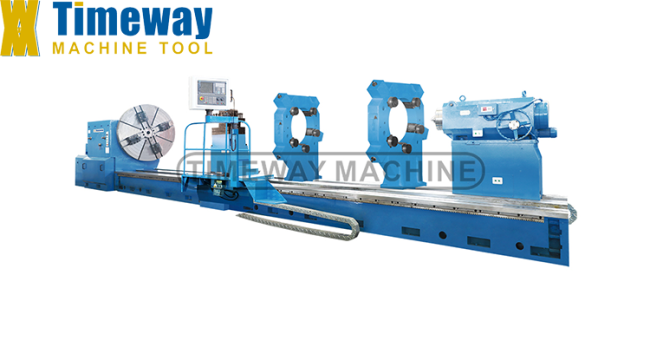

AK - 2000H
CNC Heavy Duty Horizontal Lathe:
Specification | Unit | AK-2000H |
Max. swing over bed | mm | 2000 |
Max.. swing over cross slide | mm | 1600 |
Distance between centers | mm | 4000-20000 |
Bed width | mm | 1600 (3 slideways ) |
Loading capaciity | tons | 32 |
Chuck diameter | mm | 1600/1800 |
Max. torque of chuck | KN.m | 80 |
Spindle taper angle | ° | 75° |
Spindle speed range | rpm | 0.8~160 (stepless) |
Range of cross feed | mm/min | 1-2000 |
Cross travel | mm | 725 |
Range of longitudinal feed | mm/min | 1-4000 |
Longitudinal travel | mm | 4000-20000 |
Tool-post working position | - | V4 |
Section of tool shank | mm | 70×70 |
Max. cutting force of too-post | KN | 80 |
Tailstock quill diameter | mm | 300 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | 100/1:7 |
Tailstock rapid feed speed | mm/min | 3000 |
Tailstock quill rapid feed speed | mm/min | 664 |
Main motor power | kw | 75 |
Rapid feed motor power | kw | 1.5 |
Machine dimensions (LxWxH) | mm | 15580x3500x2280 |
Machine weight | kg | 48000 |
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
