200mm Outer Diameter Grinding with High Precision Super Cylindrical Grinding Machine
Price:
$27,890.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Products Description

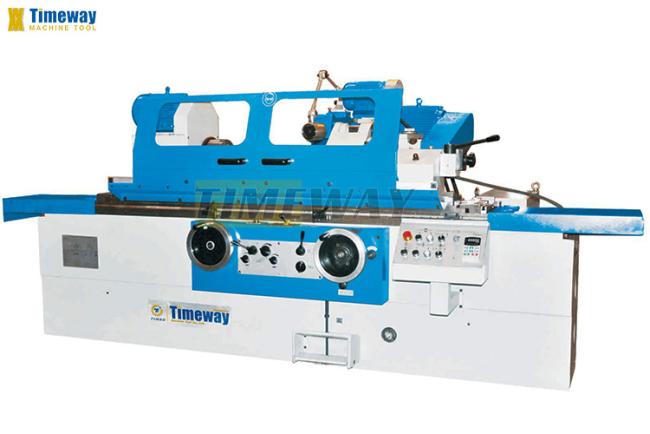

Cylindrical Grinding Machine G-200,UG-200
Specification | Unit | G-200 | UG-200 |
Distance between centers | mm | 500/750 | 500/750 |
Center height | mm | 135 | 135 |
Dia. ground (O.D) | mm | 8-200 | 8-200 |
Dia. ground (I.D) | mm | - | 25-100 |
Grinding length (O.D) | mm | 500/750 | 500/750 |
Grinding length (I.D) | mm | - | 125 |
Loading capacity | kg | 100 | 100 |
Workhead swivel angle | ° | - | ±90° |
Workhead spindle taper | - | MT4 | MT4 |
Workhead spindle speed | rpm | 26-260 (stepless) | 26-260 (stepless) |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.01/0.0025 | 0.01/0.0025 |
External grinding wheel size | mm | 500x50x203 | 400x50x203 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 |
Internal grinding spindle speed | rpm | - | 10000 |
Internal grinding wheel size | mm | - | 50x25x13 |
Table feed of handwheel per rev. | mm | 6 | 6 |
Table swivel angle (CW) | ° | 3° | 3° |
Table swivel angle (CCW) | ° | 9°/8° | 9°/8° |
Table longitudinal feed speed | m/min | 0.1-4 | 0.1-4 |
Tailstock quill taper | - | MT4 | MT4 |
Tailstock quill travel | mm | 30 | 30 |
External grinding motor power | kw | 5.5 | 4 |
Internal grinding motor power | kw | - | 1.1 |
Workhead motor power | kw | 1.1 | 1.1 |
Roundness | um | 2 | 2 |
Cylindricity | um | 5/8 | 5/8 |
Roughness | um | Ra0.2 | Ra0.2 |
Gross weight | kg | 4100/4300 | 4100/4300 |
Packing size (LxWxH) | cm | 235/275x203x205 | 235/275x203x205 |
* Measuring bridge plate * Open steady rest * Wheel flange * Wheel extractor * Balancing arbor * Grinding wheel * Coolant tank * Carbide tripped center * Driving dog * Wheel dresser (Without diamond pen) * Work lamp * Internal grinding attachment (UG) * 3-jaw chuck (UG) * Extension shaft (UG) * Internal grinding wheel (UG) * Full set tools * Leveling wedge Operation manual (English edition) | * Balancing stand * Digital readout * Close steady rest * End wheel dresser * Radius wheel dresser * Center grinding attachment (G) * Magnetic separator * Paper filter |

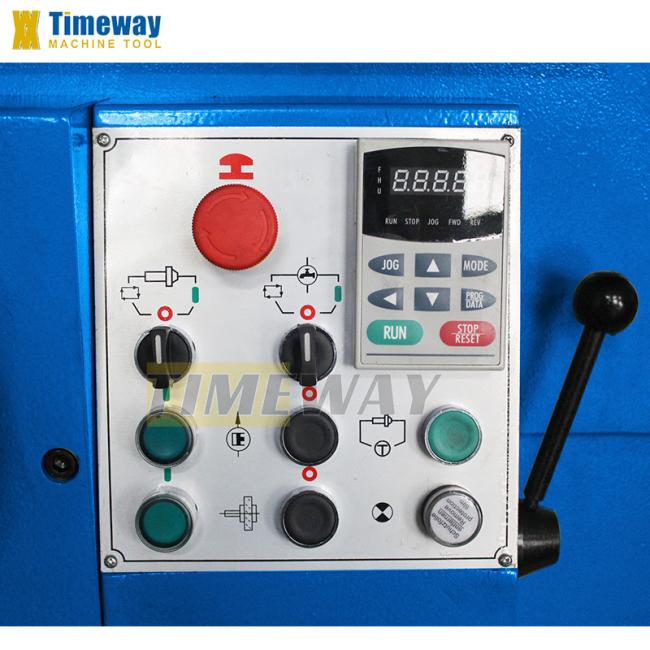

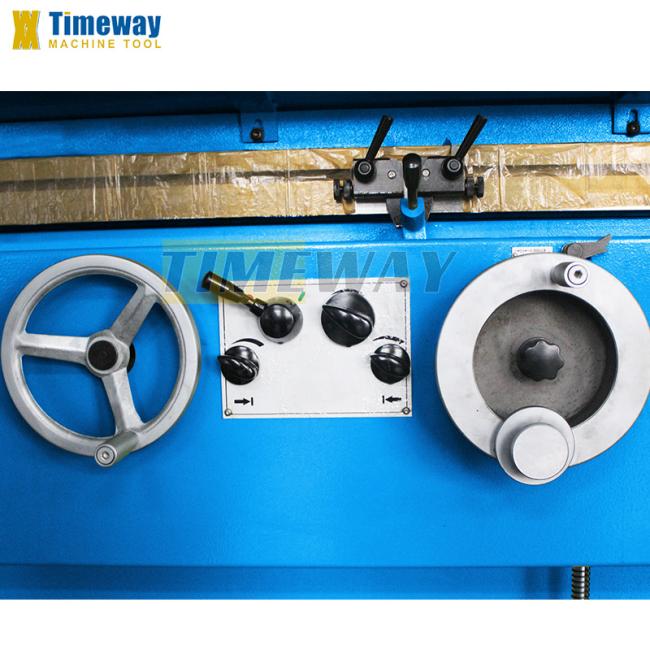

Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
