Diameter 80mm Cylindrical Grinder with Max. Grinding Length of 300mm and Power kW 2.34
Price:
$30,000.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TIMAC
Product Description
Small-type Cylindrical Grinding Machine(Universal Cylindrical Grinder)
G-80 UG-80

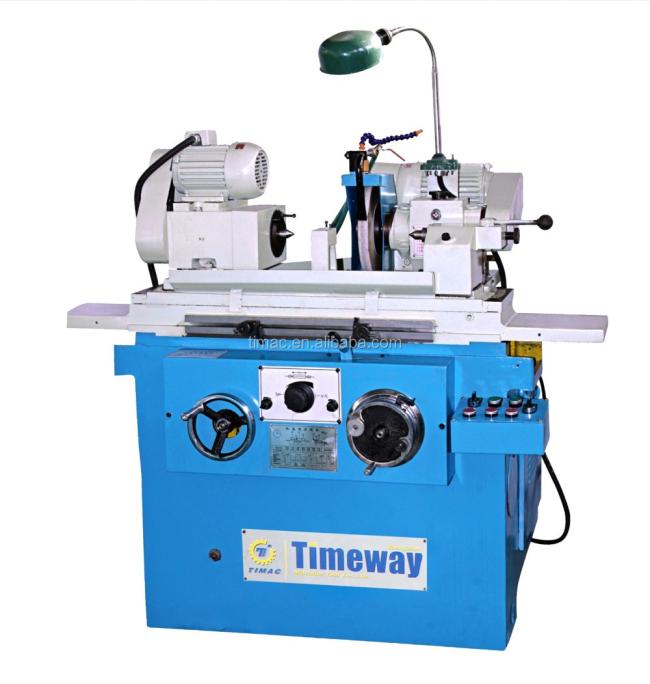

Main Outlook
Main Performances
Main Functions and Features
The universal cylindrical grinder is simple, fast processing speed, high precision, and low price; and there are two ways of transmission: hydraulic or manual; for precision machining of small pieces of the machinery industry.
Standard Accessories
- Coolant tank
- Wheel flanges
- Internal grinding
- Open type steady rest
- Support iron
- Quill shaft for internal grinding
- Grinding wheel dresser
- Wheel balancing mandrel
- Three jaw chuck
- Driving base
- Carbide-tipped center
Extra Accessories
- Wheel balancing
- Radius dresser
- Center rest close type
Specifications List
Technical Parameters
| Specifications | Unit | G-80 | UG-80 |
| Grinding dia.(O.D/I.D) | mm | Φ2-Φ80 | Φ2-Φ80/Φ10-Φ60 |
| Grinding length(O.D/I.D) | mm | 300 | 300/125 |
| Center height | mm | 115 | 115 |
| Max. workpiece weight | kg | 10 | 10 |
| Worktable speed | m/min | 0.1-4 | 0.1-4 |
| Wheel peripheral velocity | m/s | 35 | 35 |
| Max. travel of worktable | mm | 340 | 340 |
| Swivel range of worktable | ° | -3- +7 | -3- +7 |
| External wheel size | mm | Max:Φ250*25*Φ75; Min:Φ180*25*Φ75 | |
| Internal wheel spindle totating speed | rpm | - | 16000 |
| Workhead and tailstock center | Morse No.3 | Morse No.3 | |
| Roundness(O.D/I.D) | um | 1.5 | 1.5/2.5 |
| Uniformity of dia. in longitudinal section | um | 5 | 5/8 |
| Surface roughness(O.D/I.D) | um | Ra0.25 | Ra0.25/Ra0.63 |
| Overall dimensions(L*W*H) | mm | 1360*1240*1000 | 1360*1240*1000 |
| Machine weight | kg | 1500 | 1500 |
| Total motor power | kw | 2.34 | 2.34 |
Foundation Drawing
The foundation depth depends upon the soilproperties, but it should be less than 400mm.
